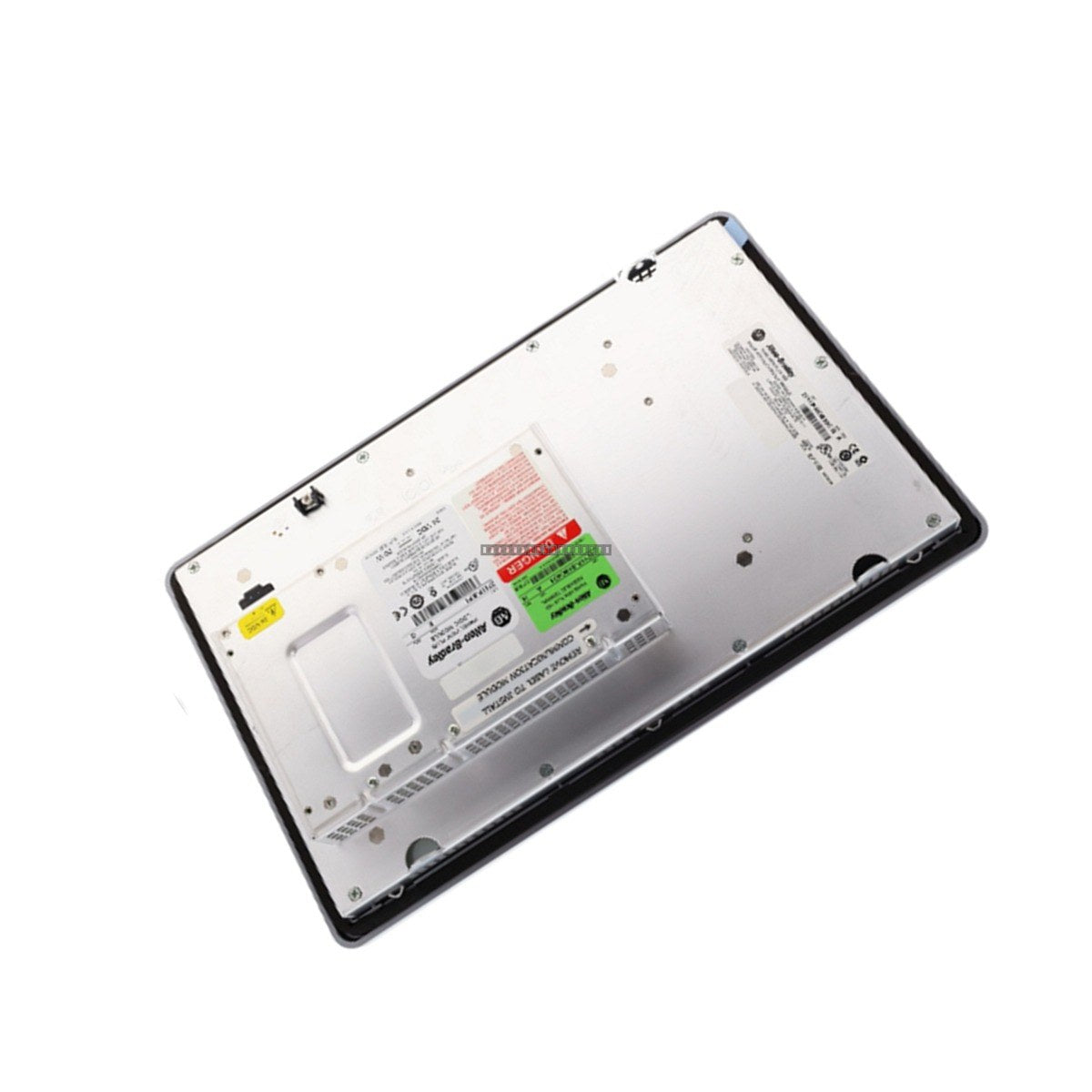

The 2711P-B12C15D7 is a high-performance PanelView Plus 1250 operator interface terminal, designed to provide robust visualization and control for industrial automation systems. Operating on a Windows CE platform with an Intel Celeron 650 MHz processor, this unit facilitates reliable interaction between operators and PLC-controlled machinery. It is suitable for diverse industrial environments, including automotive assembly, water treatment, and chemical processing, where deterministic communication and clear process monitoring are essential.
Features
-
Hybrid Input Interface: Combines a 12.1-inch analog resistive touchscreen with a 40-key stainless steel domed membrane keypad for versatile operation, even when wearing gloves.
-
Advanced Connectivity: Supports integrated ControlNet and Ethernet networking, alongside RS-232 serial communication for flexible integration into existing control architectures.
-
High-Visibility Display: Features an 18-bit color active-matrix TFT display with 800 x 600 resolution and a 300 cd/m2 luminance rating.
-
Reliable Memory: Equipped with 256 MB of Flash memory and 256 MB of RAM to handle complex HMI applications and data logging.
-
Industrial Durability: Rated for NEMA 12, 13, 4X, IP54, and IP65, ensuring protection against dust, water, and environmental contaminants.
Technical Specifications
| Model |
2711P-B12C15D7 |
| Display Size |
12.1 inches |
| Resolution |
800 x 600 pixels |
| Processor |
Intel Celeron 650 MHz |
| Memory |
256 MB Flash / 256 MB RAM |
| Input Voltage |
18-32 VDC (24 VDC nominal) |
| Power Consumption |
70 W max |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-25 to 70 deg C |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the integrity of the NEMA/IP enclosure rating.
- Use the provided mounting clips to secure the terminal firmly to the enclosure door.
- Verify that the power supply provides a stable 24 VDC nominal input within the 18-32 VDC range.
- Route communication cables (Ethernet/ControlNet) away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Ensure adequate ventilation around the rear of the unit to prevent overheating during continuous operation.
- Always power down the system before performing any wiring or maintenance on the terminal.
FAQ
Q: What operating system does this terminal use?
A: The 2711P-B12C15D7 runs on the Windows CE operating system.
Q: Can the backlight be replaced?
A: Yes, the unit features a field-replaceable backlight rated for approximately 50,000 hours of service life.
Q: What is the primary communication method for this model?
A: This unit supports ControlNet and Ethernet as its primary fieldbus communication protocols.
