DescriptionThe ABB 3BHE021889R0101 (UFC721 BE101) is an Analog to Digital Communication Variable Input (ADCVI) board designed for high-performance signal processing in industrial drive systems, specifically compatible with ABB ACS800 and ACS1000 series drives. This board facilitates the precise conversion of analog voltage signals into digital data, ensuring accurate control and monitoring within complex industrial environments.Features
ADCVI (Analog to Digital Communication Variable Input) circuit board
Designed for integration with ABB ACS800 and ACS1000 drive systems
High-resolution analog-to-digital signal processing
Integrated overvoltage, overcurrent, and short-circuit protection features
Supports precision motor control and monitoring
Applications
Marine and Offshore: Frequency converters for ship propeller control
Oil and Gas: Centrifugal compressors for pipeline and LNG applications
Rolling Mills: High-speed and high-torque motor management for steel and aluminum production
Pumped Storage Power Plants: Variable-speed motor generator grid balancing
Technical Specifications
Model
UF C721 BE101
Order Code
3BHE021889R0101
Supply Voltage
24 VDC +/- 10%
Voltage Input Range
+/- 10 V
Current Input Range
4-20 mA
ADC Resolution
12-bit or higher
Sampling Rate
Up to 10 kHz per channel
Voltage Impedance
>1 MΩ
Current Impedance
250 Ω
Power Consumption
<15 W
Installation Guidelines
Ensure the drive system is fully powered down and locked out before attempting to install or remove the ADCVI board.
Handle the PCB using standard ESD (Electrostatic Discharge) precautions to prevent damage to sensitive components.
Verify that the board is securely seated in the designated drive slot and that all connectors are properly aligned.
For ACS1000 systems, note that this board is a legacy component; consider upgrading to the CVMI2b module as recommended by the manufacturer for long-term support.
Ensure proper grounding of the drive chassis to minimize EMI interference with analog signal processing.
FAQWhat is the primary function of the 3BHE021889R0101 board?It is an Analog to Digital Communication Variable Input (ADCVI) board used to convert analog signals into digital data for precise control in ABB drive systems.Is this board compatible with all ABB drives?No, it is specifically designed for use in ABB ACS800 and ACS1000 drive systems. Please verify your drive model compatibility before installation.What should I do if this part is unavailable?For ACS1000 systems, the manufacturer recommends upgrading to the CVMI2b module. Consult the latest ABB technical documentation for specific upgrade kits (e.g., 3BHB040806R0001 for ACS1000A).
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB Bailey 6632094A1 is a high-performance circuit board designed for integration within industrial control systems. This PC board serves as a core processing or I/O interface component, utilizing a 20 MHz NEC V30H 16-bit processor to manage control logic and data processing tasks. It is equipped with 2 MB of memory dedicated to firmware storage, ensuring reliable execution of system-specific operations.Features
Integrated 20 MHz NEC V30H 16-bit microprocessor.
2 MB onboard memory for firmware storage.
Designed for high-reliability industrial control environments.
Supports a wide range of digital and analog I/O configurations.
Technical Specifications
Product Model
6632094A1
Manufacturer
ABB
Processor
20 MHz NEC V30H (16-bit)
Firmware Memory
2 MB
Rack Supply Voltage
+5 V dc +/- 5%
Field Power
+24 V dc +/- 10%
Digital Inputs
16 channels, 24 V dc
Digital Outputs
8 relay outputs
Analog Outputs
4 single-ended
Operating Temperature
-20 degC to +70 degC
Storage Temperature
-40 degC to +85 degC
Installation Guidelines
Ensure the system power is completely disconnected before installing or removing the circuit board to prevent electrical damage.
Handle the PCB using proper ESD (Electrostatic Discharge) mitigation techniques, such as wearing a grounded wrist strap.
Verify that the rack supply voltage is stable at +5 V dc +/- 5% before powering up the module.
Ensure all field wiring for the 24 V dc inputs and relay outputs is properly routed and secured to prevent mechanical stress on the board connectors.
Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified -20 degC to +70 degC range.
FAQWhat is the primary function of the 6632094A1 circuit board?The 6632094A1 is a specialized circuit board used in ABB Bailey control systems, functioning as a processor and I/O interface module to handle digital and analog signals within the automation architecture.What are the power requirements for this module?The module requires a +5 V dc supply for internal logic and a +24 V dc supply for field-side I/O operations.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
DescriptionThe ABB CI854AK01 (3BSE030220R1) is a high-performance communication interface module designed for the Advant AC 800M control system. This module serves as a PROFIBUS DP-V1 master, enabling seamless integration between the controller and various field devices such as sensors, actuators, and drives. It facilitates reliable, high-speed data exchange within industrial automation environments, supporting complex process control applications.Features
Supports PROFIBUS DP-V1 communication standards for advanced diagnostics and acyclic data exchange.
Flexible data transfer rates ranging from 9.6 kbps up to 12 Mbps.
Integrated design for the AC 800M controller series, ensuring robust system compatibility.
Low power consumption profile of 1.5 W.
Galvanic isolation of 1500V AC to protect internal circuitry from electrical transients.
ApplicationsThis module is primarily utilized in large-scale industrial process control systems, including power generation, chemical processing, and water treatment facilities. It is ideal for applications requiring high-speed fieldbus communication and integration of intelligent field instrumentation using the PROFIBUS protocol.Technical Specifications
Parameter
Specification
Product Model
CI854AK01 (3BSE030220R1)
Communication Protocol
PROFIBUS DP-V1
Data Transfer Rate
9.6 kbps to 12 Mbps
Power Input
24V DC
Power Consumption
1.5 W
Isolation
1500V AC
Operating Temperature
0 degC to +60 degC
Relative Humidity
5-95% (non-condensing)
Installation Guidelines
Ensure the AC 800M controller is powered down before installing or removing the CI854AK01 module.
Mount the module securely onto the designated I/O rack slot to ensure proper backplane connection.
Use shielded twisted-pair cabling for PROFIBUS connections to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the communication shield to ensure signal integrity.
Verify that the operating environment remains within the specified temperature and humidity ranges to prevent premature component failure.
Handle with care using ESD-safe procedures to prevent damage to sensitive electronic components.
FAQIs the CI854AK01 still in production?No, this specific model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.What does the V1 in PROFIBUS DP-V1 signify?The V1 designation indicates support for acyclic data communication, which allows for advanced device configuration, parameterization, and diagnostic data retrieval beyond standard cyclic process data.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC612 Ethernet Communication Board
The ABB DSQC612 3HAC15639-1, also cataloged as the DSQC612 Ethernet Communication Board, provides network communication between an ABB robot controller and external automation devices. It handles Ethernet-based data transfer within compatible ABB IRC5 controller configurations.
Hardware Specifications
Parameter
Specification
Model
DSQC612
Full Part Number
3HAC15639-1
Brand
ABB
Product Type
Ethernet Communication Board
Function
Ethernet communication and controller interface
System Compatibility
ABB industrial robot controller systems, including compatible IRC5 configurations
Network Function
Controller-to-device Ethernet data communication
Communication Interface
Ethernet
Origin
Sweden
Weight
Approx. 1.35 kg
Installation
ABB controller cabinet / compatible controller hardware configuration
Industrial Network and Controller Interface
The DSQC612 operates as a communication interface within the ABB controller architecture. It transfers digital data between the robot controller and connected Ethernet devices.
The board should be installed in the controller hardware configuration specified for the applicable ABB robot system. Consequently, system configuration must match the board revision and controller generation before commissioning.
For Ethernet installations, maintain physical separation between communication wiring and high-current power conductors where practical. Also, terminate cable shields according to the cabinet grounding design and the applicable ABB installation documentation.
The supplied data identifies the DSQC612 as an Ethernet communication board but does not specify Ethernet speed, connector pin assignment, isolation voltage, backplane current, or firmware compatibility. Therefore, these values should be verified against the exact controller configuration before replacement or commissioning.
Frequently Asked Questions
Q: Can the DSQC612 be installed in any ABB IRC5 controller?A: No universal compatibility is established by the supplied data. Confirm the controller hardware configuration, board revision, and system documentation before installation.
Q: Does the supplied specification define the DSQC612 Ethernet communication speed?A: No. The supplied information identifies Ethernet communication functionality but does not provide a specific transmission rate.
Q: Does the supplied data define hot-swap operation?A: No. Hot-swap capability is not specified. Treat the board as a controller hardware component and follow the applicable ABB power-down and installation procedure.
Field Installation Guidelines
Verify the complete part number 3HAC15639-1 against the existing controller configuration before installation.
Power down and isolate the controller according to the applicable ABB maintenance procedure.
Install the board only in its designated controller position and secure the mounting hardware correctly.
Route Ethernet communication cables separately from high-current motor and power wiring where practical.
Maintain appropriate cable bend radius and prevent mechanical loading on board-mounted connectors.
Connect cable shields according to the controller cabinet grounding and EMC design.
Inspect connectors for contamination, damaged contacts, or mechanical deformation before energizing the system.
After installation, verify controller recognition, Ethernet link status, and configured network communication.
Do not assume firmware, Ethernet speed, hot-swap capability, or electrical isolation characteristics without confirming the applicable ABB documentation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC611 Contactor Unit
Configured for main power switching and contactor control in ABB robot controller power circuits, the ABB DSQC611 3HAC13389-2 (DSQC611 Contactor Unit) provides direct electrical switching within the controller architecture. The unit uses terminal and connector interfaces for integration with the associated power and safety circuits.
Hardware Specifications
Parameter
Specification
Model
DSQC611
Part Number
3HAC13389-2
Brand
ABB
Product Type
Contactor Unit
Application
ABB Robot Control Systems
Function
Main power switching and power distribution control
Interface
Screw terminal blocks and keyed connectors
Enclosure Material
Galvanized steel / industrial-grade housing
Origin
Sweden
Net Weight
Approx. 0.14 kg
Gross Weight
Approx. 0.34 kg
Operating Temp
0 deg C to +55 deg C
Storage Temp
-25 deg C to +70 deg C
Power Consumption
Not specified in supplied data
ABB Industrial Control and Power Switching
The DSQC611 performs an electrical switching function rather than processing fieldbus data or application logic. Therefore, installation focuses on correct contactor-circuit wiring, terminal identification, and controller power isolation.
ABB controller architectures can also incorporate backplane communication and deterministic industrial networks at the system level. However, the supplied data does not identify a specific backplane protocol or network interface for the DSQC611.
The galvanized steel housing provides mechanical protection for the installed contactor circuitry. Consequently, wiring should maintain adequate separation from unrelated high-energy conductors and follow the controller manufacturer's wiring arrangement.
Frequently Asked Questions (FAQ)
Q: Is the DSQC611 a programmable controller or I/O card?A: No. The DSQC611 is identified as a Contactor Unit for power switching and distribution functions within ABB robot control equipment.
Q: Does the supplied specification confirm hot-swap operation?A: No. The supplied data provides no hot-swap specification. The controller should therefore be fully de-energized before replacement.
Q: Does the DSQC611 have a specified power consumption value?A: No. The supplied technical information does not provide a power consumption or coil-current specification.
Field Installation Guidelines
Isolate the robot controller from all applicable power sources before installation or replacement.
Verify that stored electrical energy has discharged before accessing the contactor unit.
Identify each terminal and connector against the applicable ABB controller wiring documentation.
Route power conductors separately from low-level signal wiring where the controller installation requires separation.
Secure all screw terminals according to the applicable ABB tightening specification.
Inspect connectors for bent contacts, contamination, or mechanical damage before reconnection.
Maintain the original conductor routing and protective-earth arrangement after replacement.
Perform continuity and wiring checks before restoring controller power.
Confirm correct contactor operation through the controller's approved commissioning procedure.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB 3HAC14178-1 DSQC 609 Power Supply
Configured for DC power conversion and distribution within the OmniCore V400XT controller, the ABB 3HAC14178-1 (DSQC 609 Power Supply) provides the controller with its specified internal power source.
Hardware Specifications
Parameter
Specification
Model
3HAC14178-1
Spare Model
3HAC14178-1
ABB Type
DSQC 609
Product Type
Power Supply
Brand
ABB
Controller Family
OmniCore V400XT
Origin
Sweden
Weight
1.4 kg
Dimensions
36.3 x 18.8 x 3 cm estimated shipping size
Tariff Code
8537101190
Spare-Part Level
L2
Installation Safety
Disconnect mains power and wait 3 minutes
ESD Control
ESD protective wrist band required
ABB Controller Power Supply Characteristics
The DSQC 609 functions as a dedicated power-supply assembly within the OmniCore V400XT controller architecture. It supports the controller's internal electrical power distribution according to the installed system configuration.
The supplied documentation identifies 3HAC14178-1 as a DSQC 609 power supply and classifies the component at spare-part level L2. Therefore, technicians should verify the complete ordering number and controller configuration before replacement.
ABB controller assemblies also require compatibility with the associated backplane and system hardware. However, the supplied data does not specify input voltage, output voltage, rated current, efficiency, or power dissipation. These values should therefore be taken from the applicable ABB technical documentation rather than estimated.
Frequently Asked Questions
Q: Can the DSQC 609 be replaced while the OmniCore V400XT controller remains energized?A: No. The supplied installation instruction requires mains power disconnection before replacement, followed by a 3-minute waiting period.
Q: Does the supplied data specify the DSQC 609 output voltage or rated current?A: No. The provided specifications do not state output voltage, output current, power rating, or power consumption.
Q: Is ESD protection required during DSQC 609 replacement?A: Yes. The supplied installation data specifies the use of an ESD protective wrist band.
Field Installation Guidelines
Isolate and disconnect the controller from mains power before accessing the power-supply assembly.
Wait at least 3 minutes before beginning physical removal or installation.
Wear an ESD protective wrist band and use appropriate ESD handling procedures.
Confirm the installed component marking and complete order number before replacement.
Inspect connectors, mounting points, and mating interfaces for contamination or mechanical damage.
Route internal wiring according to the original controller arrangement and avoid unnecessary cable stress.
After installation, verify connector engagement and mechanical seating before restoring power.
Recommission the controller according to the applicable ABB Robotics service procedure for the installed OmniCore V400XT configuration.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC541 3HAC14363-1 Backplane Controller Card
The ABB DSQC541 3HAC14363-1, also cataloged as the DSQC541 Backplane Controller Card, operates as a dedicated hardware component for backplane communication management within ABB robot controller platforms. It handles controller rack data exchange, power distribution monitoring, and internal module communication functions.
Hardware Specifications
Parameter
Specification
Model
DSQC541 3HAC14363-1
Brand
ABB
Product Type
Backplane Controller Card
Origin
Sweden
Weight
0.4 kg
Dimensions
18.6 cm x 6.1 cm x 6 cm
Operating Temp
0 deg C to 55 deg C
Storage Temp
-20 deg C to +70 deg C
Power Consumption
24 VDC, 0.5 A to 1 A
Communication Data Rate
10 Mbps and 100 Mbps
Humidity Range
5% to 95% non-condensing
ABB Backplane Bus Communication and I/O Architecture
The ABB DSQC541 3HAC14363-1 uses backplane bus communication principles to coordinate data exchange between controller modules. The card manages internal communication paths and supports industrial controller architectures requiring stable module synchronization.
Furthermore, the module supports communication speeds of 10 Mbps and 100 Mbps, allowing connected controller units to exchange operational data through the internal backplane network. Its 24 VDC power input and controlled current consumption support ABB robot controller cabinet integration.
The DSQC541 design follows ABB industrial control hardware practices, including firmware compatibility considerations, controller module addressing, and I/O density scaling within robot automation systems.
Frequently Asked Questions
Q: What is the main function of the ABB DSQC541 3HAC14363-1?A: The DSQC541 3HAC14363-1 functions as a backplane controller card that manages internal communication between ABB controller modules and coordinates backplane data exchange.
Q: What power supply does the DSQC541 require?A: The module requires a 24 VDC power supply and consumes approximately 0.5 A to 1 A during operation.
Q: What environmental conditions support DSQC541 installation?A: The module operates within 0 deg C to 55 deg C and supports 5% to 95% non-condensing humidity conditions.
Field Installation Guidelines
Install the ABB DSQC541 3HAC14363-1 inside the designated controller rack position according to ABB cabinet configuration requirements.
Before installation, verify that the power supply is disconnected and confirm the correct backplane slot assignment. Ensure that connector contacts remain clean and properly aligned during insertion.
Use appropriate industrial wiring practices. Keep communication cables separated from high-voltage power lines to reduce electromagnetic interference. Connect cabinet grounding according to standard industrial control panel requirements.
After installation, verify the 24 VDC supply level, module seating condition, and controller communication status before returning the system to operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC 532A 3HAC18158-1 Control Card
Configured for control signal processing and serial communication tasks in ABB robot controller platforms, the ABB DSQC 532A 3HAC18158-1 (DSQC 532A Control Card) provides direct physical and electrical execution within the controller hardware architecture.
Hardware Specifications
Parameter
Specification
Model
DSQC 532A 3HAC18158-1
Brand
ABB
Product Type
Control Card
Origin
Sweden
Weight
0.98 kg
Dimensions
33.5 cm x 18.5 cm x 12.5 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-25 deg C to +70 deg C
Humidity
5% to 95% RH, non-condensing
Operating Voltage
24 VDC
Serial Interface
RS-232 / RS-485
Tariff Code
8537101190
ABB Industrial Control Architecture and Communication Characteristics
The ABB DSQC 532A 3HAC18158-1 operates as a controller interface component within ABB robotic control systems. It manages electrical signal exchange and internal control communication between connected hardware assemblies.
Furthermore, ABB controller architectures use dedicated backplane communication paths to maintain deterministic data exchange between control modules. The DSQC 532A supports serial communication functions through RS-232 and RS-485 interfaces for external device connection and service communication.
The module design follows ABB industrial control hardware requirements, including I/O density scaling, firmware compatibility management, and structured controller integration. Proper configuration ensures stable communication between the control card and associated robot controller components.
Frequently Asked Questions
Q: What power supply does the ABB DSQC 532A 3HAC18158-1 require?A: The module operates with a 24 VDC supply input according to the available technical specifications.
Q: Which serial communication interfaces are supported by the DSQC 532A Control Card?A: The control card supports RS-232 and RS-485 serial communication interfaces for connected industrial devices and controller communication functions.
Q: Can the DSQC 532A be installed in any ABB controller system?A: The module requires compatibility with the designated ABB controller hardware architecture, firmware environment, and mechanical mounting configuration.
Field Installation Guidelines
Verify the controller power supply is disconnected before installing or removing the DSQC 532A module.
Confirm connector orientation and mechanical alignment before insertion into the controller rack.
Maintain proper cable routing to reduce electromagnetic interference on serial communication lines.
Connect cable shields according to ABB grounding practices and industrial cabinet wiring standards.
Avoid routing communication cables parallel to high-current motor power cables.
Check firmware and controller configuration compatibility before commissioning.
Inspect terminal connections and module status indicators after installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC503A 3HAC18159-1 Axis Computer Board
The ABB DSQC503A 3HAC18159-1, also cataloged as the DSQC503A Axis Computer Board, operates as a dedicated hardware component for axis control processing and motion data execution within ABB robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC503A 3HAC18159-1
Brand
ABB
Product Type
Axis Computer Board
Origin
Sweden
Weight
0.9 kg
Dimensions
21.0 cm x 20.3 cm x 2.5 cm
Operating Temp
0 deg C to 50 deg C
Storage Temp
-20 deg C to 70 deg C
Power Supply
24 VDC
Power Consumption
Typically 15-30 W
Current Rating
Approximately 1 A at 24 VDC
Humidity
Up to 95% RH, non-condensing
Tariff Code
8537101190
ABB Industrial Motion Control Interface Characteristics
The ABB DSQC503A Axis Computer Board manages axis-related computing tasks inside ABB robot controller architectures. It processes motion commands, exchanges control data through the controller backplane, and coordinates axis feedback signals with servo control functions.
Furthermore, the board supports ABB industrial control architectures through dedicated firmware compatibility and backplane communication functions. Its design follows ABB controller hardware standards for I/O density scaling, deterministic data exchange, and coordinated multi-axis motion execution.
The DSQC503A supports firmware-based control logic execution and maintains communication synchronization between axis processing functions and the main robot controller system. Proper firmware compatibility verification is required before replacement or system upgrades.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC503A 3HAC18159-1 board?A: The DSQC503A functions as an Axis Computer Board that performs axis control processing, motion data handling, and communication tasks within ABB robot controller systems.
Q: Does the DSQC503A require a specific power input configuration?A: The board operates with a typical 24 VDC supply input. Installation should follow the original ABB controller power distribution and grounding requirements.
Q: Can the DSQC503A be replaced without firmware verification?A: No. Firmware compatibility and controller configuration must be checked before installation to ensure correct axis communication and system operation.
Field Installation Guidelines
Verify the controller power supply is disconnected before removing or installing the DSQC503A board.
Confirm the board connector alignment before insertion to prevent mechanical or electrical damage.
Maintain proper grounding between the controller chassis and the installed module.
Keep signal wiring separated from high-current power cables to reduce electromagnetic interference.
Inspect backplane connectors for contamination, oxidation, or mechanical damage before installation.
Follow ABB controller service procedures when performing firmware compatibility checks or board replacement.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC431 LVMC MDU
The ABB DSQC431 3HAC036260-001, also cataloged as the DSQC431 LVMC MDU, operates as a dedicated hardware component for motor drive execution and power control within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC431
Brand
ABB
Product Type
LVMC MDU / Motor Drive Unit Module
Part Number
3HAC036260-001
System Compatibility
ABB IRC5 Robot Controller
Origin
Sweden
Weight
Approx. 0.65 kg
Power Consumption
System dependent, based on robot controller drive configuration
Primary Function
Servo motor power control, drive signal processing, and axis motion execution
Application Interface
ABB robot motion control architecture
Industrial Drive Communication and Control Characteristics
The ABB DSQC431 LVMC MDU operates within the ABB IRC5 drive architecture to manage motor control signals and power conversion paths. It processes drive commands from the robot controller and transfers controlled electrical power to servo motors for axis movement.
Furthermore, the module integrates with ABB industrial control hardware through the controller backplane communication structure. The unit supports deterministic motion execution requirements by maintaining coordinated communication between controller processors, drive electronics, and robot axis motors.
The DSQC431 follows ABB industrial drive module design principles, including firmware flash compatibility considerations and hardware revision matching during replacement procedures. Proper module identification ensures compatibility with the installed IRC5 controller configuration.
Frequently Asked Questions
Q: Is the ABB DSQC431 3HAC036260-001 compatible with all ABB IRC5 controllers?A: The DSQC431 is designed for ABB IRC5 controller systems. Compatibility depends on the installed controller hardware configuration, firmware revision, and drive system arrangement.
Q: Does the DSQC431 support direct motor connection without controller configuration?A: No. The module requires integration with the ABB IRC5 controller drive architecture. Motor parameters, controller settings, and hardware configuration must match the installed robot system.
Q: What should be checked before replacing a DSQC431 module?A: Verify the part number, hardware revision, connector arrangement, and controller configuration before installation. The replacement procedure should follow ABB service documentation and electrical safety requirements.
Field Installation Guidelines
Confirm that the robot controller power supply is fully isolated before removing or installing the DSQC431 module.
Verify all electrical connectors, locking mechanisms, and mounting points before energizing the system.
Maintain correct cable routing to prevent interference between motor power wiring and control signal wiring.
Check grounding connections according to ABB controller installation requirements to maintain electrical noise control.
Confirm firmware and hardware compatibility after replacement before restoring normal robot operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC373 Main Computer Board
The ABB 3HAC3180-1, also cataloged as the DSQC373 Main Computer Board, operates as a dedicated hardware component for CPU processing and control software execution within ABB S4C+ robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC373
Brand
ABB
Part Number
3HAC3180-1
Product Type
Main Computer Board / CPU Board
Controller Compatibility
ABB S4C+ Robot Controllers
Processor Architecture
Intel Pentium II based processing unit
Function
Executes robot control software, manages memory operations, and processes controller communication tasks
Communication Function
Coordinates internal controller data exchange and I/O signal processing
Origin
Sweden
Firmware Flash Compatibility and Controller Processing
The DSQC373 provides the processing platform for ABB S4C+ robot controller operations. It executes controller firmware, manages application memory, and coordinates communication between robot software functions and connected hardware modules. Additionally, the board supports the firmware environment required by S4C+ controller architecture.
ABB controller platforms use structured internal communication paths to maintain deterministic control behavior. Therefore, the DSQC373 manages data exchange between CPU functions, I/O handling processes, and motion control calculations through the controller backplane architecture.
Frequently Asked Questions
Q: Is the ABB DSQC373 hot-swappable during S4C+ controller operation?A: No. The DSQC373 is a CPU processing board and requires complete controller power shutdown before removal or installation. Follow ESD protection procedures during handling.
Q: Which ABB robot controller system uses the DSQC373 board?A: The DSQC373 with part number 3HAC3180-1 is designed for ABB S4C+ robot controller systems and operates as the main computer processing unit.
Q: Does the DSQC373 require firmware compatibility checks before replacement?A: Yes. The installed firmware version and controller configuration should be verified before replacing the CPU board to maintain system software compatibility.
Field Installation Guidelines
Disconnect the S4C+ controller power supply before accessing the internal electronics assembly.
Use approved ESD protection equipment when handling the DSQC373 circuit board to prevent component damage.
Verify connector alignment before inserting the board into the controller rack. Avoid applying mechanical force during installation.
Inspect the backplane connector contacts for contamination or oxidation before installation.
Route internal cables according to the original controller layout to prevent interference with signal processing circuits.
After installation, confirm firmware recognition, controller diagnostics, and communication status before returning the robot system to operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC355A Analog I/O Module
The ABB DSQC355A 3HNE00554-1, also cataloged as the DSQC355A Analog I/O Module, operates as a dedicated hardware component for analog signal acquisition and output execution within ABB S4/S4C robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC355A
Brand
ABB
Origin
Sweden
Operating Temp
Industrial environment range, exact value depends on controller installation requirements
Power Consumption
Supplied through ABB robot controller hardware architecture, exact value depends on system configuration
Product Type
Analog Input / Output Module
Part Number
3HNE00554-1
Signal Type
Analog voltage and current signals
Application
ABB S4/S4C robot control systems and industrial automation equipment
Interface Function
Converts external analog signals into controller-readable data and generates analog output commands
Compatibility
ABB legacy robot controller architectures
ABB Industrial Control and I/O Integration Characteristics
The ABB DSQC355A provides analog signal processing functions through the controller backplane architecture. It handles voltage and current based field signals for robot process control tasks, including sensor feedback acquisition and analog actuator command output.
The module integrates with ABB robot controller communication structures and supports deterministic data exchange between field devices and controller software. Therefore, correct hardware configuration and firmware compatibility verification are required before replacement or integration.
The DSQC355A follows ABB industrial control design principles, including backplane bus communication velocity management, I/O density scaling, and firmware flash compatibility within supported controller generations. These characteristics allow the module to maintain consistent analog data transfer performance in legacy automation installations.
Frequently Asked Questions
Q: Does the ABB DSQC355A support direct digital signal connection?A: No. The DSQC355A is designed for analog signal processing. Digital field devices require compatible digital I/O modules.
Q: Can the DSQC355A operate independently without an ABB robot controller?A: No. The module requires integration with the supported ABB controller architecture and associated system configuration.
Q: Are voltage and current input ranges fixed for all DSQC355A versions?A: Exact electrical ranges depend on the hardware revision and ABB controller documentation. Verify the complete part number before installation.
Field Installation Guidelines
Install the DSQC355A only in the designated ABB controller rack position defined by the system hardware manual.
Verify connector alignment and module seating before applying controller power.
Use shielded cables for analog signal wiring to reduce electromagnetic interference.
Connect cable shields according to ABB grounding recommendations and avoid parallel routing with high-power motor cables.
Confirm analog channel configuration through the robot controller software before commissioning.
Inspect field wiring polarity and signal reference connections before enabling process operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC352B Industrial Control and Communication Module
Configured for I/O signal handling and data communication in ABB robot controller systems, the ABB DSQC352B (DSQC352B Industrial Control and Communication Module) provides direct physical and electrical execution for distributed control functions.
Hardware Specifications
Parameter
Specification
Model
DSQC352B
Brand
ABB
Product Type
Industrial Control / Communication Module
Origin
Sweden
Weight
Approx. 0.12 kg to 0.2 kg
Dimensions
Approx. 96 mm x 96 mm x 43 mm
Operating Temp
-20 deg C to +60 deg C
Storage Temp
-40 deg C to +85 deg C
Power Consumption
24 VDC supply, application dependent
Operating Voltage
24 VDC
Communication Interface
RS485 / Profibus compatibility, system configuration dependent
Input Channels
8 inputs
Output Channels
8 to 16 outputs, configuration dependent
Channel Current Capacity
250 mA per channel
ABB Industrial Network and I/O Communication Characteristics
The DSQC352B operates within ABB robot control architectures by managing electrical I/O exchange and communication signals between controller hardware and external devices. The module supports ABB industrial control configurations where deterministic signal processing and controlled data transfer are required.
Furthermore, ABB controller modules use structured backplane communication methods to maintain coordinated data exchange between internal hardware assemblies. The DSQC352B supports I/O density scaling through channel expansion configurations, while firmware compatibility depends on the installed controller generation and system software revision.
The module design follows ABB industrial automation hardware practices, including controlled signal routing, field wiring separation, and communication interface management. Therefore, installation must match the applicable ABB controller hardware configuration and wiring documentation.
Frequently Asked Questions
Q: What type of signals does the ABB DSQC352B process?A: The DSQC352B processes industrial I/O signals through configured input and output channels. The exact signal assignment depends on the ABB robot controller configuration.
Q: Does the DSQC352B support direct connection to external field devices?A: The module can interface with external devices through configured I/O connections. Field device wiring must follow ABB controller electrical specifications and grounding requirements.
Q: Is firmware compatibility required when replacing a DSQC352B module?A: Yes. The replacement module should match the controller generation, hardware revision, and installed system software requirements.
Field Installation Guidelines
Install the DSQC352B inside the designated ABB controller cabinet or approved mounting location.
Verify the module identification label before connection to prevent hardware mismatch.
Use appropriate industrial wiring practices with separated power and signal cable routing.
Connect cable shields according to ABB grounding recommendations to reduce electromagnetic interference.
Confirm 24 VDC supply polarity before energizing the module.
Check communication wiring continuity and terminal assignments before system startup.
Perform I/O verification tests after installation to confirm correct channel operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC350B Safety Module
Configured for safety signal processing in ABB robot controller architectures, the ABB DSQC350B (DSQC350 Safety Module) provides direct physical and electrical execution for monitoring safety-related input and output circuits within ABB industrial robot systems.
Hardware Specifications
Parameter
Specification
Model
DSQC350B
Brand
ABB
Origin
Sweden
Weight
Approximately 1.43 kg
Product Category
Safety Module / Control Component
Primary Function
Safety signal processing and controller interface
Compatible Systems
ABB robot controller platforms including S4, S4C+, and IRC5 depending on hardware revision
Part Series
3HNE00025 series
Backplane Communication and Industrial Control Integration
The ABB DSQC350B integrates with ABB robot controller hardware through internal control interfaces to process safety-related signals. The module exchanges status information with the controller architecture and supports coordinated safety monitoring functions.
For ABB automation platforms, hardware modules require correct firmware and controller revision compatibility. Therefore, installation should verify the controller configuration, module revision, and system documentation before replacement.
The DSQC350B operates as part of an industrial control architecture where I/O density scaling and backplane communication velocity affect system response performance. Proper configuration maintains deterministic signal handling between safety circuits and controller processing units.
Frequently Asked Questions
Q: Is the ABB DSQC350B compatible with all ABB robot controllers?A: The DSQC350B compatibility depends on the controller generation and hardware revision. Verify the exact controller model and revision before installation.
Q: Does the DSQC350B support hot-swapping during robot operation?A: Hot-swapping capability depends on the ABB controller platform design. The system should be powered down unless the specific controller manual confirms online replacement support.
Q: What installation factors affect DSQC350B signal performance?A: Correct module seating, proper grounding, controlled cable routing, and verification of connected safety circuits affect signal integrity and system operation.
Field Installation Guidelines
Confirm the ABB controller model and hardware revision before mounting the DSQC350B module.
Disconnect system power before removing or installing the module unless ABB documentation specifies otherwise.
Ensure the module connector is fully seated in the controller rack or interface position.
Maintain separation between safety signal wiring and high-current power cables to reduce electrical interference.
Verify protective grounding connections according to the robot controller installation manual.
Check all connected safety circuits after installation and perform controller diagnostics before returning the robot system to service.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC350 Remote I/O Unit
The ABB DSQC350 3HNE00025-1, also cataloged as the DSQC350 Remote I/O Unit, operates as a dedicated hardware component for digital signal exchange between ABB S4 robot controllers and external field devices through remote I/O communication interfaces.
Hardware Specifications
Parameter
Specification
Model
DSQC350 3HNE00025-1
Brand
ABB
Origin
Sweden
Product Type
Remote I/O Unit / Communication Module
Weight
Approx. 0.2 kg
Dimensions
Approx. 13.0 cm x 1.9 cm x 19.1 cm
Compatible System
ABB S4 Robot Controller Platforms
Main Function
Remote digital signal interface and field device communication
Industrial Control Network Communication Characteristics
The ABB DSQC350 supports remote signal handling within ABB robot control architectures. It exchanges input and output data between the controller and connected field devices, including sensors, switches, and actuators.
In addition, the module operates as part of the ABB controller I/O structure, where backplane bus communication manages data transfer between internal control components. The design supports I/O density scaling by allowing distributed signal points to be positioned closer to machine equipment.
Furthermore, firmware flash compatibility depends on the installed ABB controller generation and hardware revision. System configuration files and controller software versions must match the installed DSQC350 hardware revision.
Frequently Asked Questions
Q: Is the ABB DSQC350 hot-swappable during robot controller operation?A: The DSQC350 should be installed or removed according to ABB controller maintenance procedures. Power isolation is recommended before hardware replacement because the module is integrated into the robot controller I/O system.
Q: What type of field signals can the DSQC350 process?A: The DSQC350 functions as a remote I/O interface. Signal capability depends on the connected I/O configuration, external terminal modules, and controller software settings.
Q: Does the DSQC350 require firmware matching with the robot controller?A: Yes. The installed hardware revision and controller software configuration must be compatible to ensure correct I/O communication and system recognition.
Field Installation Guidelines
Install the DSQC350 inside the designated ABB controller cabinet or approved mounting location.
Verify connector orientation before inserting the module into the controller assembly.
Use proper cable routing practices to separate signal wiring from high-voltage power conductors.
Connect cable shields according to ABB grounding recommendations to reduce electromagnetic interference.
Confirm controller configuration parameters after installation and verify I/O channel status before machine operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC346G Servo Drive Unit
Configured for servo motor control execution in ABB S4 robot controller systems, the ABB DSQC346G (3HAB8108-8) (DSQC346G Servo Drive Unit) provides direct power and control signal handling for robot axis motion circuits.
Hardware Specifications
Parameter
Specification
Model
DSQC346G (3HAB8108-8)
Brand
ABB
Origin
Sweden
Power Consumption
Determined by ABB S4 controller power distribution configuration
Product Type
Servo Drive Unit / Robot Control Component
Application
ABB Industrial Robot Controller Systems
Mounting Type
Internal rack or chassis mounting within controller cabinet
Controller Platform
ABB S4 Robot Controller Architecture
Electrical Function
Servo power regulation and axis motor control interface
Industrial Drive Communication and Control Characteristics
The DSQC346G belongs to the ABB industrial robot drive hardware family and interfaces with controller electronics to manage axis movement commands. The unit processes drive control signals and regulates power delivery between the robot controller and servo motors.
Furthermore, ABB drive architecture uses structured internal communication paths and controller backplane interfaces to coordinate motion commands, feedback processing, and axis synchronization. The DSQC346G supports integration with ABB robot control platforms where deterministic drive response and accurate position control are required.
The module follows ABB industrial control design principles, including firmware compatibility management, controller communication coordination, and I/O density scaling within the robot cabinet architecture. Proper integration depends on the installed controller generation and configured drive system.
Frequently Asked Questions
Q: Is the ABB DSQC346G a standalone servo controller?A: No. The DSQC346G functions as a servo drive hardware component inside ABB robot controller systems and requires compatible ABB controller electronics for operation.
Q: Can the DSQC346G be installed in any ABB robot controller?A: No. Installation compatibility depends on the controller architecture, drive configuration, and hardware revision specified by ABB.
Q: Does the DSQC346G require firmware matching with the controller system?A: Yes. The drive unit should operate with compatible ABB controller firmware and hardware configurations to ensure correct communication and motion execution.
Field Installation Guidelines
Install the DSQC346G inside the designated ABB controller cabinet rack position according to the controller hardware configuration.
Verify connector alignment and secure all power and signal connections before energizing the system.
Maintain proper cable routing between drive circuits and signal wiring to reduce electrical interference.
Connect grounding conductors according to ABB cabinet grounding practices and industrial electrical standards.
Inspect cooling airflow paths and cabinet ventilation before continuous robot operation.
Confirm controller diagnostics and drive status feedback after installation
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC346E Servo Drive
The ABB DSQC346E, also cataloged as the DSQC346E Servo Drive, provides direct physical and electrical execution for axis motion control within ABB industrial robot controller platforms. It regulates motor power conversion and feedback processing for servo axis operation.
Hardware Specifications
Parameter
Specification
Model
DSQC346E
Brand
ABB
Product Type
Servo Drive
Origin
Sweden
Weight
0.4 kg
Dimensions
18.6 x 6.1 x 6 cm
Operating Temp
0 deg C to +55 deg C
Storage Temp
-40 deg C to +85 deg C
Humidity
5-95% RH, non-condensing
Power Consumption
Supports 2.3 kW to 7.5 kW motor power range
Input Voltage
3-phase 200-480 VAC, +/-10%
Input Frequency
50/60 Hz, +/-5%
Output Current
6 A to 18 A RMS
Control Method
Field-Oriented Control
Control Bandwidth
1.5 kHz
Speed Range
0-6000 RPM
Positioning Accuracy
+/-1 encoder count
ABB Industrial Drive Control Architecture
The ABB DSQC346E uses field-oriented control technology to regulate servo motor torque, speed, and position feedback. Therefore, it maintains controlled axis movement through coordinated current regulation and encoder feedback processing.
The module operates as part of ABB robot drive systems, where backplane communication exchanges motion commands, diagnostic information, and drive status data. In addition, ABB industrial drive architectures use deterministic communication paths to maintain synchronized axis control.
The servo drive supports I/O density scaling within ABB controller configurations by allowing multiple axis drive units to operate under coordinated motion management. Furthermore, firmware compatibility must match the target robot controller generation to maintain correct drive communication behavior.
Frequently Asked Questions
Q: What motor control method does the ABB DSQC346E support?A: The DSQC346E supports Field-Oriented Control for servo motor current regulation and motion control.
Q: What input power range does the ABB DSQC346E accept?A: The unit accepts 3-phase 200-480 VAC input with a frequency range of 50/60 Hz.
Q: What installation conditions are specified for the DSQC346E?A: The module operates within 0 deg C to +55 deg C and supports 5-95% RH non-condensing humidity conditions.
Field Installation Guidelines
Install the ABB DSQC346E inside the designated ABB robot controller cabinet using the specified mounting position and mechanical locking method.
Verify that power connections match the required three-phase AC input specification before energizing the drive module. Use appropriate cable routing practices to separate motor power wiring from sensitive encoder and communication lines.
Connect protective grounding according to industrial electrical installation standards. Ensure encoder feedback cables maintain proper shielding and grounding to reduce electrical interference during servo operation.
Before commissioning, confirm controller compatibility, axis configuration parameters, motor data settings, and feedback signal operation through the ABB robot control system diagnostics.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC346C Servo Drive Unit
Configured for servo motor power regulation and axis motion control in ABB S4 robot controller systems, the ABB DSQC346C (DSQC346C Servo Drive Unit) provides direct physical and electrical execution. It manages motor current output, velocity regulation, and position feedback processing for robotic axis operation.
Hardware Specifications
Parameter
Specification
Model
DSQC346C
Brand
ABB
Origin
Sweden
Product Type
Servo Drive Unit / Drive Module
Part Number
3HAB8101-7 / 3HAB8101-11 series
Application
ABB S4 Industrial Robot Controller Systems
Function
Servo motor control, torque regulation, velocity control, position feedback handling
Weight
Approx. 3.33 kg
Power Consumption
Dependent on robot system configuration and servo load
Industrial Drive Control and Firmware Compatibility
The ABB DSQC346C operates as an axis drive interface within ABB robotic motion systems. Therefore, it processes command signals from the robot controller and controls electrical output to connected servo motors.
The module follows ABB industrial drive architecture, where firmware compatibility and hardware revision matching are required during replacement. Additionally, the drive unit supports closed-loop motion control through motor feedback signals, allowing the controller to maintain axis position, speed, and torque parameters.
The DSQC346C belongs to the ABB industrial control and drive category, where system integration depends on controller backplane communication, drive configuration parameters, and compatible firmware flash versions.
Frequently Asked Questions
Q: Can the ABB DSQC346C be installed as a direct replacement for all DSQC346 series modules?A: No. Replacement requires verification of the complete catalog number, hardware revision, and controller compatibility because suffix variations may contain different internal configurations.
Q: What signals does the DSQC346C process during robot operation?A: The unit processes servo motor control commands and feedback signals associated with axis velocity, torque, and position regulation.
Q: Does the DSQC346C support hot-swapping during robot operation?A: The module is not specified as a hot-swap device. Power isolation and controller shutdown procedures should be followed before removal or installation.
Field Installation Guidelines
Verify the DSQC346C nameplate information before installation, including the complete part number and revision code.
Disconnect system power before removing the drive unit from the robot controller cabinet.
Inspect connector pins and cable terminals for contamination, oxidation, or mechanical damage.
Maintain proper cable routing between the drive unit, servo motors, and feedback devices to reduce electrical interference.
Confirm grounding connections according to ABB controller cabinet installation requirements.
After installation, check controller diagnostics and axis configuration parameters before returning the robot system to operation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC346B AXIS Drive Unit
Configured for servo axis power conversion and motion execution in ABB robot controller systems, the ABB DSQC346B (DSQC346B AXIS Drive Unit) provides direct physical and electrical execution for robot axis control circuits.
Hardware Specifications
Parameter
Specification
Model
DSQC346B
Brand
ABB
Product Type
AXIS Drive Unit
Origin
Sweden
Weight
3.3 kg
Dimensions
12.7 x 6.4 x 6 cm
Operating Temp
0 deg C to +55 deg C (derating above +40 deg C)
Storage Temp
-40 deg C to +85 deg C
Humidity
5-95% RH (non-condensing)
Input Voltage
3-phase 200-480 V AC (+/-10%)
Frequency
50/60 Hz (+/-5%)
Power Consumption
3.0 kW
Peak Current
18 A
Output Current
6 A RMS
Switching Frequency
8 kHz PWM
ABB Industrial Drive Control and Communication Characteristics
The ABB DSQC346B operates as an axis drive hardware unit within ABB robotic motion control architectures. It manages electrical power conversion between the controller supply system and connected servo motors.
Furthermore, the module supports deterministic drive operation through ABB controller backplane communication structures. The drive unit processes motion commands and provides controlled current output for axis motor operation.
The unit design follows ABB industrial drive integration requirements, including firmware flash compatibility considerations and controlled communication timing between robot controller modules. Its power stage supports PWM switching at 8 kHz to regulate motor current response.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC346B module?A: The DSQC346B functions as an AXIS Drive Unit that converts electrical power and controls servo motor current output for ABB robot axis motion systems.
Q: What input power range does the DSQC346B support?A: The module accepts 3-phase 200-480 V AC input voltage with a tolerance of +/-10% and operates at 50/60 Hz frequency.
Q: Does the DSQC346B require environmental control during installation?A: Yes. The module should operate within 0 deg C to +55 deg C ambient conditions, while installation should consider airflow, cabinet temperature, grounding, and cable routing requirements.
Field Installation Guidelines
Install the ABB DSQC346B inside a suitable controller cabinet with adequate ventilation and thermal management. Verify that the supply voltage matches the specified 3-phase AC input range before energizing the unit.
Connect motor power cables according to ABB robot controller wiring documentation. Maintain separation between power cables and low-level signal wiring to reduce electromagnetic interference.
Ground the drive unit chassis according to industrial electrical installation practices. Confirm protective earth continuity before commissioning.
Inspect connectors, terminals, and cable insulation before startup. After installation, verify axis feedback signals, motor current response, and controller communication status through the ABB robot control system diagnostics.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC345C Rectifier DC2
The ABB DSQC345C 3HAB8101-3, also cataloged as the DSQC345C Rectifier DC2 unit, operates as a dedicated hardware component for DC power rectification and servo drive power distribution within ABB S4C and S4C+ robot controller systems.
Hardware Specifications
Parameter
Specification
Model
ABB DSQC345C 3HAB8101-3
Brand
ABB
Origin
Sweden
Weight
Approximately 3.68 kg - 3.9 kg
Dimensions
Approximately 460 mm x 240 mm x 300 mm
ABB Type Designation
DSQC345C Rectifier DC2
Component Type
Servo Drive Rectifier Unit
Application
ABB S4C and S4C+ robot controller drive system
Main Function
DC power rectification and distribution for robot servo axes
ABB Industrial Drive and Backplane Integration
The ABB DSQC345C performs DC power conversion functions inside the robot drive architecture. The module receives the controller power input and provides regulated DC supply distribution for servo drive components.
Furthermore, the unit integrates with ABB robot controller power assemblies through the internal electrical interface. Proper installation maintains the required power path integrity between the rectifier stage and servo control hardware.
The DSQC345C belongs to ABB legacy robot hardware platforms, where firmware flash compatibility and controller generation matching must be verified before replacement. Incorrect module selection may affect drive initialization and axis power availability.
Frequently Asked Questions
Q: Which ABB robot controllers support the DSQC345C 3HAB8101-3?A: The DSQC345C is designed for ABB S4C and S4C+ robot controller systems. Compatibility must be confirmed according to the installed controller hardware configuration.
Q: Does the DSQC345C provide direct servo axis control functions?A: No. The module functions as a rectifier and DC power distribution component. Servo regulation and motion commands are handled by separate control and drive modules.
Q: What installation checks are required before replacing the DSQC345C?A: Verify connector compatibility, DC power circuit requirements, controller generation, grounding connections, and cabinet wiring conditions before installation.
Field Installation Guidelines
Disconnect all input power sources before removing or installing the rectifier module.
Confirm that the replacement DSQC345C matches the original ABB part number 3HAB8101-3.
Inspect DC bus wiring, power connectors, and grounding points for mechanical damage or oxidation.
Maintain proper cabinet airflow and avoid blocking ventilation paths around power conversion assemblies.
Route power cables separately from low-level signal wiring to reduce electrical interference.
Verify system alarms and servo drive status after power restoration and controller startup.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

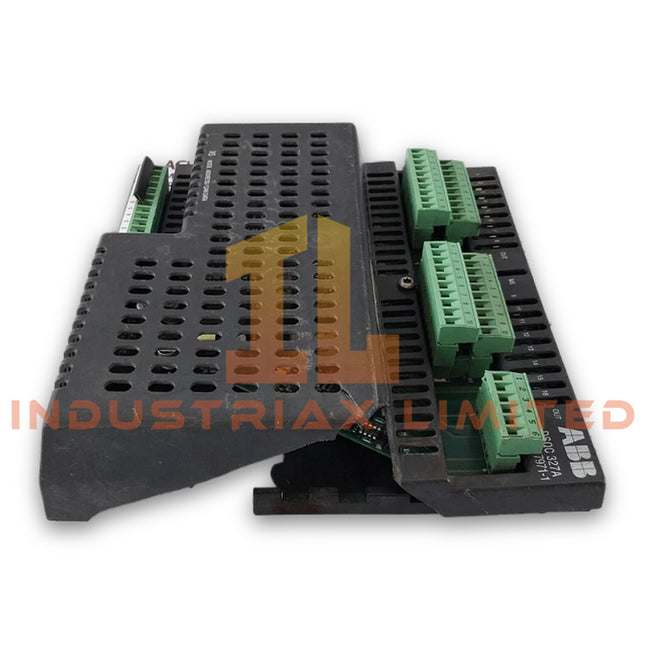

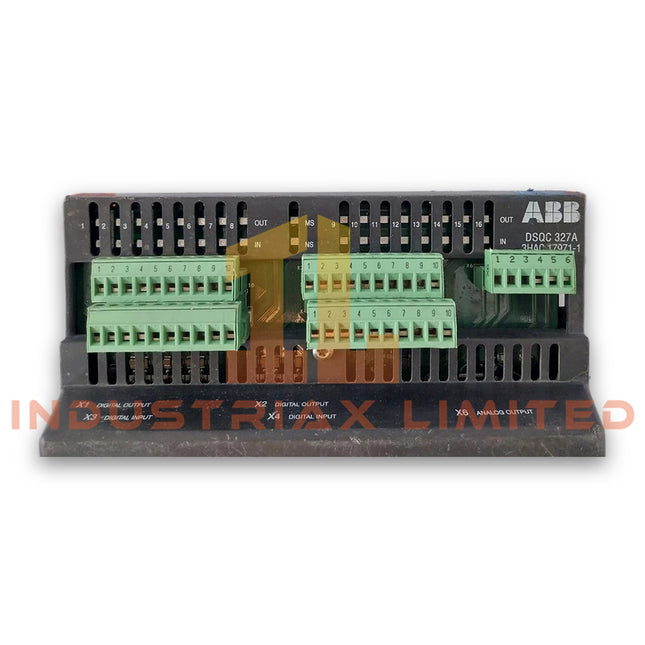

ABB DSQC327A Combi I/O Module
Configured for analog and digital signal processing in ABB robot controller I/O systems, the ABB DSQC327A (DSQC327 Combi I/O Module) provides direct physical and electrical execution for external device interfacing and actuator control within ABB S4/S4C and compatible robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC327A / DSQC327
Brand
ABB
Module Type
Combi Analog and Digital I/O Module
Origin
Sweden
Weight
Approx. 0.3 kg - 0.35 kg
Dimensions
Approx. 10.2 cm x 5.3 cm x 6.5 cm
Power Consumption
24 VDC supply input, exact consumption depends on I/O load
Digital Inputs
16 channels
Digital Outputs
16 channels
Analog Inputs
4 channels, typically 12-bit resolution
Analog Outputs
4 channels, current or voltage output variants
Controller Compatibility
ABB industrial robot controllers including selected S4, S4C, and IRC5 configurations
ABB Industrial Control Bus and I/O Interface Characteristics
The DSQC327A operates as an ABB robot controller I/O expansion component that handles mixed analog and digital field signals. The module supports I/O density scaling by combining discrete and analog channels within a single hardware unit, reducing the number of separate interface boards required in the controller configuration.
Furthermore, the module communicates through the ABB controller backplane architecture, allowing the robot CPU system to exchange signal states, analog values, and diagnostic information with connected peripheral devices. Firmware flash compatibility depends on the installed controller generation and software revision.
The module is designed for industrial signal wiring where proper shielding, grounding, and cable separation practices help maintain signal integrity. Analog channels require appropriate consideration of noise sources, while digital channels provide interface points for sensors, switches, and actuator control circuits.
Frequently Asked Questions
Q: Can the DSQC327A be installed in any ABB robot controller without configuration changes?A: No. The controller software version, hardware configuration file, and robot system generation must support the DSQC327A module before installation.
Q: Does the DSQC327A provide isolated analog and digital channels?A: The available documentation does not specify complete channel isolation characteristics. Field wiring should follow ABB installation requirements for signal separation and grounding.
Q: What factors affect DSQC327A firmware compatibility?A: Firmware compatibility depends on the controller generation, robot software version, and installed system configuration. The module revision should match the target ABB controller documentation.
Field Installation Guidelines
Install the DSQC327A inside the designated ABB controller rack position according to the applicable robot system manual.
Verify that the controller power supply is disconnected before module insertion or removal. Connect analog signal cables using suitable shielded wiring, and terminate cable shields according to ABB grounding recommendations.
Separate analog signal wiring from high-current actuator cables to reduce electrical interference. Confirm that all digital input and output terminals match the configured field device voltage levels before applying power.
After installation, verify module recognition through the robot controller diagnostic interface and check I/O signal status before placing the robot system into operational mode.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

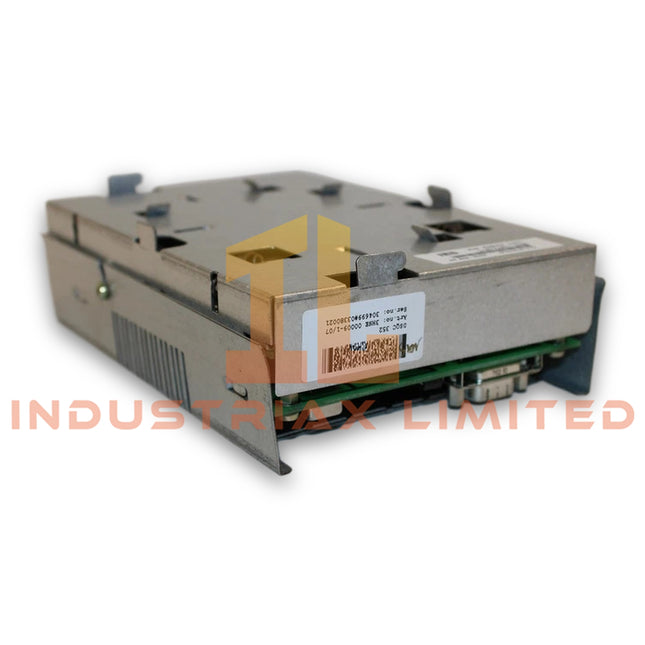

ABB DSQC325 Main Computer Board
The ABB DSQC325 3HAB2241-1, also cataloged as the DSQC325 Main Computer Board, operates as a dedicated processing hardware component for CPU execution, system management, and module communication within ABB S4 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
ABB DSQC325 3HAB2241-1
Brand
ABB
Product Type
Main Computer Board / CPU Board
Controller Platform
ABB S4 Robot Controller Series
Origin
Sweden / Switzerland
Processor Speed
25 MHz
Weight
Approx. 0.78 kg
Dimensions
Approx. 250 x 245 x 20 mm
Alternative Models
3HAB2209-1, 3HAB2219-1
Board Function
Main CPU processing, controller software execution, internal module coordination
ABB S4 Controller Backplane and Firmware Compatibility
The ABB DSQC325 3HAB2241-1 manages controller-level processing tasks through the S4 system architecture. It executes robot control firmware, handles internal data exchange, and coordinates communication between connected controller boards.
Furthermore, the module supports ABB industrial control hardware integration through the controller backplane communication structure. The CPU board provides the processing interface required for robot motion calculation, application program execution, and system diagnostics.
The DSQC325 also follows ABB controller firmware compatibility requirements. Therefore, replacement installation requires verification of software revision, controller configuration data, and connected hardware compatibility.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC325 3HAB2241-1 board?A: The DSQC325 functions as the main computer board for ABB S4 controllers. It executes controller firmware, processes robot control tasks, and manages communication with internal hardware modules.
Q: Can the DSQC325 3HAB2241-1 be installed without firmware verification?A: No. Firmware revision compatibility and controller configuration parameters should be checked before installation because the CPU board operates as the central processing unit of the S4 controller.
Q: Does the DSQC325 support hot-swap replacement?A: The DSQC325 is not specified as a hot-swappable module. Power isolation and proper ESD protection procedures should be applied before board replacement.
Field Installation Guidelines
Disconnect controller power before removing or installing the DSQC325 board.
Use ESD protection equipment when handling the PCB assembly.
Verify connector alignment before insertion into the ABB S4 controller rack.
Inspect backplane contacts for contamination or mechanical damage.
Confirm firmware compatibility and controller parameter backup before commissioning.
Maintain proper cable routing to prevent interference with controller communication lines.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

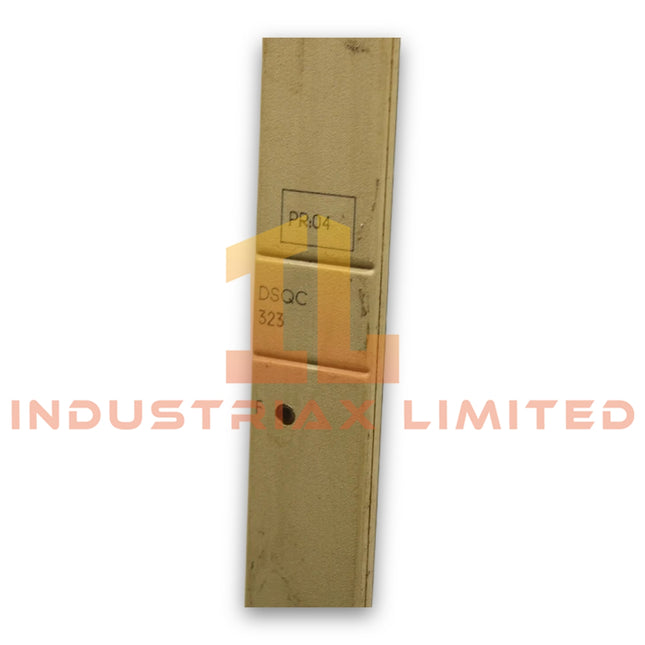

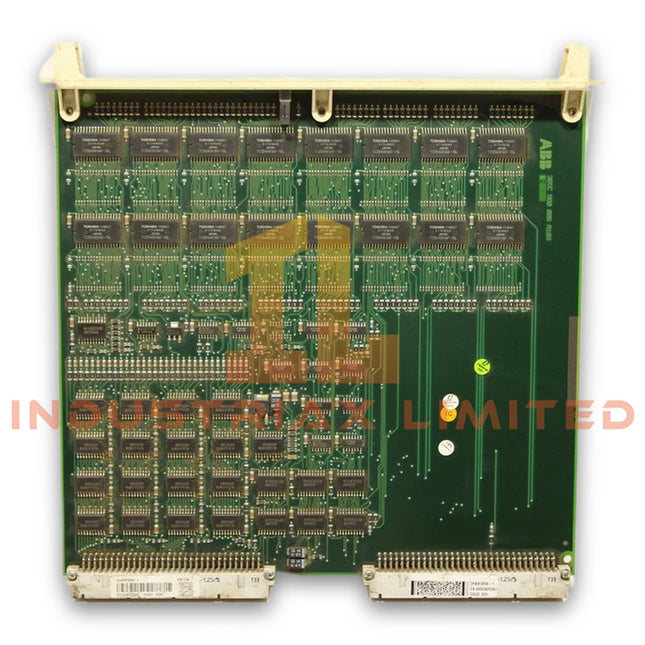

ABB DSQC323 3HAB5956-1 Memory Board 8MB
The ABB DSQC323 3HAB5956-1, also cataloged as the DSQC323 Memory Board, provides memory storage and data retention functions within ABB industrial robot controller platforms. The board integrates 8 MB SDRAM with battery-backed retention for controller data handling.
Hardware Specifications
Parameter
Specification
Model
DSQC323 3HAB5956-1
Brand
ABB
Product Type
Memory Board 8MB
Origin
Sweden
Weight
0.4 kg
Dimensions
18.6 x 6.1 x 6 cm
Operating Temp
0 deg C to +55 deg C
Power Consumption
Not specified
Memory Type
Fast Page Mode memory
Memory Capacity
8 MB SDRAM
Battery Backup
Integrated 3.6 V Lithium Battery
Data Retention
>= 72 hours
Interface
96-pin DIN 41612 connector Type C
Tariff Code
8537101190
Humidity
5-95% RH, non-condensing
ABB Industrial Controller Memory Architecture
The DSQC323 memory board operates as a dedicated storage component in ABB robot controller hardware. It uses an internal 3.6 V lithium battery to maintain retained memory data when the controller power supply is removed.
Furthermore, the board connects through a 96-pin DIN 41612 Type C interface, allowing direct integration with compatible ABB controller backplanes. The 8 MB SDRAM capacity supports controller configuration data and system memory requirements defined by the installed controller architecture.
The ABB control platform uses firmware-managed memory compatibility to maintain communication between the controller processor and installed memory modules. Therefore, replacement procedures must verify controller hardware compatibility before installation.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC323 3HAB5956-1?A: The DSQC323 3HAB5956-1 functions as an 8 MB memory board for ABB robot controller systems, providing data storage and battery-backed retention.
Q: Does the DSQC323 require an external battery connection?A: No. The module includes an integrated 3.6 V lithium battery for memory retention functions.
Q: What interface connector does the DSQC323 use?A: The board uses a 96-pin DIN 41612 Type C connector for controller backplane connection.
Field Installation Guidelines
Verify that the controller power supply is disconnected before removing or installing the DSQC323 module.
Confirm the replacement board matches the ABB controller hardware configuration and firmware compatibility requirements.
Handle the DIN connector carefully to prevent pin damage during insertion and removal.
Install the module in a clean environment to reduce contamination on connector contacts.
Follow ABB controller grounding and cabinet wiring practices during installation.
Avoid exposing the memory board to electrostatic discharge during handling by using appropriate ESD protection procedures.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

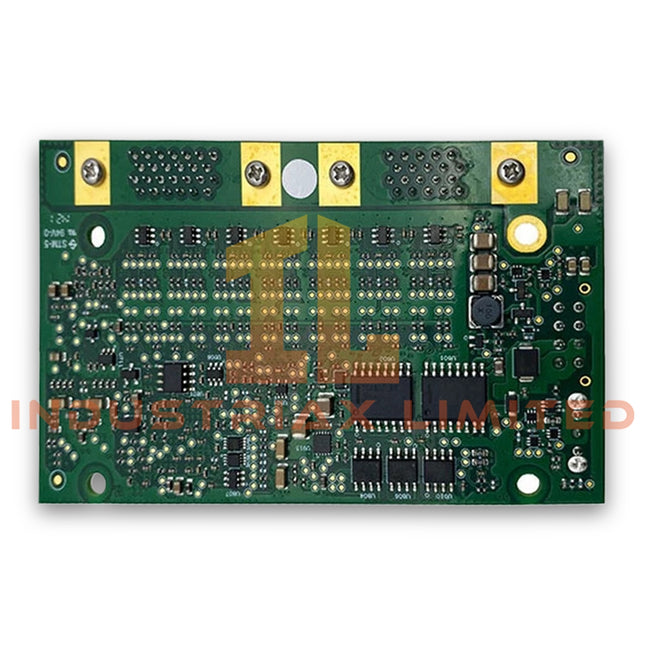

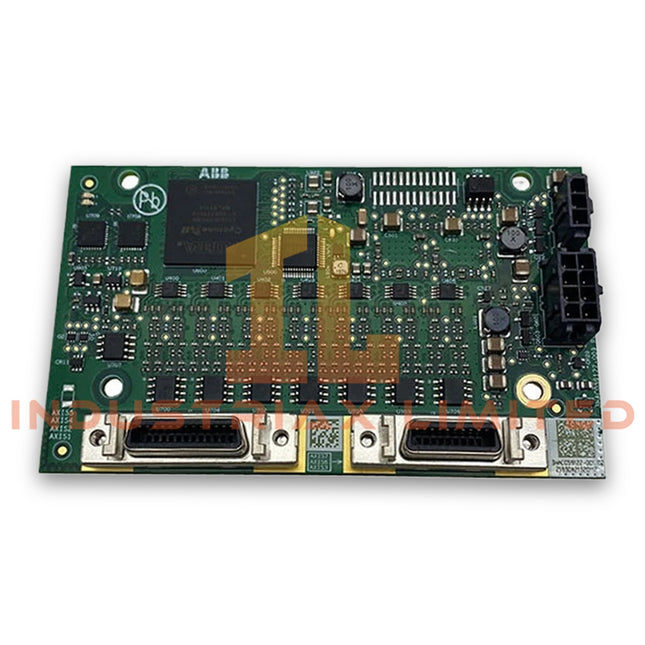

ABB DSQC3026 Measurement Board
The ABB DSQC3026 3HAC059122-001, also cataloged as the DSQC3026 Measurement Board, operates as a dedicated hardware component for serial measurement data processing within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC3026 3HAC059122-001
Brand
ABB
Product Type
Measurement Board / Serial Measurement Board
Origin
Sweden
Compatible System
ABB Robotics IRC5 controller environments
Communication Interface
Serial communication interface
Power Supply
24 VDC
Weight
Approx. 2.5 kg
Dimensions
Approx. 200 mm x 150 mm x 50 mm
Operating Temp
-10 deg C to +60 deg C
Application Function
Robot position feedback and measurement signal processing
Industrial Control and Drive Integration
The ABB DSQC3026 measurement board processes serial measurement signals from robot feedback devices and transfers position-related data to the IRC5 controller system. Therefore, the module supports closed-loop motion control by maintaining communication between measurement hardware and robot control software.
The board integrates with ABB industrial control architectures through dedicated communication paths. In addition, ABB controller platforms use firmware flash compatibility management to ensure that installed hardware revisions match the configured robot system software.
The DSQC3026 supports industrial I/O density scaling concepts within ABB robotic cells by providing a dedicated measurement interface instead of general-purpose signal handling. Its hardware design focuses on stable signal acquisition, controller communication, and precise feedback execution.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC3026 board?A: The DSQC3026 functions as a serial measurement board that processes feedback data from ABB robot measurement systems and transfers position information to the IRC5 controller.
Q: Does the DSQC3026 use standard digital I/O channels for measurement feedback?A: No. The DSQC3026 is designed as a dedicated measurement interface board and uses serial communication for measurement data exchange.
Q: What installation checks are required before replacing a DSQC3026 module?A: Verify controller compatibility, firmware matching, connector condition, grounding arrangement, and correct cable routing before installation.
Field Installation Guidelines
Confirm that the ABB controller is powered down before removing or installing the DSQC3026 board.
Inspect board connectors and backplane interfaces for contamination, mechanical damage, or oxidation.
Install the module according to the ABB controller hardware configuration requirements.
Keep measurement signal cables separated from high-current motor power wiring to reduce electrical interference.
Connect protective grounding according to the robot controller installation specification.
Verify communication status and measurement feedback signals after system restart.
Confirm firmware and controller configuration compatibility before returning the robot system to operation.
