Description

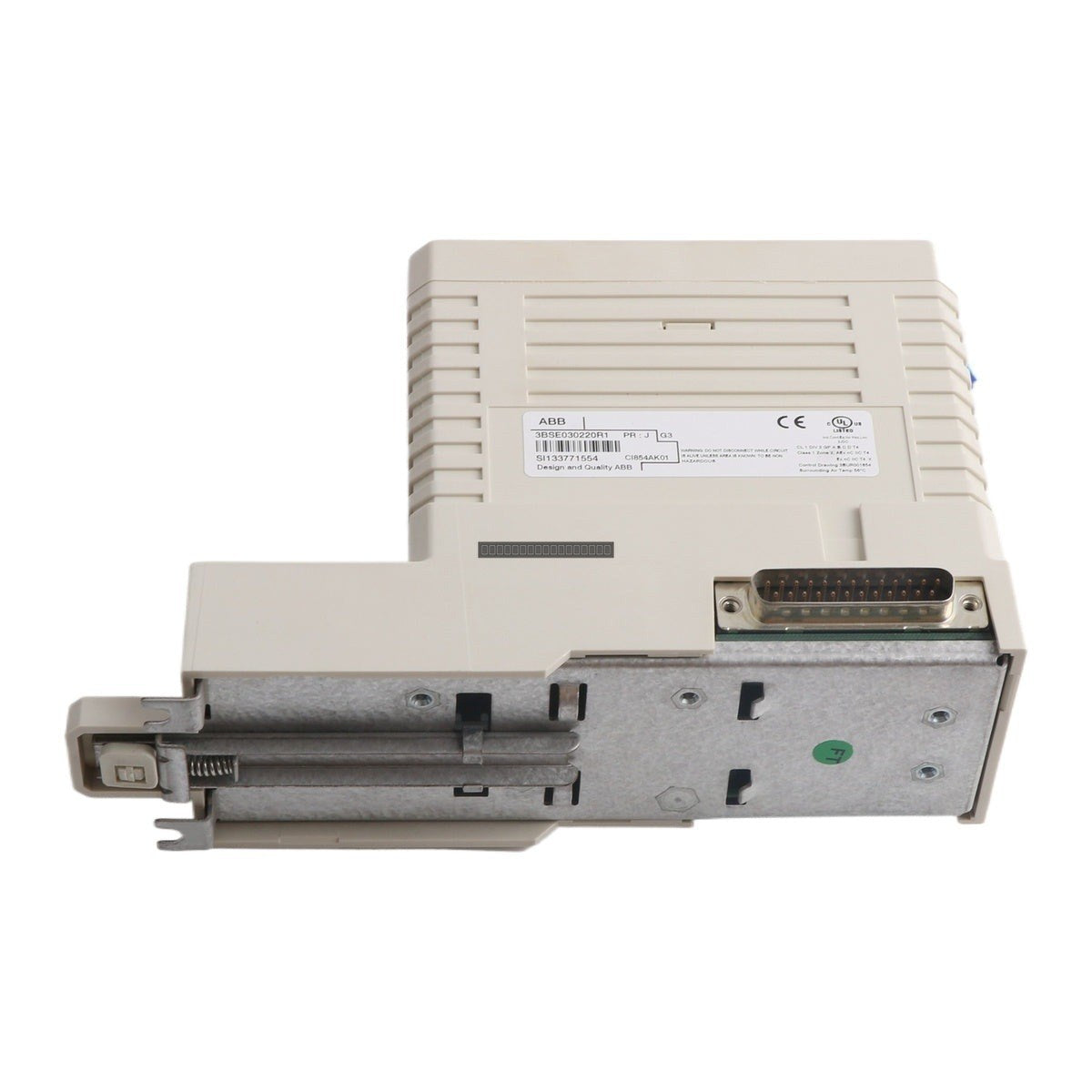

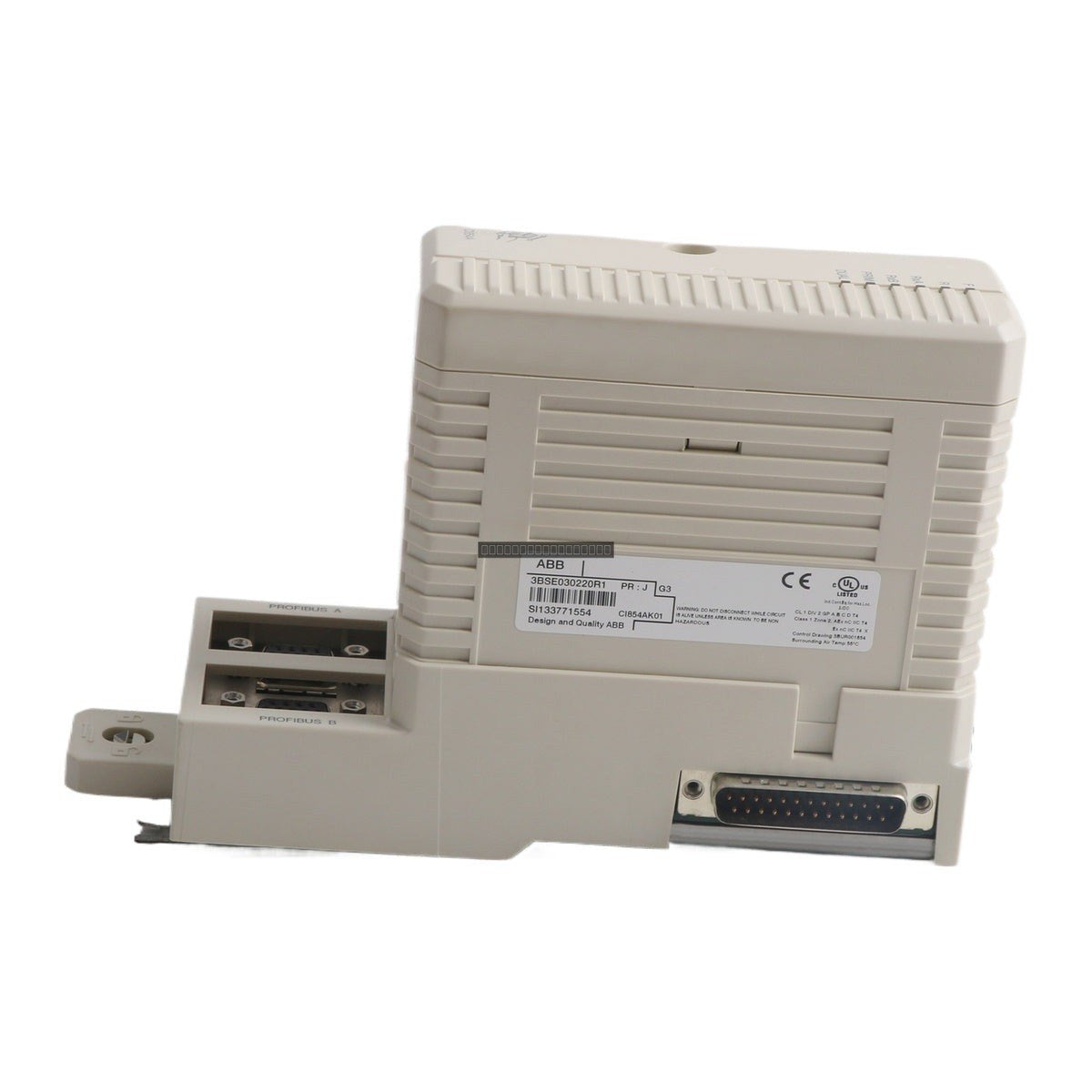

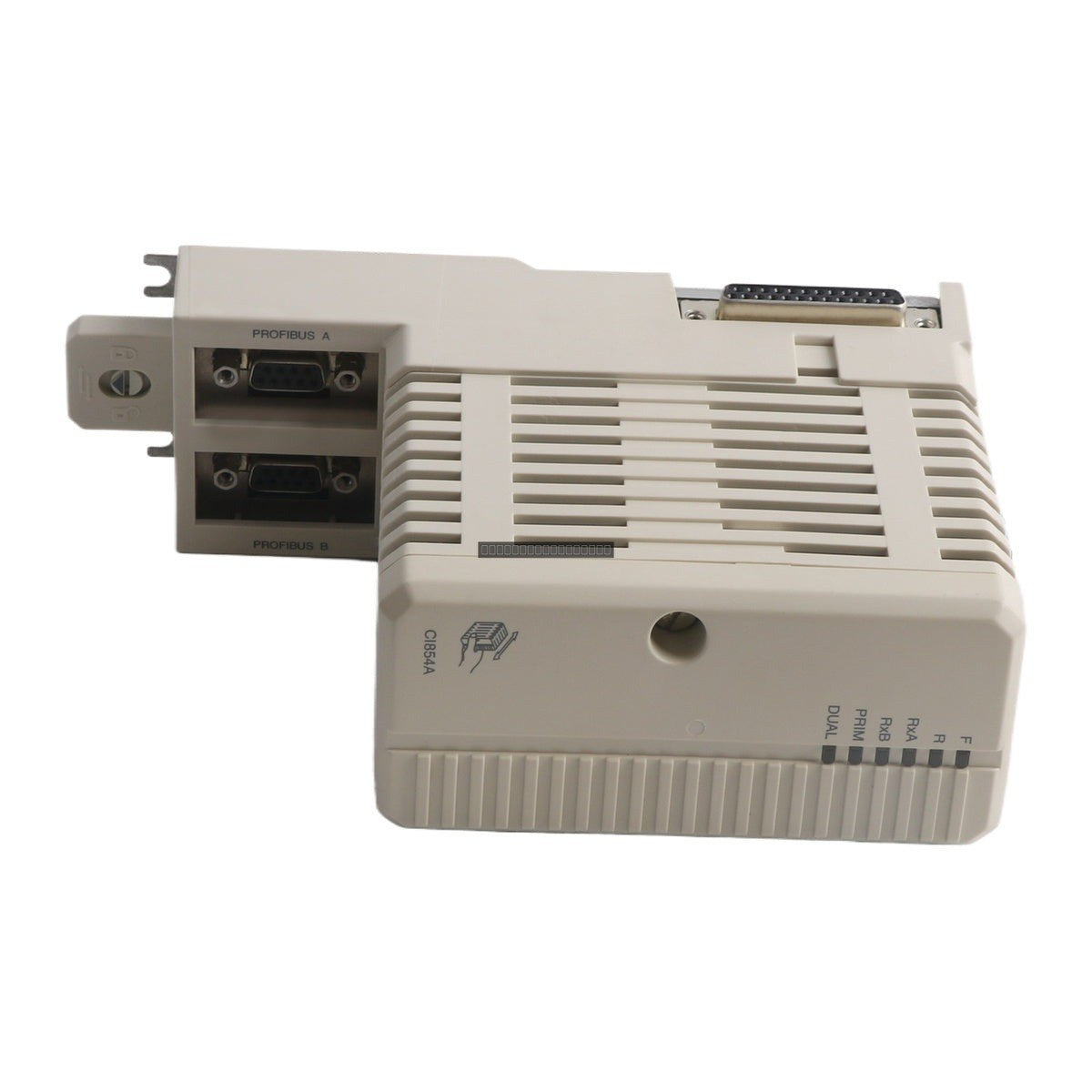

The ABB CI854AK01 (3BSE030220R1) is a high-performance communication interface module designed for the Advant AC 800M control system. This module serves as a PROFIBUS DP-V1 master, enabling seamless integration between the controller and various field devices such as sensors, actuators, and drives. It facilitates reliable, high-speed data exchange within industrial automation environments, supporting complex process control applications.
Features
- Supports PROFIBUS DP-V1 communication standards for advanced diagnostics and acyclic data exchange.
- Flexible data transfer rates ranging from 9.6 kbps up to 12 Mbps.
- Integrated design for the AC 800M controller series, ensuring robust system compatibility.
- Low power consumption profile of 1.5 W.
- Galvanic isolation of 1500V AC to protect internal circuitry from electrical transients.
Applications
This module is primarily utilized in large-scale industrial process control systems, including power generation, chemical processing, and water treatment facilities. It is ideal for applications requiring high-speed fieldbus communication and integration of intelligent field instrumentation using the PROFIBUS protocol.
Technical Specifications
| Parameter |
Specification |
| Product Model |
CI854AK01 (3BSE030220R1) |
| Communication Protocol |
PROFIBUS DP-V1 |
| Data Transfer Rate |
9.6 kbps to 12 Mbps |
| Power Input |
24V DC |
| Power Consumption |
1.5 W |
| Isolation |
1500V AC |
| Operating Temperature |
0 degC to +60 degC |
| Relative Humidity |
5-95% (non-condensing) |
Installation Guidelines
- Ensure the AC 800M controller is powered down before installing or removing the CI854AK01 module.
- Mount the module securely onto the designated I/O rack slot to ensure proper backplane connection.
- Use shielded twisted-pair cabling for PROFIBUS connections to minimize electromagnetic interference (EMI).
- Maintain proper grounding practices for the communication shield to ensure signal integrity.
- Verify that the operating environment remains within the specified temperature and humidity ranges to prevent premature component failure.
- Handle with care using ESD-safe procedures to prevent damage to sensitive electronic components.
FAQ
Is the CI854AK01 still in production?
No, this specific model has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.
What does the V1 in PROFIBUS DP-V1 signify?
The V1 designation indicates support for acyclic data communication, which allows for advanced device configuration, parameterization, and diagnostic data retrieval beyond standard cyclic process data.
