ABB DSQC679 Teach Pendant
The ABB 3HAC028357-001, also cataloged as the DSQC679 Teach Pendant, operates as a dedicated hardware component for operator command input and robot motion control within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC679
Spare Model
3HAC028357-001
Brand
ABB
Product Type
Teach Pendant
Function
Operator interface device for ABB robot programming and manual operation
Cable Length
32.5 ft
Connector Type
17 pin connector
Origin
Sweden
Weight
2.18 kg
Dimensions
30 x 20 x 12.5 cm (shipping size)
ABB Robot Interface and Operator Control Characteristics
The ABB DSQC679 provides a physical interface between the operator and the ABB robot controller. It transmits manual operation commands, programming inputs, and system navigation signals through the connected pendant cable and 17 pin interface.
Additionally, the teach pendant integrates with ABB IRC5 control architectures through dedicated communication and power connections. Therefore, the unit supports robot commissioning, program editing, axis jogging, and diagnostic access functions defined by the controller firmware.
For ABB industrial control platforms, firmware compatibility and interface communication depend on the connected controller generation. The DSQC679 uses the standard ABB teach pendant connection architecture and maintains compatibility with supported robot system configurations.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC679 teach pendant?A: The DSQC679 provides operator access for robot programming, manual axis movement, configuration adjustment, and diagnostic operations through ABB robot controller systems.
Q: What connection interface does the DSQC679 use?A: The DSQC679 uses a 17 pin connector interface with a 32.5 ft cable assembly for connection to compatible ABB robot controllers.
Q: Does the DSQC679 require separate configuration hardware?A: The teach pendant operates as a controller interface device. Configuration parameters are managed through the connected ABB robot controller software environment.
Field Installation Guidelines
Verify the controller compatibility before installation and confirm that the pendant interface matches the robot system configuration.
Inspect the 17 pin connector contacts before connection to prevent communication faults caused by contamination or mechanical damage.
Route the pendant cable away from high-current power lines and sources of electromagnetic interference.
Maintain proper cable bending radius during installation to avoid mechanical stress on the connector assembly.
Confirm operator control functions after installation by checking communication status, button response, and display operation through the robot controller.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB 3HAC026253-001 DSQC 661 System Power Supply
Configured for system power distribution in ABB IRC5 Robot Controller cabinets, the ABB 3HAC026253-001 (DSQC 661 System Power Supply) provides direct electrical power conversion and supply functions for controller hardware modules.
Hardware Specifications
Parameter
Specification
Model
3HAC026253-001
Brand
ABB
Origin
Sweden
Weight
Not specified
Dimensions
23.5 x 17.8 x 10.5 cm (estimated shipping size)
Operating Temp
Not specified
Power Consumption
Not specified
Product Type
System Power Supply
ABB Type
DSQC 661
Controller Family
IRC5 Robot Controller
Installation Location
Controller Cabinet
Component Function
System power supply unit
Industrial Controller Power Architecture
The ABB DSQC 661 system power supply operates as a dedicated power component inside the IRC5 controller cabinet. It supplies regulated electrical power to controller system hardware according to the installed robot configuration.
Furthermore, ABB IRC5 power architecture uses defined cabinet layouts and hardware compatibility rules. Therefore, replacement units require verification against the complete order number, robot controller variant, serial number, and current bill of materials.
The DSQC 661 belongs to ABB industrial control hardware platforms where firmware flash compatibility and controller hardware identification affect system commissioning procedures. Maintenance personnel must confirm the installed controller generation before replacement.
Frequently Asked Questions
Q: Can the ABB 3HAC026253-001 DSQC 661 be removed while the IRC5 controller is energized?A: No. Disconnect mains power before opening the controller cabinet or removing the system power supply module. The unit is not specified as a hot-swap component.
Q: Where is the DSQC 661 installed in the ABB robot system?A: The DSQC 661 is installed inside the IRC5 controller cabinet as part of the controller power supply assembly.
Q: What verification is required before installing a replacement DSQC 661?A: Confirm the complete order number, installed robot or controller variant, serial number, and applicable ABB hardware documentation before installation.
Field Installation Guidelines
Disconnect and isolate mains power before cabinet access.
Verify the replacement part number matches the installed ABB IRC5 configuration.
Use ABB standard toolkit procedures for removal and installation work.
Inspect cabinet wiring, connectors, and mounting points before reconnecting power.
Maintain correct cable routing to prevent mechanical stress on electrical connectors.
Follow ABB controlled service documentation during recommissioning
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC633 Serial Measurement Board
The ABB 3HAC022286-001, also cataloged as the DSQC 633 Serial Measurement Board, provides encoder feedback signal processing and calibration data management within ABB IRC5 robot system platforms. It executes position data handling between motor measurement devices and robot control hardware.
Hardware Specifications
Parameter
Specification
Model
DSQC633
Brand
ABB
Origin
Sweden
Weight
0.36 kg
Product ID
3HAC022286-001
Product Type
Serial Measurement Board (SMB) / Encoder Interface Unit
Main Function
Motor encoder feedback processing, axis position data handling, calibration data retention
Application Platform
ABB industrial robot controller systems including IRC5 configurations
Industrial Control Interface and Data Handling
The ABB DSQC633 integrates with ABB robot control architectures through serial measurement communication paths. It receives feedback information from internal motor encoder systems and processes axis position data for motion control functions.
Furthermore, the board stores robot calibration information and revolution counter values. Therefore, correct parameter restoration is required after replacement to maintain coordinate accuracy and axis synchronization.
The DSQC633 supports ABB industrial control system architecture requirements, including firmware compatibility management and controller communication through the robot measurement data interface. The module operates as a dedicated hardware component within ABB robot motion feedback circuits.
Frequently Asked Questions
Q: What is the primary function of the ABB DSQC633 module?A: The DSQC633 functions as a Serial Measurement Board that processes encoder feedback signals, manages axis position data, and stores robot calibration information.
Q: Does replacing the DSQC633 require calibration data handling?A: Yes. After replacement, technicians should verify and restore revolution counter values and calibration parameters according to ABB robot maintenance procedures.
Q: Can the DSQC633 be installed in any ABB robot controller?A: No. Compatibility depends on the specific ABB robot model and controller configuration. The spare part list and technical manual should confirm the correct installation location.
Field Installation Guidelines
Disconnect controller power before removing or installing the DSQC633 module.
Verify the spare part number 3HAC022286-001 before installation.
Handle the PCB assembly using appropriate electrostatic discharge protection procedures.
Inspect connectors and measurement signal interfaces before reconnection.
Route encoder-related wiring separately from high-power motor cables to reduce electrical interference.
Confirm calibration parameters and revolution counter values after module replacement.
Perform robot system verification according to ABB commissioning and maintenance procedures.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC 627 Power Supply Module
Configured for 230 VAC to 24 VDC power conversion in ABB IRC5 robot controller systems, the ABB 3HAC020466-001 (DSQC 627 Power Supply Module) provides direct electrical power regulation for controller hardware assemblies. The module delivers 460 W output capacity with 24 VDC supply characteristics.
Hardware Specifications
Parameter
Specification
Model
DSQC 627
Brand
ABB
Origin
Sweden
Product Type
Power Supply Module
Spare Part Number
3HAC020466-001
Controller Compatibility
ABB IRC5 Robot Controller Series
Input Voltage
230 VAC
Input Current
3.5 A
Output Voltage
24 VDC
Output Current
5 A / 9 A
Power Consumption
460 W output power
Weight
4.9 kg
Dimensions
99 mm x 199.75 mm x 355 mm
Industrial Power Conversion and Control Integration
The DSQC 627 performs AC input conversion and provides regulated 24 VDC power for ABB IRC5 controller internal circuits. The module supports stable DC distribution through the controller power architecture and maintains electrical supply for connected automation hardware.
Furthermore, ABB controller power assemblies require correct voltage matching and current loading to maintain system operation. The DSQC 627 integrates within the IRC5 hardware structure and supports standard ABB robot maintenance procedures.
For ABB industrial control platforms, power modules operate together with controller backplane systems and internal communication structures. Proper installation maintains I/O density scaling capability and supports consistent operation of connected controller components.
Frequently Asked Questions
Q: What is the input and output electrical specification of the ABB DSQC 627?A: The DSQC 627 accepts 230 VAC input at 3.5 A and provides 24 VDC output with 5 A / 9 A current capability.
Q: Is the DSQC 627 compatible with ABB IRC5 robot controllers?A: Yes. The DSQC 627 is designed as a power supply module for ABB IRC5 robot controller systems.
Q: Does the DSQC 627 support hot-swap replacement during controller operation?A: No hot-swap capability is specified in the provided technical data. Replacement should follow ABB controller shutdown and maintenance procedures.
Field Installation Guidelines
Verify the controller power configuration before installing the DSQC 627 module.
Confirm that the 230 VAC input wiring matches the required electrical specification.
Disconnect the power source before removing or installing the module.
Maintain proper grounding connections between the power supply module and controller chassis.
Route AC input wiring separately from sensitive signal cables to reduce electrical interference.
Inspect connectors and mounting points before returning the controller to service.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.
ABB DSQC697 DeviceNet Board 3HAC037084-001
The ABB DSQC697 3HAC037084-001, also cataloged as the DSQC697 DeviceNet Board, operates as a dedicated communication hardware component for DeviceNet data exchange within ABB IRC5 robot controller platforms.
Hardware Specifications
Parameter
Specification
Model
DSQC697 3HAC037084-001
Brand
ABB
Product Type
Robot Communication / Fieldbus Module
Origin
Sweden
Communication Protocol
DeviceNet
Compatible Controller System
ABB IRC5 Industrial Robot Controllers
Component Function
DeviceNet network interface board
Weight
0.04 kg
Dimensions
Approx. 130 mm x 140 mm x 10 mm
Industrial Network Communication and Backplane Integration
The ABB DSQC697 provides DeviceNet communication between ABB robot controllers and external automation devices. The board transfers fieldbus data through the robot controller architecture and supports network expansion for connected industrial equipment.
The module integrates with ABB controller hardware through internal communication interfaces. Therefore, correct firmware compatibility and controller configuration are required before installation. The DeviceNet interface supports deterministic industrial data exchange for robot cells, I/O devices, and automation peripherals.
For ABB industrial control platforms, communication modules depend on backplane bus communication velocity, firmware flash compatibility, and controller configuration parameters. These factors define the supported network behavior and available I/O density scaling within the robot system.
Frequently Asked Questions
Q: Is the DSQC697 compatible with ABB IRC5 robot controllers?A: Yes. The DSQC697 is designed as a DeviceNet communication board for ABB IRC5 industrial robot controller systems.
Q: Does the DSQC697 provide direct connection for external DeviceNet devices?A: Yes. The module provides a DeviceNet communication interface for connecting compatible field devices and automation components.
Q: Does the DSQC697 support hot-swap replacement during controller operation?A: Hot-swap operation depends on the ABB controller hardware configuration. The controller should be powered down before replacing communication boards unless the system documentation specifies otherwise.
Field Installation Guidelines
Verify the ABB controller model and firmware compatibility before mounting the DSQC697 module.
Install the board according to ABB robot controller hardware procedures.
Ensure DeviceNet cable routing avoids high-voltage power lines and sources of electromagnetic interference.
Connect DeviceNet shielding according to industrial grounding practices.
Confirm communication parameters and node configuration before returning the robot system to operation.
Check connector seating and mechanical fixation after installation.
نحن نقدم خدمة التوصيل في اليوم التالي من الاثنين إلى الجمعة إذا كان المنتج موجودًا في المخزون والاستثناءات في أيام العطلات.
عطلات نهاية الأسبوع
نحن لا نقدم أي تسليمات في عطلة نهاية الأسبوع.
دولي
نوفر خدمة التوصيل في اليوم التالي، حسب موقعك. تحقق من حالة طلبك عبر هذا الرابط.

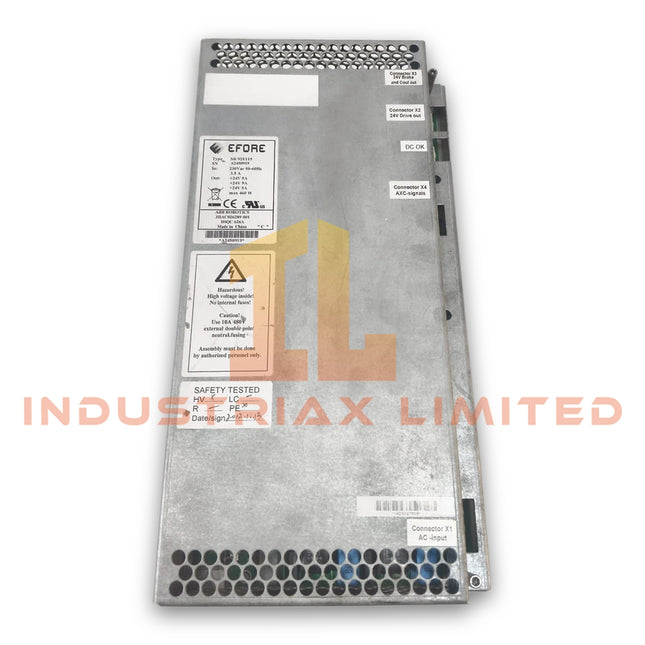

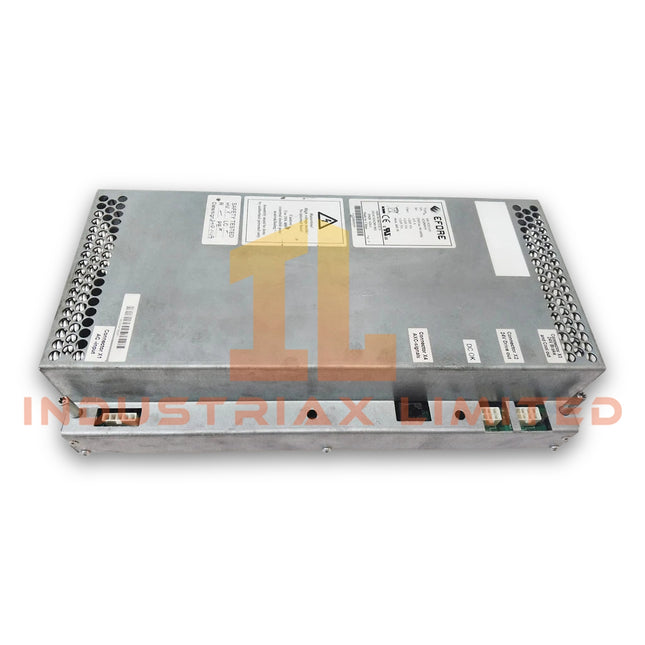

ABB 3HAC026289-001 DSQC626A Robot IRC5 Power Supply
