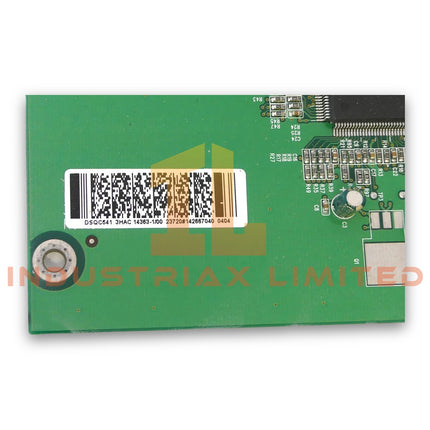

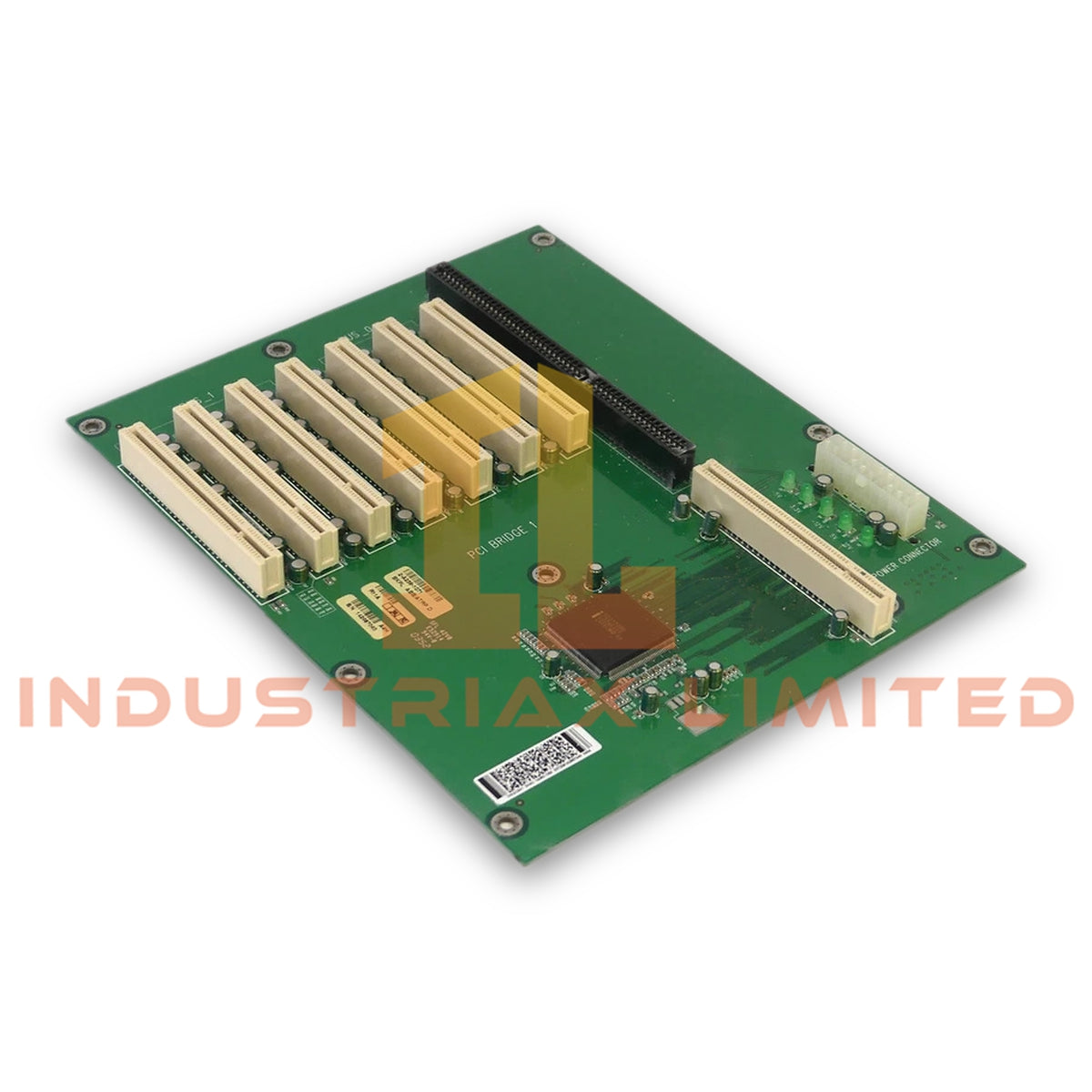

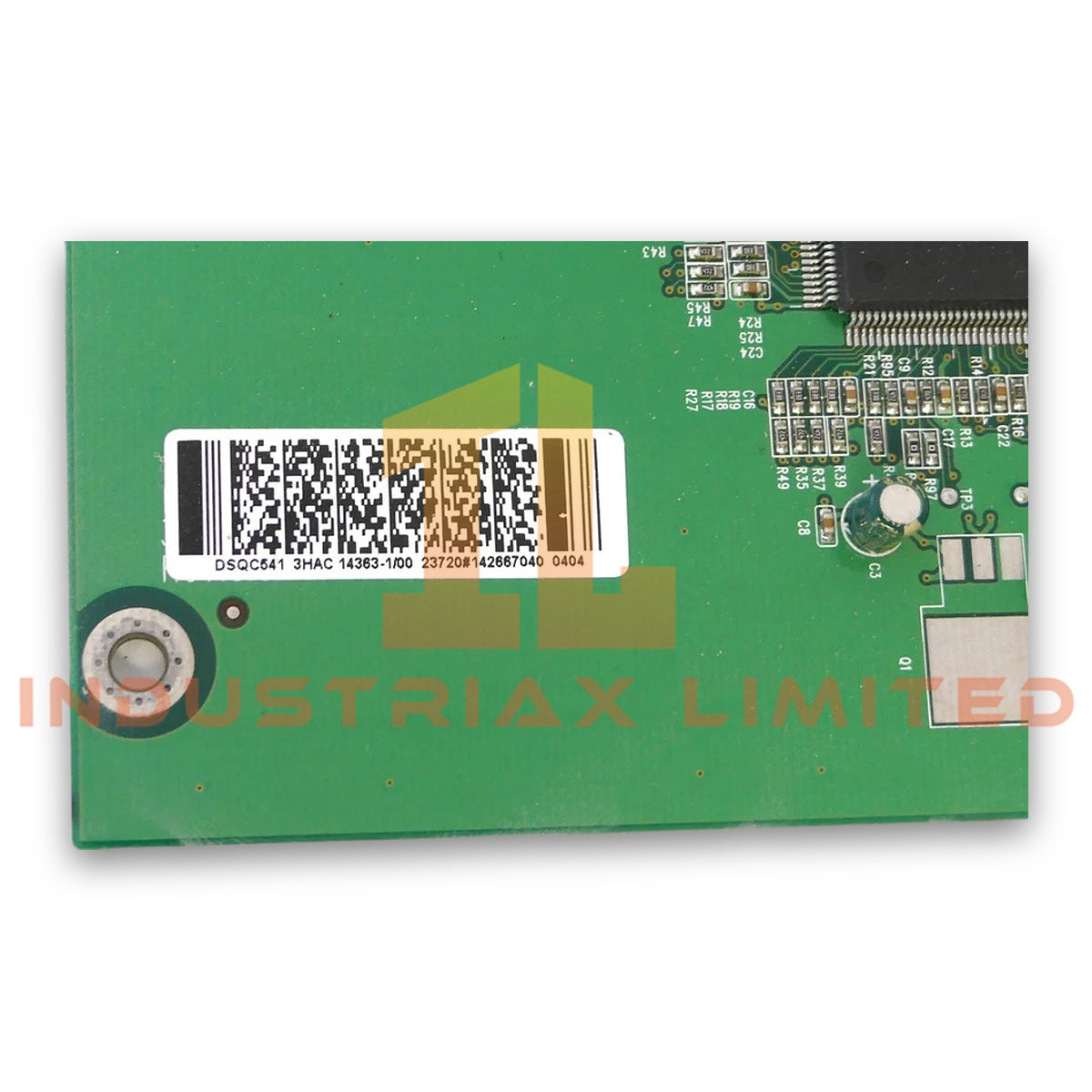

ABB DSQC541 3HAC14363-1 Backplane Controller Card

The ABB DSQC541 3HAC14363-1, also cataloged as the DSQC541 Backplane Controller Card, operates as a dedicated hardware component for backplane communication management within ABB robot controller platforms. It handles controller rack data exchange, power distribution monitoring, and internal module communication functions.

Hardware Specifications

Parameter	Specification
Model	DSQC541 3HAC14363-1
Brand	ABB
Product Type	Backplane Controller Card
Origin	Sweden
Weight	0.4 kg
Dimensions	18.6 cm x 6.1 cm x 6 cm
Operating Temp	0 deg C to 55 deg C
Storage Temp	-20 deg C to +70 deg C
Power Consumption	24 VDC, 0.5 A to 1 A
Communication Data Rate	10 Mbps and 100 Mbps
Humidity Range	5% to 95% non-condensing

ABB Backplane Bus Communication and I/O Architecture

The ABB DSQC541 3HAC14363-1 uses backplane bus communication principles to coordinate data exchange between controller modules. The card manages internal communication paths and supports industrial controller architectures requiring stable module synchronization.

Furthermore, the module supports communication speeds of 10 Mbps and 100 Mbps, allowing connected controller units to exchange operational data through the internal backplane network. Its 24 VDC power input and controlled current consumption support ABB robot controller cabinet integration.

The DSQC541 design follows ABB industrial control hardware practices, including firmware compatibility considerations, controller module addressing, and I/O density scaling within robot automation systems.

Frequently Asked Questions

Q: What is the main function of the ABB DSQC541 3HAC14363-1?
A: The DSQC541 3HAC14363-1 functions as a backplane controller card that manages internal communication between ABB controller modules and coordinates backplane data exchange.

Q: What power supply does the DSQC541 require?
A: The module requires a 24 VDC power supply and consumes approximately 0.5 A to 1 A during operation.

Q: What environmental conditions support DSQC541 installation?
A: The module operates within 0 deg C to 55 deg C and supports 5% to 95% non-condensing humidity conditions.

Field Installation Guidelines

Install the ABB DSQC541 3HAC14363-1 inside the designated controller rack position according to ABB cabinet configuration requirements.

Before installation, verify that the power supply is disconnected and confirm the correct backplane slot assignment. Ensure that connector contacts remain clean and properly aligned during insertion.

Use appropriate industrial wiring practices. Keep communication cables separated from high-voltage power lines to reduce electromagnetic interference. Connect cabinet grounding according to standard industrial control panel requirements.

After installation, verify the 24 VDC supply level, module seating condition, and controller communication status before returning the system to operation.
