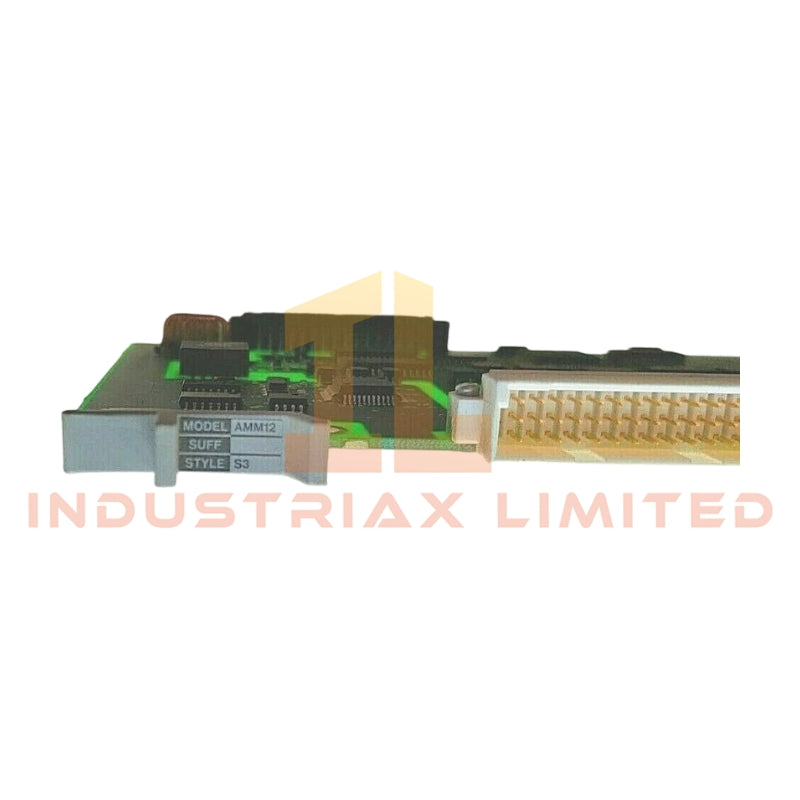

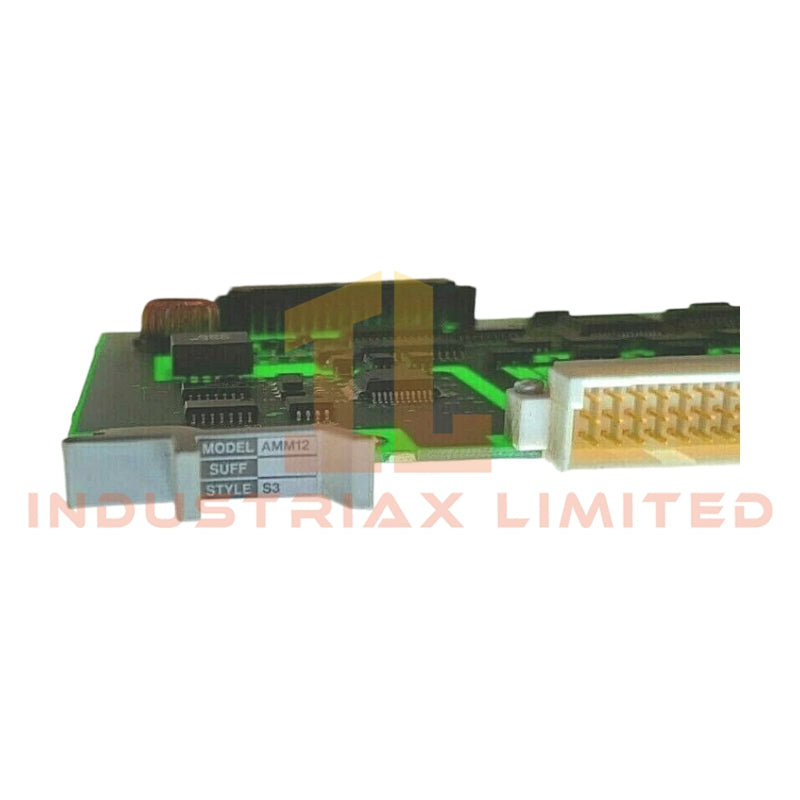

Yokogawa AMM12 Voltage Input Multiplexer Module

Configured for multiplexing multiple analog voltage signals in CENTUM CS and CENTUM VP control systems, the Yokogawa AMM12 (AMM12 Voltage Input Multiplexer Module) provides direct physical/electrical execution. The module aggregates discrete analog voltage inputs into a shared acquisition path for DCS processing within Yokogawa control architectures Yokogawa CENTUM CS CENTUM VP.

Suffix Breakdown & Model Matrix

Single-order designation AMM12 is provided. No documented suffix or configuration matrix is specified in the supplied technical data.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AMM12
Origin	Not specified
Weight	0.1 kg (5.0 oz)
Dimensions	2.5 cm x 22.9 cm x 7.6 cm
Input Channels	Configurable multi-channel voltage multiplexing
Isolation	Electrical isolation between input and output circuits

DCS Voltage Multiplexing and Channel Handling Characteristics

The AMM12 interfaces with CENTUM CS/VP I/O architecture through multiplexed analog voltage acquisition paths. Input channels are sequentially scanned and routed into shared conversion circuitry. Channel-to-channel electrical separation is maintained through internal isolation barriers, limiting interference propagation between simultaneous voltage inputs. Signal conditioning is executed at module level prior to DCS integration, preserving voltage domain integrity under multi-point measurement loading conditions within the Yokogawa control environment Yokogawa CENTUM VP.

Frequently Asked Questions

Q: Does the AMM12 support hot-swap insertion in CENTUM systems?
A: Hot-swap capability is not specified in the provided documentation. Electrical design considerations typically require controlled insertion under system maintenance mode to avoid backplane transient stress.

Q: How is channel isolation implemented between multiplexed inputs?
A: Isolation is implemented via internal electrical separation between input circuitry and shared acquisition stages, limiting cross-channel coupling during sequential scanning.

Q: Does the module require external signal conditioning for voltage inputs?
A: No external conditioning details are specified. Input handling is performed at module level within defined voltage acquisition limits of the CENTUM I/O framework.

Field Installation Guidelines

Install the AMM12 module into the designated CENTUM CS/VP I/O slot with verified backplane alignment. Ensure system power is isolated before insertion or removal unless hot-swap is explicitly supported by the rack configuration. Maintain shield termination at the designated grounding point to minimize noise coupling across multiplexed voltage channels. Signal cabling should follow segregated routing practices, avoiding parallel runs with high-energy conductors. Tighten terminal connections to manufacturer-recommended torque specifications where applicable. Verify channel mapping configuration in the DCS engineering tool prior to energization.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
