Description
Product Description

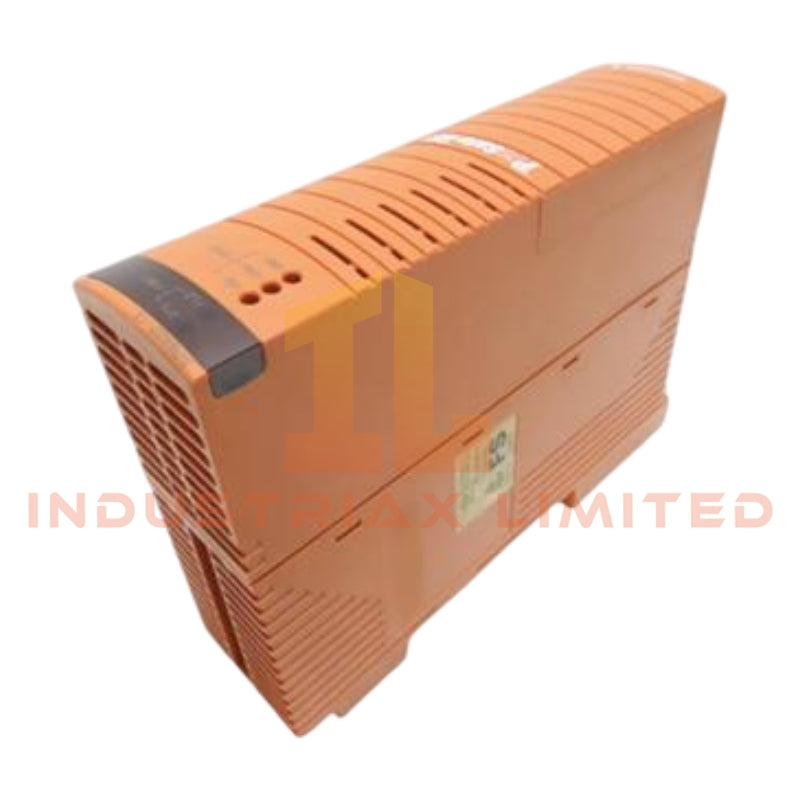

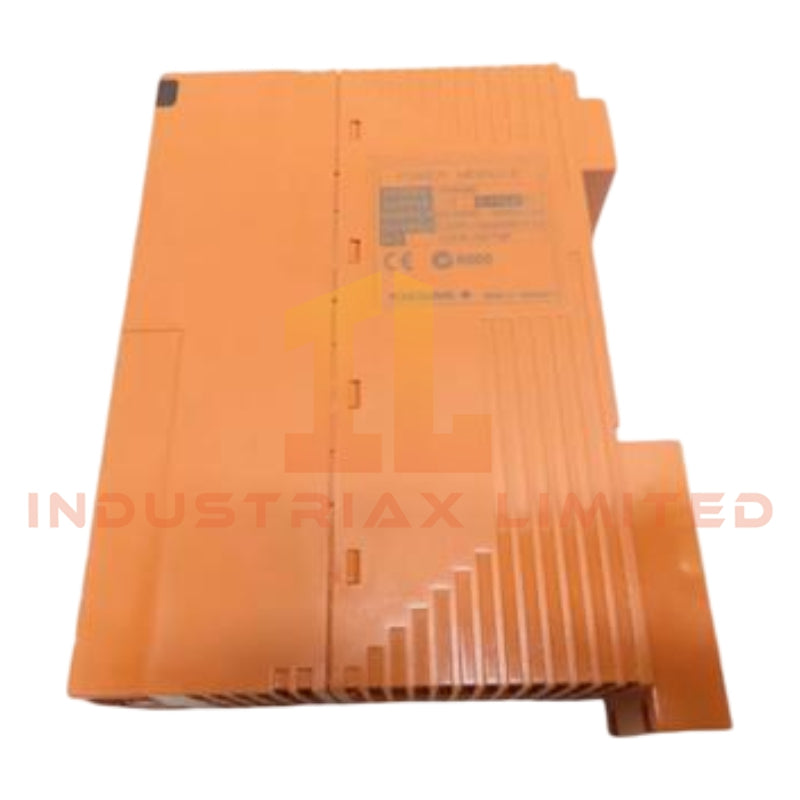

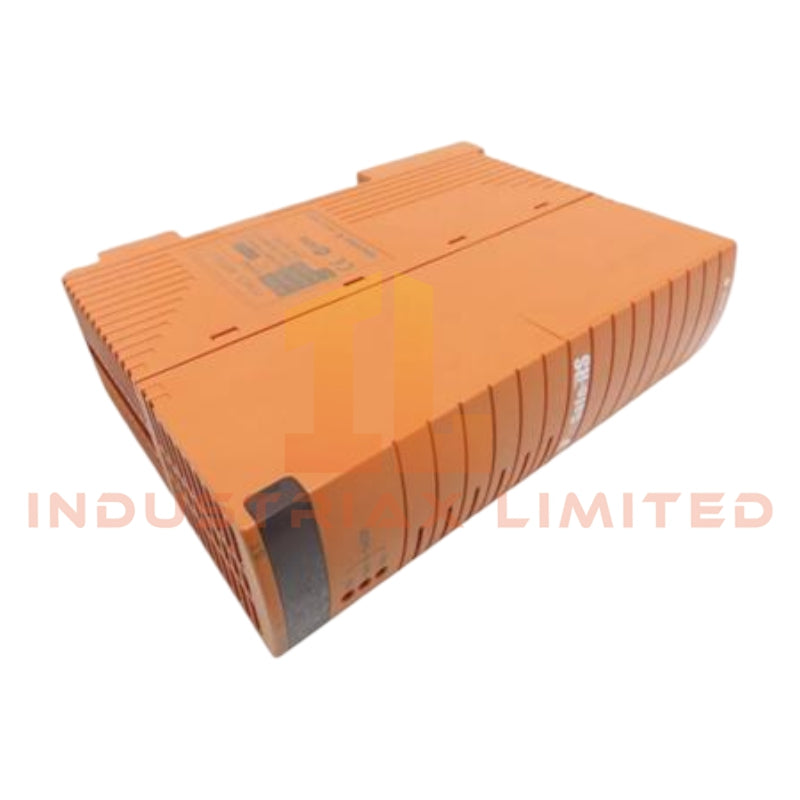

The SPW482-53 from Yokogawa is a reliable power supply module designed for stable dual-voltage output in industrial control systems. It delivers both low-voltage and standard control voltages with high efficiency and compact form factor. The module supports a wide operating temperature range and features a dedicated connector interface for secure integration. Its lightweight design and low standby power consumption make it ideal for space-constrained applications.
Technical Specifications
-
Manufacturer: Yokogawa
-
Model: SPW482-53
-
Product Type: Power Supply Module
-
Input Voltage: 220 to 240 VAC ±10 percent, 50/60 Hz ±3 Hz
-
Maximum Power Consumption: 230 VA
-
Output 1: 5.1 VDC, 7.8 A
-
Output 2: 24 VDC, 1.7 A
-
Standby Power Consumption: 2.5 W or less
-
Operating Temperature: -20 to 70 degrees Celsius
-
Dimensions: 22.5 mm x 99 mm x 114 mm
-
Weight: Approximately 1 kg
-
Input/Output Interface: Exclusive connector
Applications
Suitable for distributed control systems, PLCs, instrumentation panels, and other industrial equipment requiring both 5 VDC and 24 VDC power rails. The module’s compact size and low power consumption allow integration into control cabinets with space or thermal constraints.
FAQ
Q: Can this module operate in high-temperature environments?
A: Yes, the module supports operation from -20 to 70 degrees Celsius, covering most industrial conditions.
Q: Does it provide multiple output voltages simultaneously?
A: Yes, it delivers dual outputs: 5.1 VDC at 7.8 A and 24 VDC at 1.7 A.
Q: Is the connector standardized for easy installation?
A: The module uses a dedicated interface connector for secure and reliable connections.
Q: How does it compare to similar Yokogawa models?
A: Compared to SPW482-52, the SPW482-53 offers higher dual-output current and wider operating temperature range.
