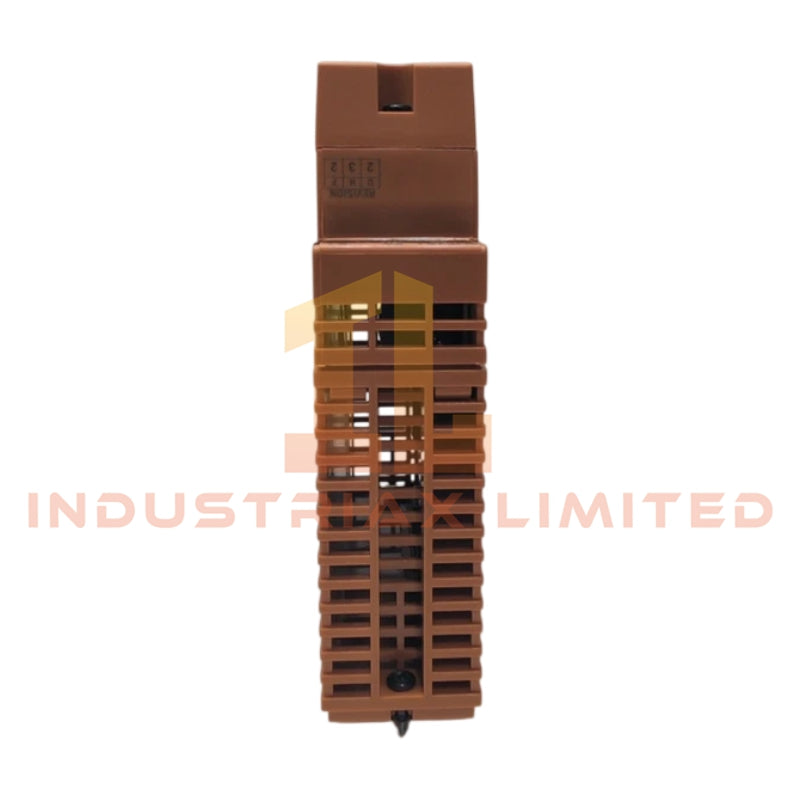

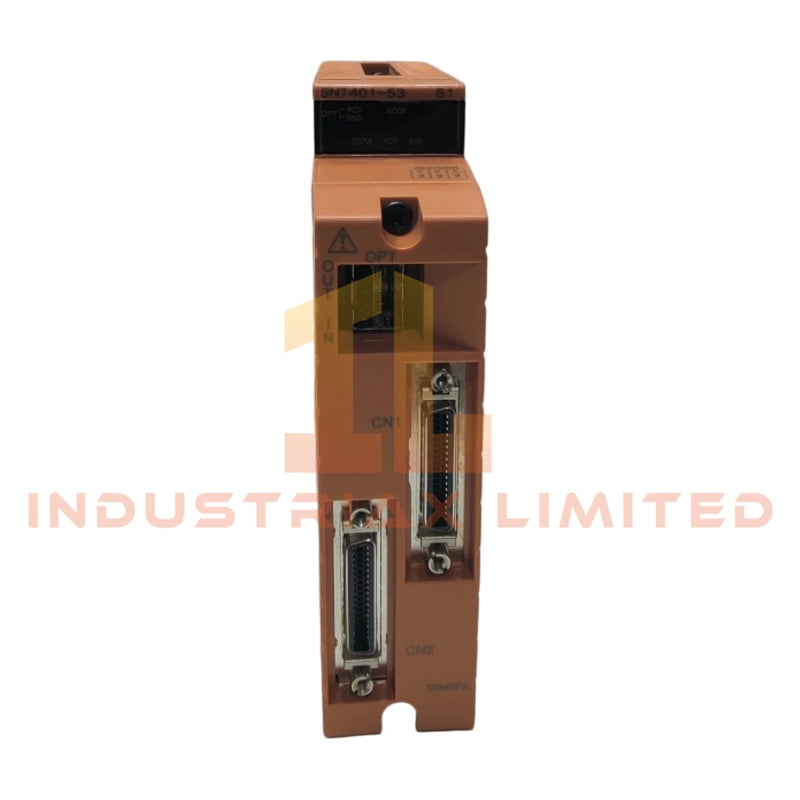

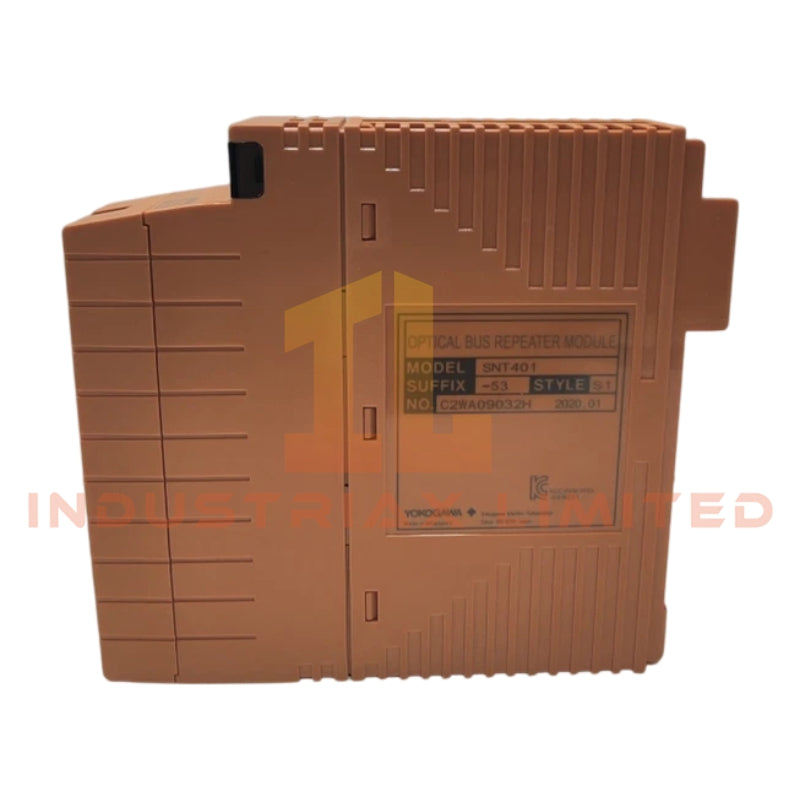

Yokogawa SNT401-53 Optical ESB Bus Repeater Master Module

The Yokogawa SNT401-53, also cataloged as the SNT401 Optical ESB Bus Repeater Master Module, operates as a dedicated hardware component for electrical-to-optical safety bus signal transport within the ProSafe-RS Safety Instrumented System.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa SNT401-53
Origin	Japan
Weight	0.30 kg
Dimensions	2.2 cm (W) x 12.4 cm (H) x 12.6 cm (D)
OperatingTemp	-20 degC to 70 degC
PowerConsumption	0.5 A at 24 VDC
Function	Electrical-to-optical ESB bus signal conversion
TopologySupport	Star type, Chain type
MaxConnectingStages	2 stages
TransmissionDistance	Up to 5 km (standard), up to 10 km with Vnet/IP R1.03+
ConnectorType	Fiber optic connectors
SignalType	Digital optical signal
Isolation	Full galvanic isolation between nodes
EnvironmentalProtection	ISA Standard G3 conformal coating

Process Control Connectivity

The module supports channel-to-channel isolation to prevent signal interference across multiple ESB bus connections. It maintains 4-20 mA HART loop protocol integrity for downstream safety nodes and is compatible with FOUNDATION Fieldbus and Profibus PA systems. Optical conversion ensures minimal propagation delay while maintaining digital signal fidelity across maximum distance spans.

Frequently Asked Questions

Q: Can the SNT401-53 be hot-swapped on an active safety bus?
A: The module is not designed for hot-swap replacement. Power down the backplane before insertion or removal to avoid signal disruption.

Q: What is the maximum allowable current draw on the backplane when using dual-redundant SNT401-53 modules?
A: Each module draws up to 0.5 A at 24 VDC; redundancy does not exceed the rated backplane capacity if installed per specification.

Q: Are firmware upgrades required for compatibility with Vnet/IP R1.03 or later systems?
A: No firmware upgrade is required; the optical repeater functions natively with Vnet/IP systems R1.03 or later.

Field Installation Guidelines

• Mount modules on a standard panel using the included mounting hardware; ensure secure mechanical attachment.
• Route fiber optic cabling to avoid sharp bends or mechanical stress. Minimum bend radius must comply with fiber specifications.
• Maintain proper grounding and shielding for surrounding electrical circuits to prevent EMI interference on adjacent bus components.
• Avoid routing power and optical fibers in the same conduit unless separated by an insulating barrier.
• Verify alignment and cleanliness of fiber connectors prior to system commissioning.
• Confirm dual-redundant configuration cabling before energizing backplane to ensure fail-safe operation.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
