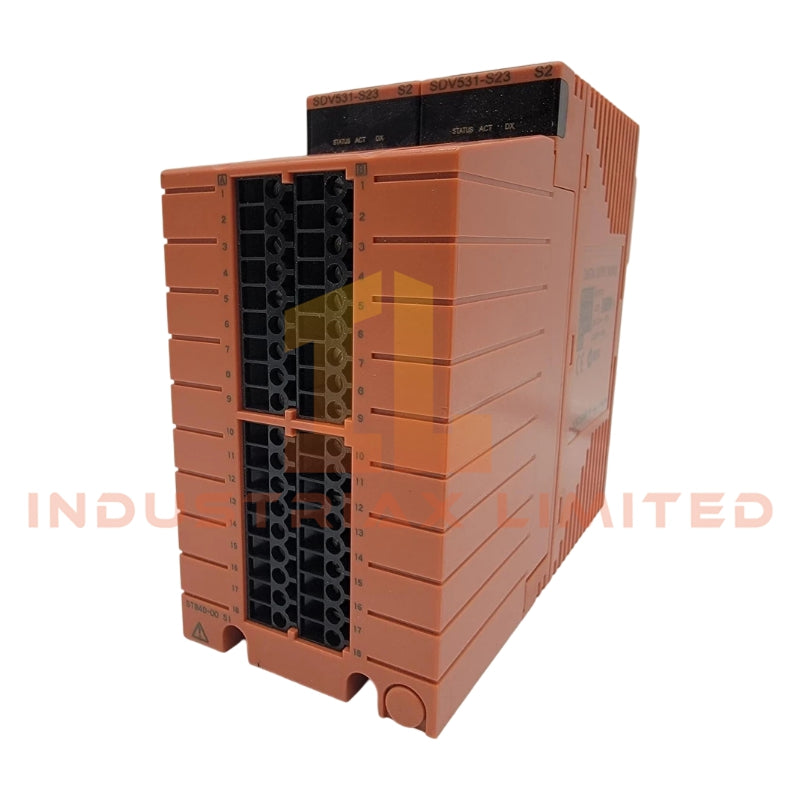

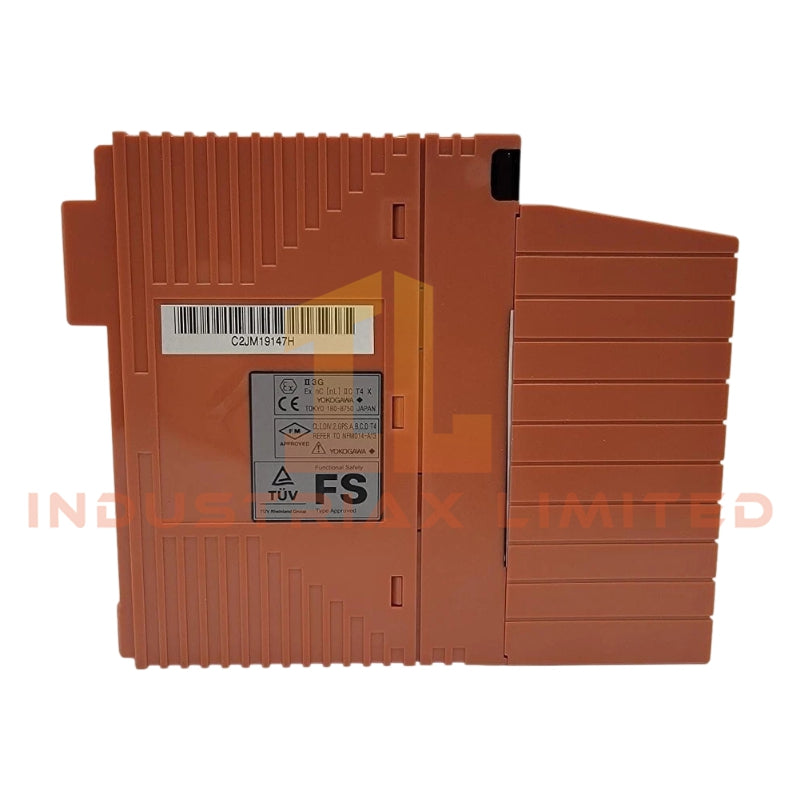

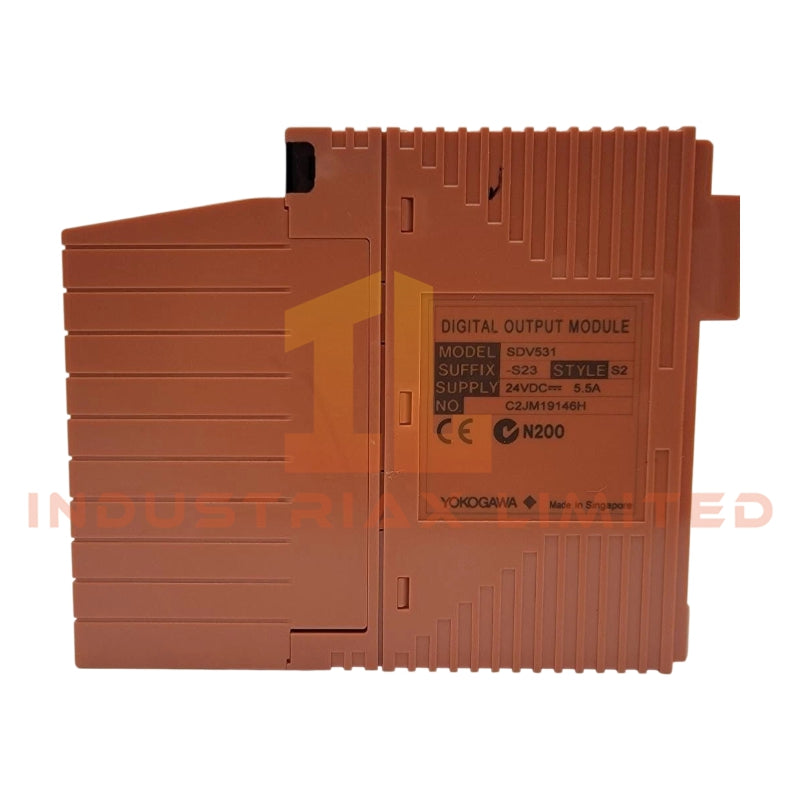

Yokogawa SDV531-S13 Digital Output Module
The Yokogawa SDV531-S13 also cataloged as the SDV531-S13 Digital Output Module operates as a dedicated hardware component for discrete signal actuation within Yokogawa ProSafe-RS safety and control architectures. The Yokogawa SDV531-S13 (SDV531-S13 Digital Output Module) provides direct electrical switching of field loads via isolated 24 VDC output stages with deterministic on/off execution.
Suffix Breakdown & Model Matrix
No validated suffix segmentation beyond the base ordering code SDV531-S13 is defined in the provided dataset. The module is treated as a single hardware variant within the SDV531 series family.
Hardware Specifications
| Parameter |
Specification |
| Model |
SDV531-S13 |
| ModelBrand |
Yokogawa SDV531-S13 |
| Origin |
Yokogawa Corporation |
| Weight |
0.60 lbs |
| Dimensions |
120 mm x 45 mm x 85 mm |
| OperatingTemp |
0 degC to 50 degC |
| StorageTemp |
-20 degC to 60 degC |
| PowerConsumption |
Standard 0.8 A, Maximum 1.0 A at 24 VDC |
| Output Channels |
8 isolated digital outputs |
| Output Voltage |
24 VDC |
| Output Current |
5.5 A per channel |
| Isolation |
1500 VDC channel-to-system bus isolation |
| Response Time |
1 us on/off |
| Fieldbus Ports |
4 |
| Device Capacity |
Up to 16 devices per port (network dependent) |
| Protection Class |
IP20 (IEC 60529) |
Channel-to-System Isolation and Fieldbus Coupling Architecture
The SDV531-S13 implements galvanically isolated output stages with 1500 VDC isolation between field outputs and system backplane. In Yokogawa ProSafe-RS environments, isolation segmentation is maintained at channel level to reduce cross-conduction risk during fault conditions. FOUNDATION Fieldbus H1 device interfacing is supported through multi-port segmentation, enabling distributed load control across up to four fieldbus segments with deterministic update behavior. Channel-to-channel electrical separation is maintained to prevent feedback coupling during inductive load switching events.
Frequently Asked Questions
Q: Can the SDV531-S13 outputs be hot-swapped under load?
A: The module is not designed for live field load interruption during insertion or removal. Load de-energization is required prior to handling to avoid backfeed through output stages.
Q: Does each channel share a common return path?
A: No. Each output channel is galvanically isolated, preventing shared return coupling between channels.
Q: What limits the response time of 1 us specification?
A: The switching time is determined by internal driver propagation delay and isolation barrier response, not field wiring length.
Field Installation Guidelines
-
Ensure 24 VDC supply is de-energized before module insertion or removal
-
Maintain separation between field wiring and communication cabling to reduce induced noise coupling
-
Use shielded cables for inductive or high-current loads, with single-point grounding at cabinet earth bar
-
Verify torque compliance on pressure clamp terminals to maintain stable contact resistance
-
Do not exceed per-channel current rating of 5.5 A to avoid thermal overstress of output drivers
-
Confirm fieldbus segment addressing before energizing FOUNDATION Fieldbus H1 networks
