Description

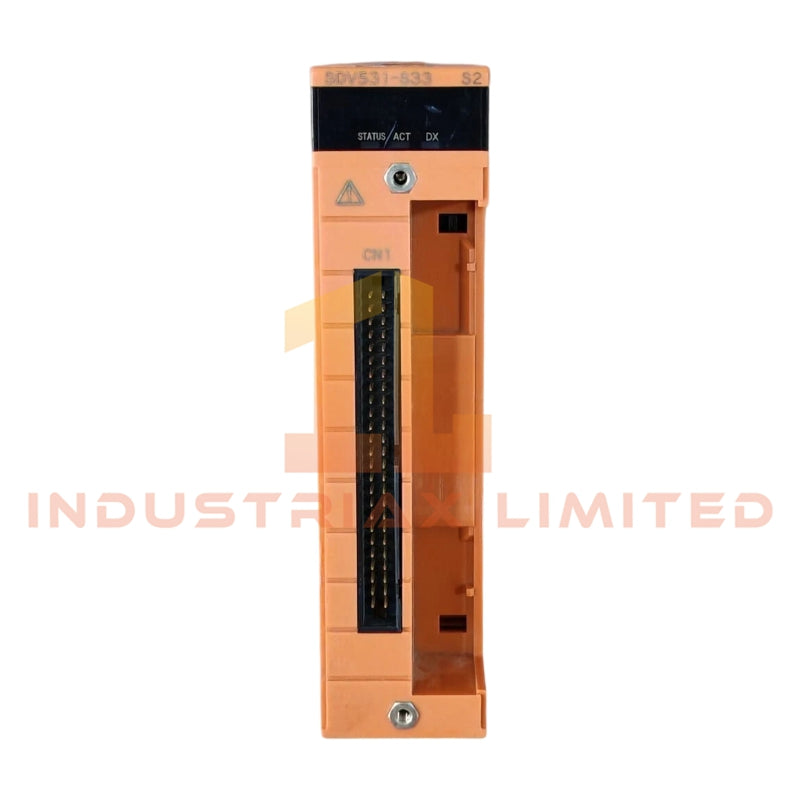

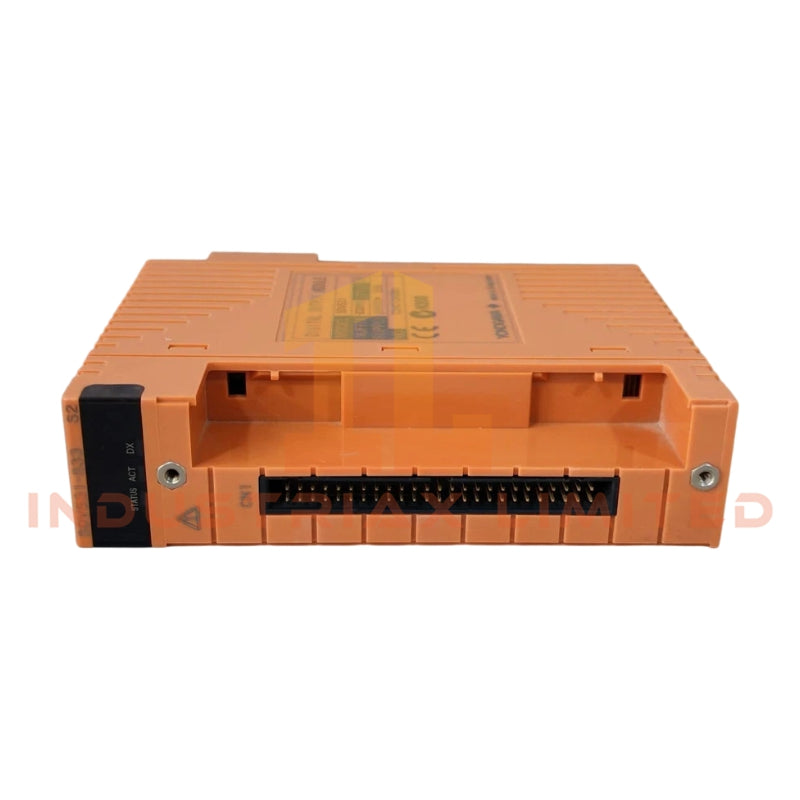

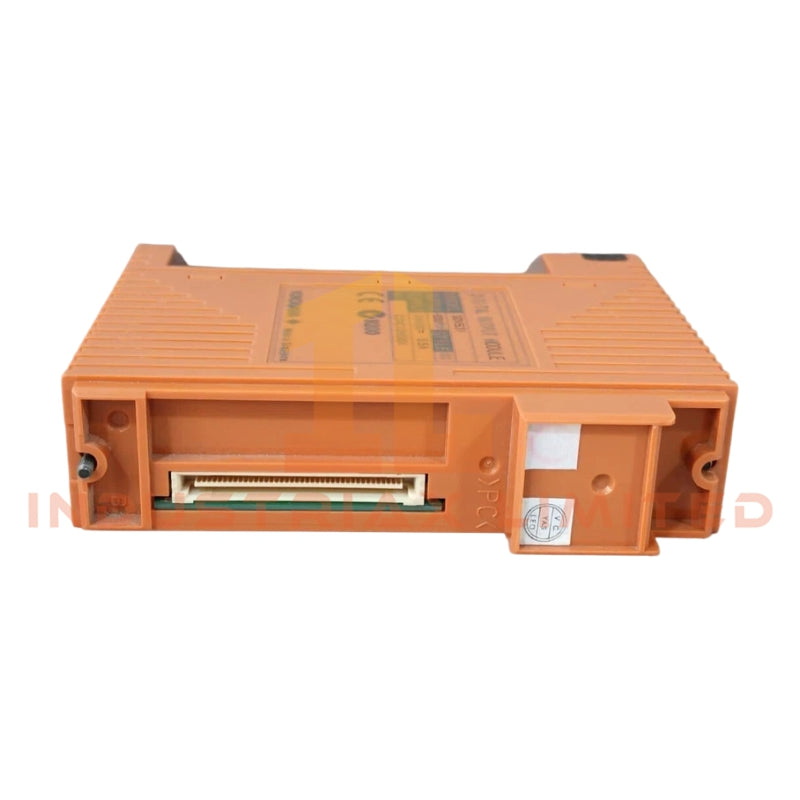

Yokogawa SDV531-LFC Digital Output Module
Configured for digital output signal execution in Yokogawa DCS I/O systems, the Yokogawa SDV531-LFC (SDV531 Digital Output Module) provides direct physical/electrical execution of 24 VDC current source switching across isolated output channels within distributed control hardware architectures.
The module implements 8 channel electrically isolated output stages designed for field load actuation in long-distance wiring configurations. Output structure is based on current source topology with per-channel isolation, supporting independent load switching without shared return path coupling. The L suffix variant extends cable reach capability using dedicated signal cable adapters. Internal diagnostics support wiring integrity checks without external test circuitry. The design targets high-density I/O racks with redundant configuration compatibility.
Suffix Breakdown & Model Matrix
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa SDV531-LFC |
| Origin |
Japan |
| Weight |
~0.34 kg (with signal cable adapter) |
| Dimensions |
Not specified |
| OperatingTemp |
-20 to 70 degC (ISA G3) |
| PowerConsumption |
5 VDC: 280 mA / 24 VDC: 140 mA |
| Output Channels |
8 (module-isolated) |
| Output Type |
24 VDC current source |
| Max Load Current |
0.6 A / channel |
| Total Load Current |
4.8 A |
| Load Resistance |
40 to 685 ohm |
| Response Time |
<= 30 ms |
| Isolation |
Channel-to-channel and system isolation |
| Withstand Voltage |
2 kVAC (1 min) |
| Leakage Current (OFF) |
1.6 mA max |
Yokogawa DCS Channel Isolation & Output Execution Architecture
The SDV531-LFC output stage implements per-channel galvanic separation aligned with Yokogawa process I/O design rules, minimizing inter-channel backfeed under mixed inductive load conditions. Channel isolation supports deterministic switching behavior in distributed rack configurations where shared return impedance must be avoided. Output drivers maintain defined current source behavior with voltage drop limitation of 1 V, ensuring stable actuation across varying field loop resistances. Long-distance configuration uses dedicated cable assemblies to preserve signal integrity under extended routing conditions.
Frequently Asked Questions
Q: Can the SDV531-LFC channels be hot-swapped under load conditions?
A: Hot-swap capability depends on system rack configuration. Electrically, output channels are isolated, but load state should be driven to safe condition before module insertion or removal.
Q: Does each channel share a common return path?
A: No. Each channel is module-isolated, preventing shared return coupling between output circuits.
Q: What is the impact of leakage current in OFF state on field devices?
A: OFF-state leakage current is specified up to 1.6 mA, which must be considered for high-impedance input loads or solid-state field devices.
Field Installation Guidelines
-
Maintain segregation between output wiring and high-noise power conductors to reduce inductive coupling
-
Use shielded cables for long-distance configurations and terminate shields at designated earth reference point only
-
Verify load resistance remains within 40 to 685 ohm operating envelope per channel
-
Ensure torque compliance for pressure clamp terminals to prevent intermittent contact resistance
-
Apply proper grounding of cable shield at control cabinet side only, avoiding dual-end ground loops
-
Confirm system power sequencing to avoid transient backfeed during module insertion
