Product Description

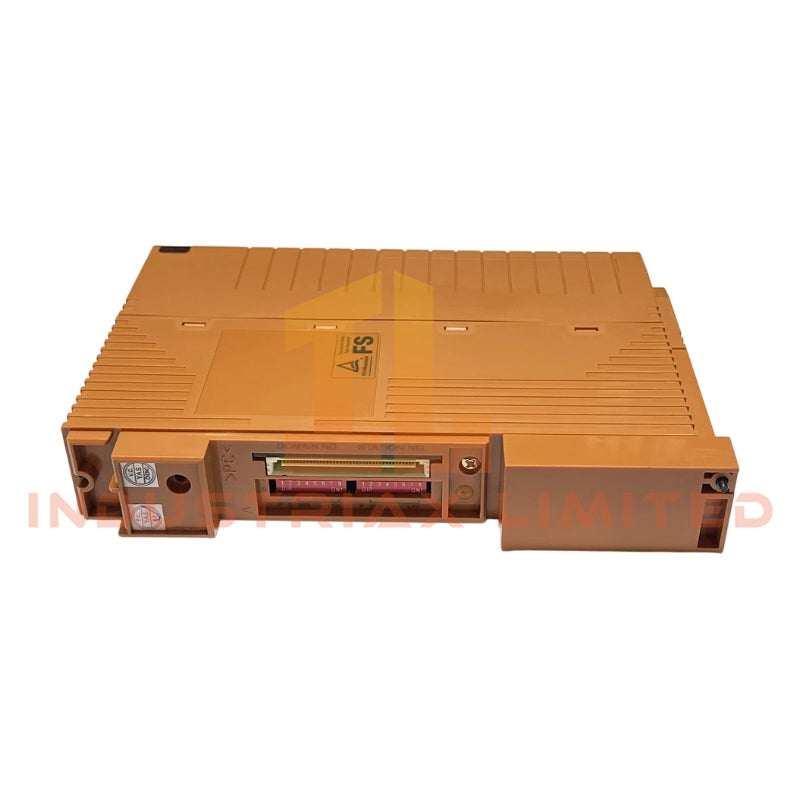

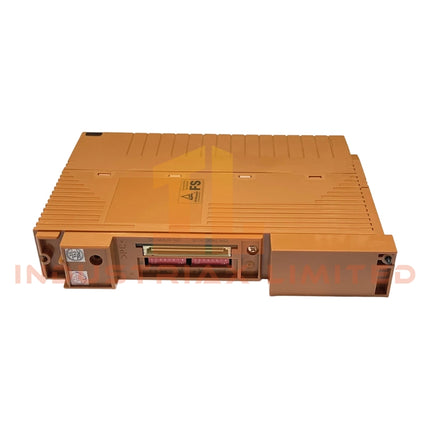

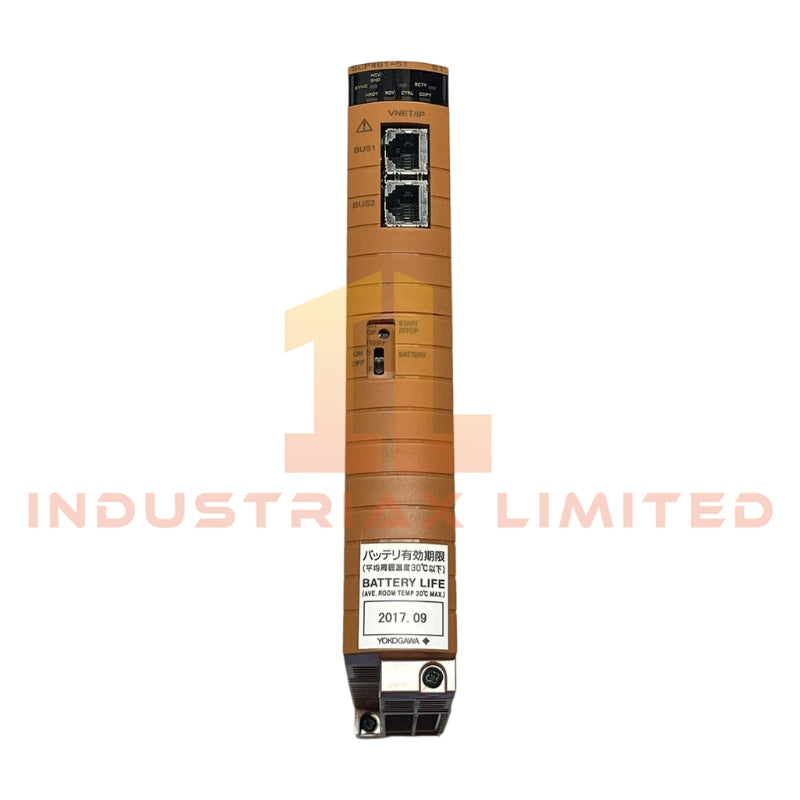

The SCP461-51 processor module is the central computing unit for Yokogawa's CENTUM VP series of distributed control systems (DCS). Engineered for high-reliability in mission-critical industrial automation, it delivers deterministic real-time control and seamless system integration.
Core Technical Specifications
-
Processor Core: Incorporates a 32-bit single-core ARM Cortex-A57 CPU, clocked at 1.5 GHz, specifically tuned for real-time operating system (RTOS) tasks and complex control algorithms.
-
Operating Systems: Offers multi-OS support for deployment flexibility, including VxWorks (for hard real-time performance), specific embedded Windows versions, and Linux distributions, as validated by Yokogawa.
-
High Availability: Supports 1:1 hot standby redundancy configuration. Automatic failover is achieved within 100 milliseconds to maintain continuous process control without interruption, essential for sectors like power generation and petrochemicals.
-
Electrical Characteristics: Powered by a 24 VDC supply (range: 20.4 to 26.4 VDC). Nominal power dissipation is 12 watts. Module configuration data is retained via non-volatile memory; sustained operation during outages depends on external plant UPS systems.
Environmental Ratings
-
Operational Temperature: -20°C to +70°C (Extended range of -40°C to +70°C available with /G3 option).
-
Storage Temperature: -30°C to +85°C.
-
Relative Humidity: 5% to 95% (non-condensing).
-
Vibration Resistance: Withstands continuous vibration of 2.0 m/s² (14 Hz to 100 Hz).
-
Robustness Features: Designed for harsh environments; supports optional surge-absorbing terminal blocks (e.g., Yokogawa model ATD5S-10) for protection against voltage transients.
Application Scenarios
This module is designed for critical control applications requiring maximum uptime and deterministic response. Typical installations include:
-
Energy: Supervisory control in nuclear and thermal power plants.
-
Oil & Gas: Safety instrumented systems (SIS) and burner management.
-
Chemicals: Batch process control in pharmaceutical and fine chemical production.
-
Infrastructure: Primary control loops in large-scale water treatment and distribution networks.
Frequently Asked Questions (FAQ)
Q: What is the main advantage of the redundant configuration for the SCP461-51?
A: Redundancy eliminates a single point of failure. If the primary processor module fails, the standby unit takes over control within 100 ms, preventing an unplanned process shutdown which is critical for safety and production continuity.
Q: Can this module be used in an outdoor enclosure?
A: Yes, its wide operating temperature range and high humidity tolerance make it suitable for uncontrolled environments, provided the enclosure protects it from direct exposure to sunlight, rain, and condensing conditions.
Q: How does this processor differ from a standard PLC CPU?
A: While both perform control, the SCP461-51 is integrated into Yokogawa's CENTUM VP DCS ecosystem. It offers superior scalability, integrated engineering tools for large I/O counts, advanced process control libraries, and seamless integration with Yokogawa's field instruments and safety systems.
