Description

Product Description

Overview

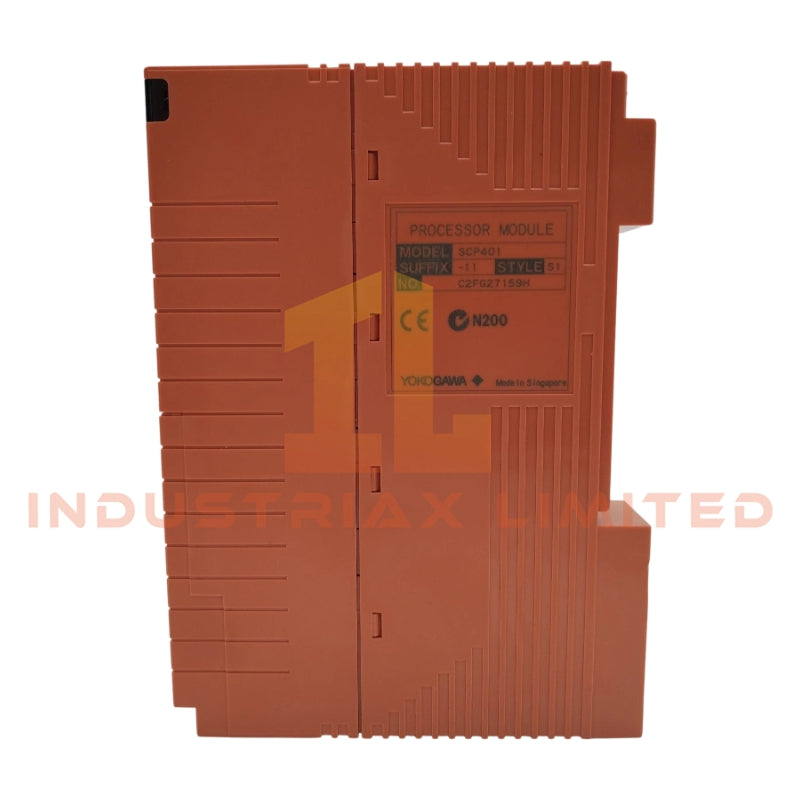

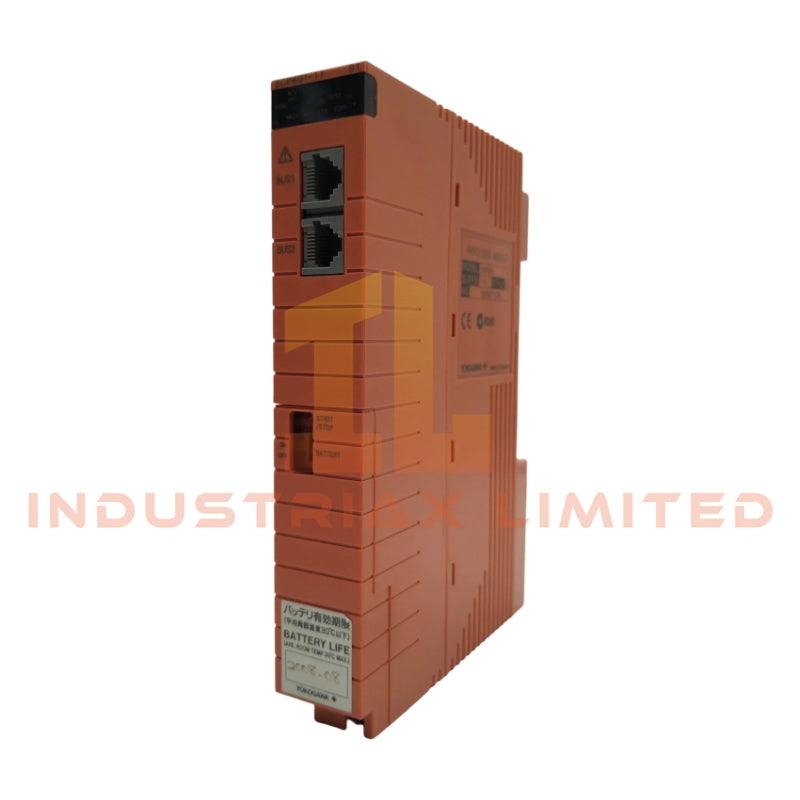

The SCP401-11 communication processor from Yokogawa is engineered for robust industrial data management and system integration. It delivers high-speed processing and supports multiple communication protocols, ensuring seamless connectivity within control systems. Its compact design allows easy integration into existing setups, making it ideal for applications requiring reliable and efficient communication performance.

Key Features

• Supports multiple industrial communication protocols for flexible system integration

• High-speed processing for enhanced system performance and reliability

• Compact form factor for straightforward installation in control cabinets

• DIN rail compatible mounting for convenient deployment

• Isolation voltage of 1500 VAC between input and output for enhanced safety

• EMC compliant to EN61000-6-2 and EN61000-6-4 standards

• Vibration-resistant design for harsh industrial environments

Technical Specifications

General

• Power Supply: 24 VDC ± 20%

• Maximum Power Consumption: 5 W

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -20°C to 70°C

• Humidity: 10% to 90% RH, non-condensing

Communication

• Baud Rate: Up to 115.2 kbps

• Data Bits: 7 or 8 bits selectable

• Parity: None, Even, or Odd

• Stop Bits: 1 or 2

• Maximum Communication Distance (RS-485): 1200 m

Physical

• Dimensions: 30 mm (W) x 100 mm (H) x 85 mm (D)

• Weight: Approx. 150 g

• Mounting: DIN rail compatible

Safety and Compliance

• Isolation Voltage: 1500 VAC (input to output, 1 min)

• EMC Standards: EN61000-6-2, EN61000-6-4

• Vibration Resistance: 5 to 8.4 Hz, 3.5 mm amplitude; 8.4 to 150 Hz, 9.8 m/s²

Applications

Suitable for distributed control systems, factory automation, and industrial monitoring setups where reliable, high-speed communication between modules is required. Its compact and robust design supports integration into space-constrained control cabinets in challenging industrial conditions.

FAQ

Q: Can the SCP401-11 handle multiple communication protocols simultaneously?
A: Yes, it is designed for seamless connectivity across different protocols in complex automation networks.

Q: What is the maximum cable length for RS-485 communication?
A: The maximum supported distance is 1200 meters.

Q: Can this module operate in vibration-heavy environments?
A: Yes, it meets industrial vibration resistance standards from 5 Hz to 150 Hz.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
