Description

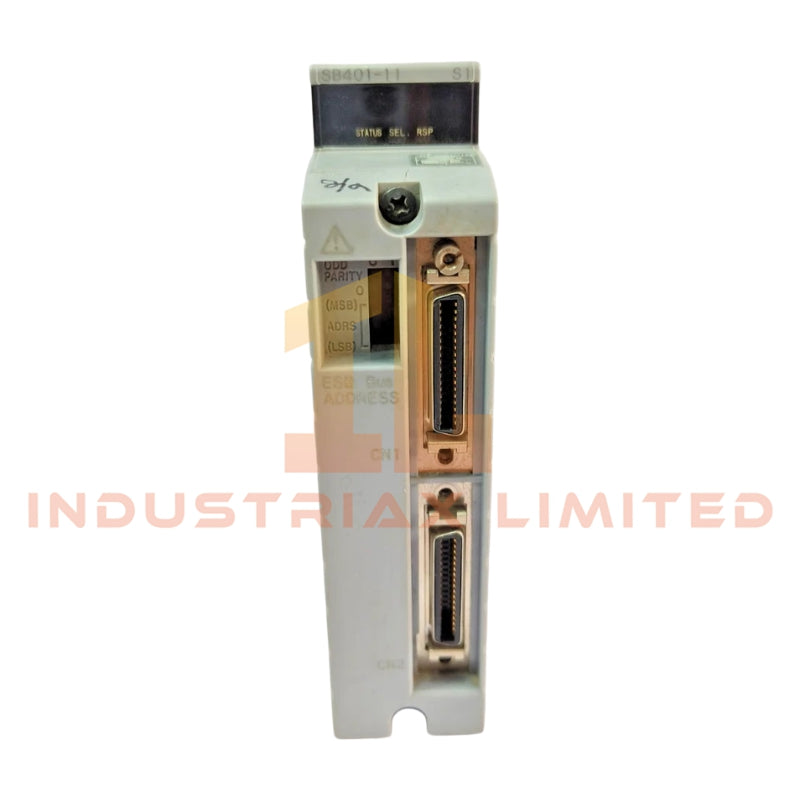

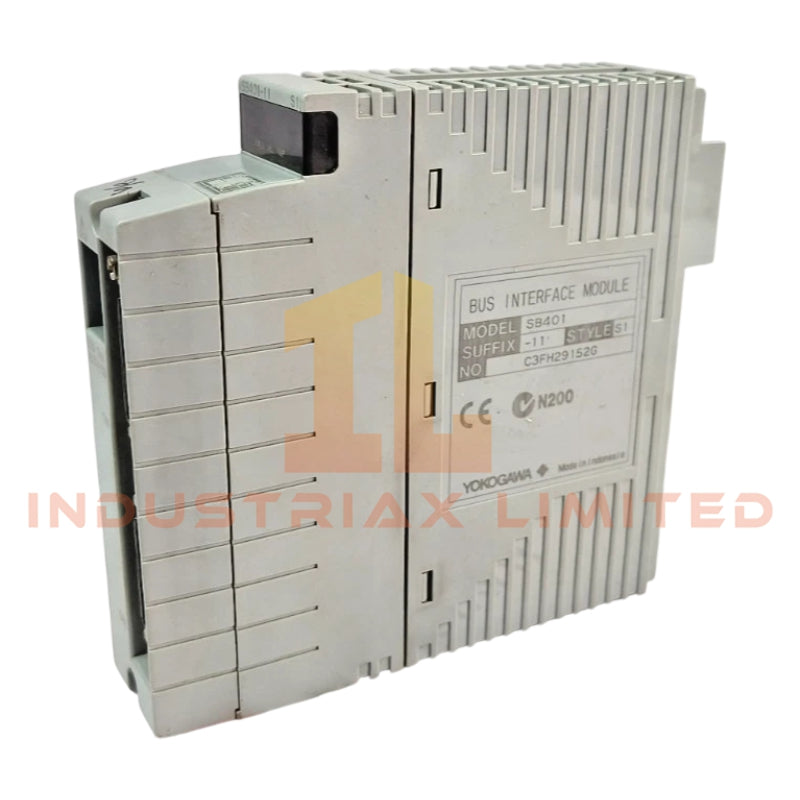

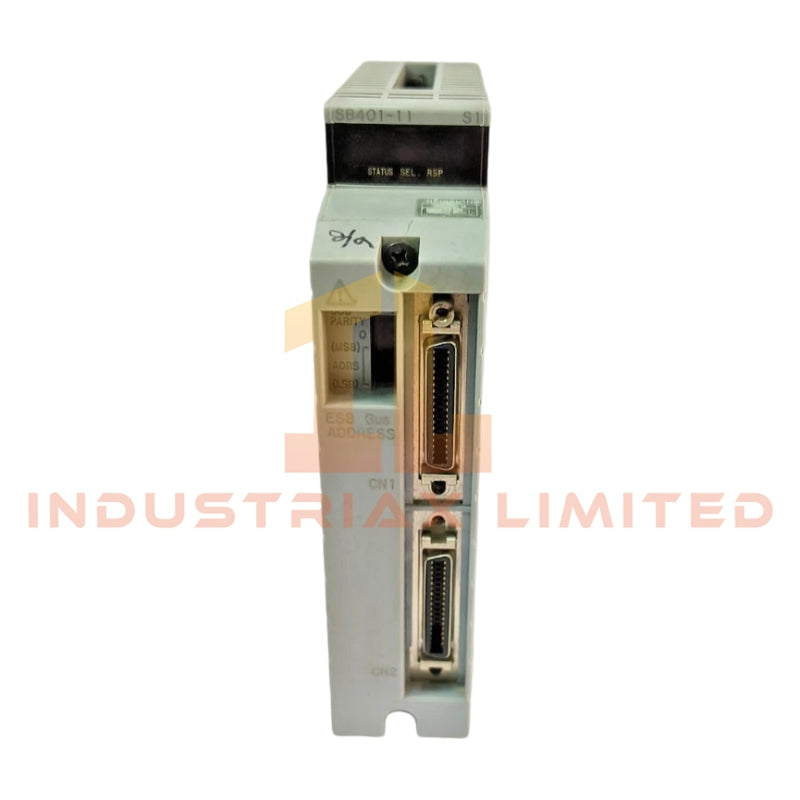

Yokogawa SB401-11 ESB Bus Interface Slave Module

Configured for ESB backplane data exchange in CENTUM VP/CENTUM CS 3000 environments, the Yokogawa SB401-11 (SB401-11 ESB Bus Interface Slave Module) provides direct physical/electrical execution within ESB dual-redundant bus architectures. The module operates as a slave interface node, transferring I/O data frames between field control units and distributed node backplanes.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa SB401-11
Origin	Japan
Weight	1.5 kg
Dimensions	2.5 cm x 12.7 cm x 12.7 cm / 1.0 in x 5.0 in x 5.0 in
OperatingTemp	0 to 60 degC
PowerConsumption	Not specified (backplane supplied)
Core Function	ESB Slave Bus Interface for FCU communication
Network Topology	Dual-redundant ESB bus compatible
Isolation	Backplane-to-communication electrical isolation

Process Control Bus Interface Characteristics

FOUNDATION Fieldbus / Channel Communication Behavior

The Yokogawa ESB architecture associated with the SB401-11 supports deterministic backplane data exchange between I/O subsystems and Field Control Units (FCU). Within Yokogawa DCS implementations, ESB-side synchronization aligns with cyclic process data refresh cycles rather than asynchronous polling.

Channel-to-channel separation is maintained at the node interface level, ensuring isolation between backplane signaling domains and field communication routing paths. The module is designed to maintain stable frame alignment under redundant ESB configurations where dual-path arbitration is active at the baseplate level.

Frequently Asked Questions

Q1: Can the SB401-11 operate in a hot-swap configuration?
A: Hot-swap behavior depends on the baseplate and system configuration. The module itself is designed for backplane insertion, but live replacement requires FCU-side redundancy and ESB path stabilization.

Q2: Does the module consume external field loop power?
A: No. The SB401-11 is powered via the system backplane. No direct field loop power consumption is associated with ESB communication handling.

Q3: Is dual-redundant ESB operation automatic?
A: Redundancy is handled at the system architecture level. The module supports dual ESB paths when installed in a redundant baseplate configuration.

Field Installation Guidelines

• Insert module only into compatible ESB baseplate slots designed for FCU-linked nodes
• Ensure system power is isolated before mechanical insertion or removal
• Maintain proper shielding continuity on ESB backplane grounding structure
• Avoid signal cable routing parallel to high-noise power conductors
• Verify redundant ESB path alignment before restoring system power
• Use standard industrial grounding practices for cabinet-level backplane reference integrity

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
