Description

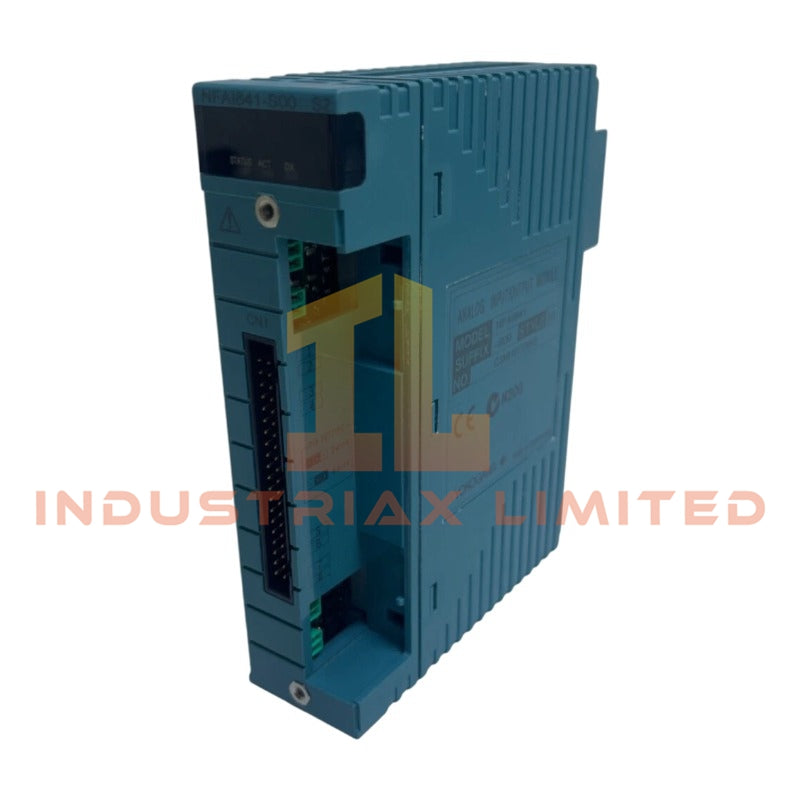

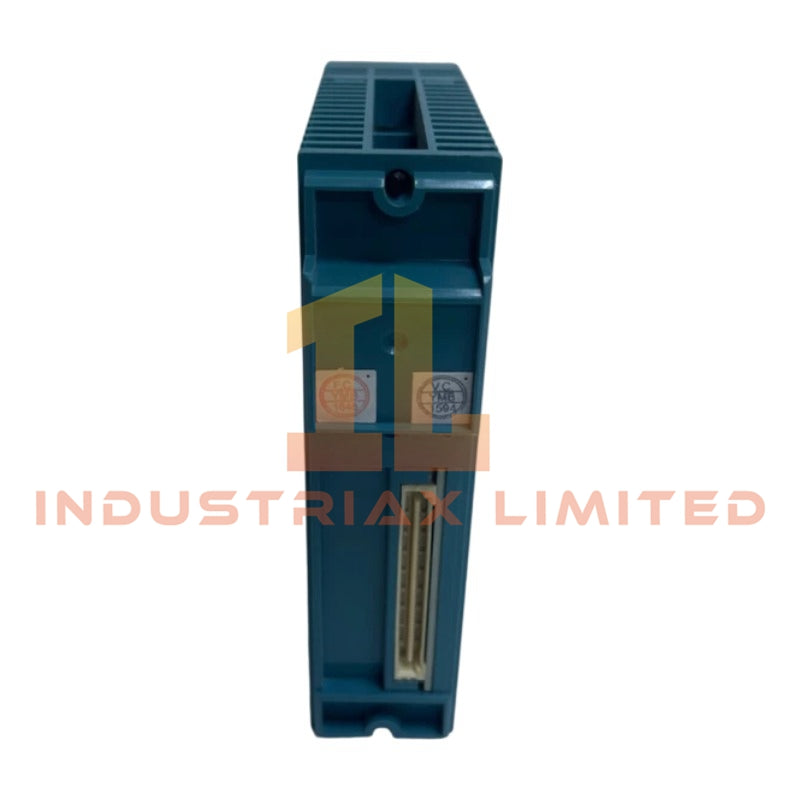

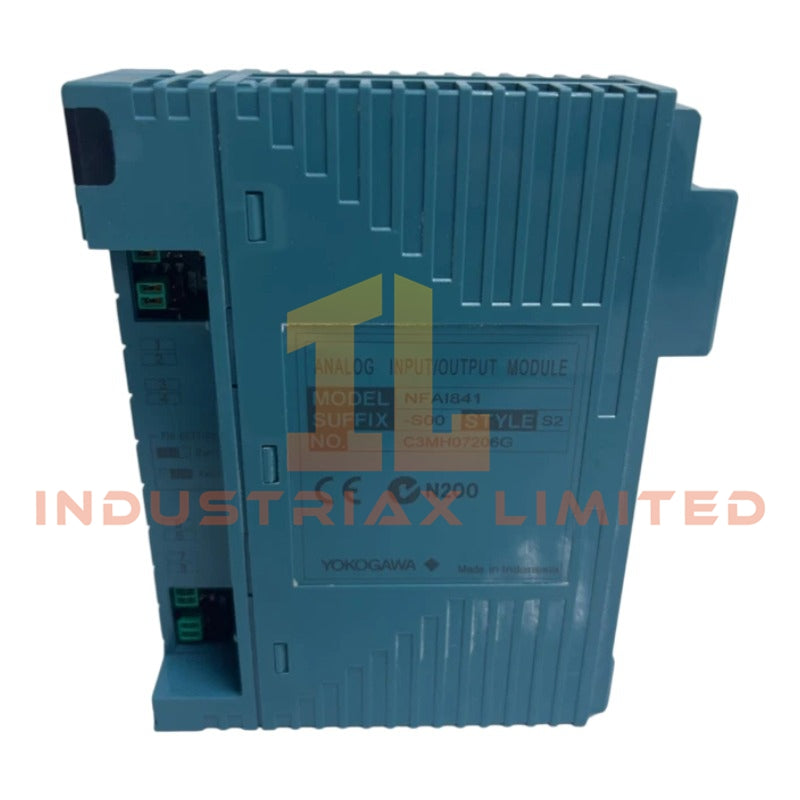

Yokogawa NFAI841-S00 Analog I/O Module

Configured for direct electrical execution of 4-20 mA signal acquisition and analog current output handling in CENTUM VP and CENTUM CS 3000 FIO environments, the Yokogawa NFAI841-S00 (NFAI841-S00 Analog I/O Module) provides discrete channel-level analog interfacing without external signal conditioning stages.

Suffix Breakdown & Model Matrix

• NFAI841: Analog Input/Output mixed I/O module family within Yokogawa FIO system
• S: Standard configuration variant
• 0: Fixed hardware revision identifier
• 0: Basic type designation without extended options

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa NFAI841-S00
Origin	Japan
Weight	Approx. 0.43 kg
OperatingTemp	0 degC to 60 degC
PowerConsumption	5 VDC, max 410 mA
Input Signal	4-20 mA DC
Output Signal	4-20 mA DC
Channels	4 input + 4 output
Input Impedance	250 ohm
Load Resistance (Output)	<= 750 ohm
Accuracy	Input +/-0.1% FS, Output +/-0.3% FS
Isolation	Channel-to-channel and system isolation (photo-coupled)
Withstanding Voltage	1500 VAC
Refresh Cycle	10 ms

Yokogawa DCS Analog Loop Isolation & HART Signal Handling

The NFAI841-S00 implements channel-to-channel electrical isolation using photo-coupled barriers to prevent ground loop propagation across mixed analog I/O paths. Each 4-20 mA loop is independently referenced, allowing simultaneous current sourcing and sinking operations within a single module slot without cross-channel interference.

HART-compatible field devices can be interfaced over the same 4-20 mA loop, enabling bidirectional digital overlay communication for device diagnostics and parameter access. Signal integrity is maintained through loop impedance control centered around 250 ohm input loading, ensuring stable modulation detection for HART FSK signaling under standard DCS scan cycles.

Backplane execution is synchronized with a 10 ms refresh cycle, decoupling field signal sampling from controller scan timing.

Frequently Asked Questions

Q: Can input and output channels operate simultaneously in NFAI841-S00?
A: Yes. Input and output sections are electrically independent with internal isolation, allowing concurrent 4-20 mA sourcing and measurement within the same module.

Q: Does the module support hot-swap replacement?
A: Replacement is supported at system level depending on CENTUM node configuration; field loops must be de-energized or placed in safe state before module extraction to avoid transient current spikes.

Q: What is the impact of backplane current consumption on slot density?
A: Each module draws up to 410 mA at 5 VDC. Slot loading must remain within node power budget to maintain stable backplane voltage regulation.

Field Installation Guidelines

• Maintain shield continuity across analog loop cabling; terminate shield at single-point ground within control cabinet only
• Keep 4-20 mA loop wiring physically separated from high-voltage switching conductors to minimize inductive coupling
• Ensure correct polarity alignment for both input transmitter loops and output actuator loops before energization
• Verify module seating force and backplane connector engagement prior to system power application
• Avoid exceeding 750 ohm total loop resistance on output channels to prevent current saturation or clipping
• Use twisted-pair instrumentation cable for all analog channels to maintain signal integrity over extended runs

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
