Description

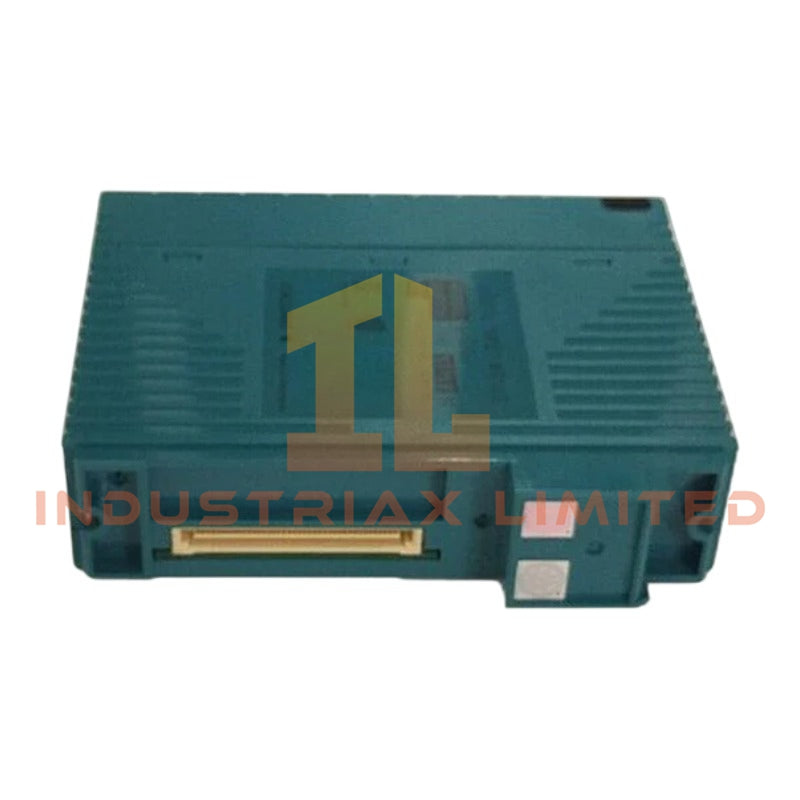

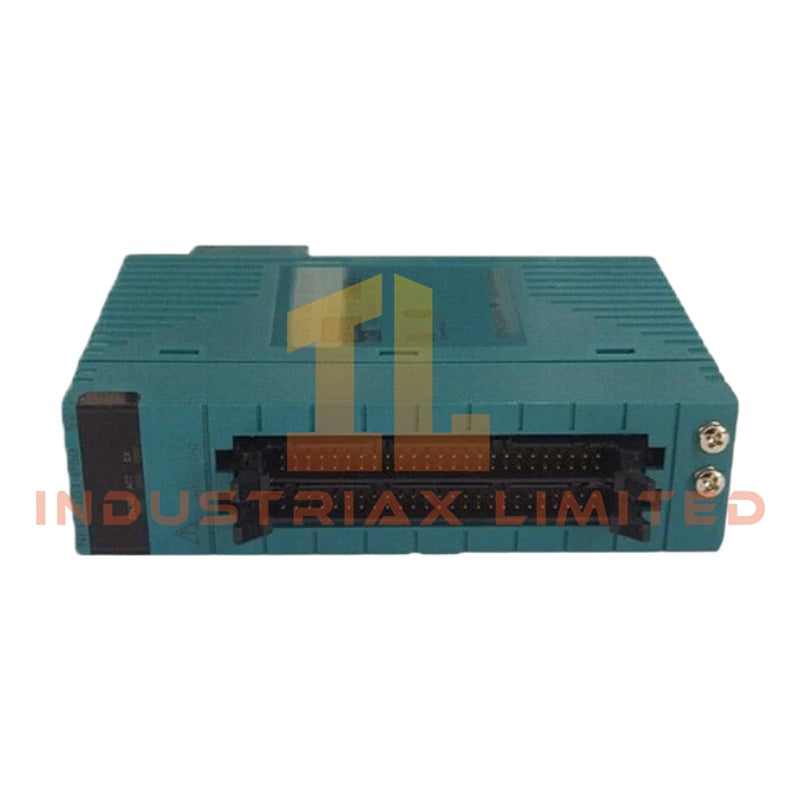

Yokogawa NFAI841-S00/A4S00 Analog I/O Module
Configured for simultaneous 4-20 mA signal acquisition and analog current output control in CENTUM VP and CENTUM CS 3000 systems, the Yokogawa NFAI841-S00/A4S00 (NFAI841 Analog I/O Module) provides direct electrical interfacing with field devices while maintaining system-level isolation.
Suffix Breakdown & Model Matrix
NFAI841: Mixed analog input/output module family for Yokogawa FIO systems
-S00: Standard type without HART communication or explosion protection
/A4S00: Terminal block configuration for pressure-clamp or standard field wiring
Hardware Specifications
Parameter
Specification
ModelBrand
Yokogawa NFAI841-S00/A4S00
Origin
Japan
Weight
Approx. 0.35 kg
Dimensions
Not specified
OperatingTemp
0 degC to 60 degC
PowerConsumption
5 VDC max 230 mA, 24 VDC max 190 mA
Input Signals
4-20 mA DC
Output Signals
4-20 mA DC
Channels
4 input + 4 output
Input Impedance
250 ohm
Output Load Resistance
0 to 750 ohm
Accuracy
Input +/-0.1% FS
Refresh Cycle
10 ms
Isolation
Channel-to-channel and system-to-field isolation
Withstand Voltage
1500 VAC
Yokogawa DCS Analog Loop & Channel Isolation
The NFAI841-S00/A4S00 module features galvanic isolation between each analog channel and the system internal circuits to prevent ground loop interference. 4-20 mA loops support HART overlay signaling for device diagnostics and configuration without additional cabling. Each analog input and output channel maintains independent signal referencing, ensuring integrity during simultaneous acquisition and actuation. Cold junction compensation (CJc) is implemented to maintain accuracy over the specified temperature range.
Frequently Asked Questions
Q: Can this module be hot-swapped during operation? A: Yes. The module supports hot-swappable insertion and removal under power, but dual-redundant loop configuration is recommended for critical PID loops to prevent transient signal loss.
Q: What is the maximum output load allowed? A: Output channels can drive loads up to 750 ohm. Exceeding this may result in current clipping or voltage saturation.
Q: How is channel isolation maintained? A: Each input and output channel is isolated using photo-coupled barriers, preventing cross-talk and ground loop interference while maintaining full compliance with DCS system safety limits.
Field Installation Guidelines
Use twisted-pair shielded cable for all analog loops; terminate shields at a single cabinet ground point
Maintain physical separation from high-voltage power conductors to reduce induced noise
Confirm correct loop polarity before energizing modules
Ensure secure module seating and proper backplane engagement to avoid intermittent contacts
Avoid exceeding specified ambient temperature (0-60 degC) and humidity (10-90% RH) for stable operation
Check terminal block wiring per /A4S00 configuration to ensure consistent current loop connectivity
