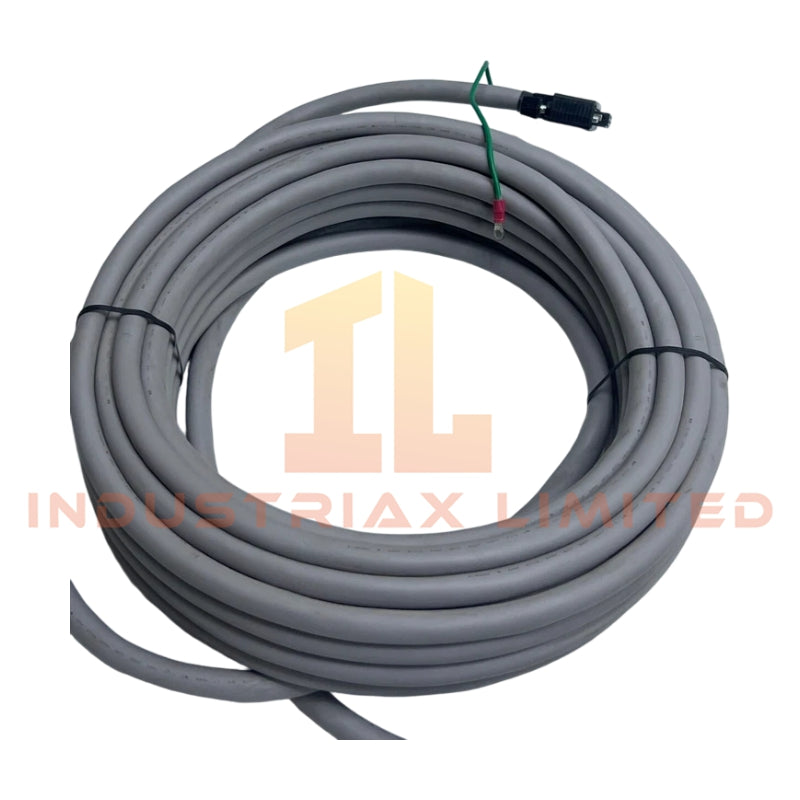

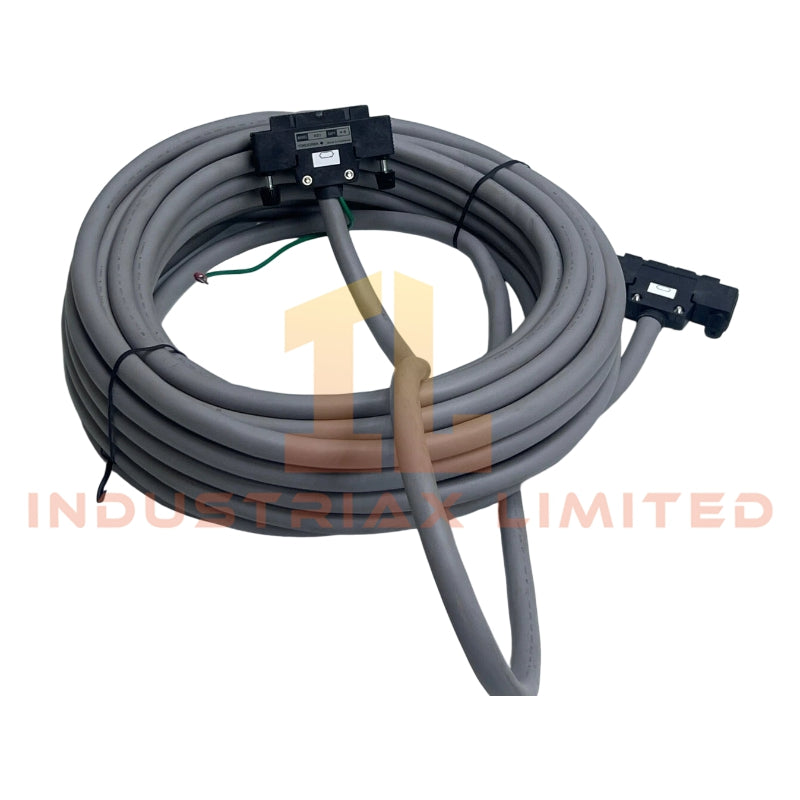

Yokogawa KS1-20 Interface Signal Cable

The Yokogawa Electric Corporation KS1-20 (KS1-20) Interface Signal Cable serves as a dedicated physical interconnect assembly for CENTUM VP / CS 3000 I/O signal routing, executing direct pin-to-pin electrical transfer between high-density field I/O modules and system-side terminal assemblies. Configured for 40-pin dual-ended architecture, it supports deterministic signal continuity for multi-channel analog and digital I/O backplane extensions within Yokogawa DCS hardware chains.

SuffixBreakdown & Model Matrix

• KS1: Interface signal cable family designation for DCS I/O interconnection
• -20: Factory-defined cable length class of 20 m
• No additional functional suffix decoding is applicable beyond mechanical length and assembly revision coding

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa KS1-20
Origin	Japan
Weight	Approx. 2.0 kg
Dimensions	20 m length (factory assembly)
OperatingTemp	-20 degC to +70 degC
PowerConsumption	Passive component (no electrical consumption)

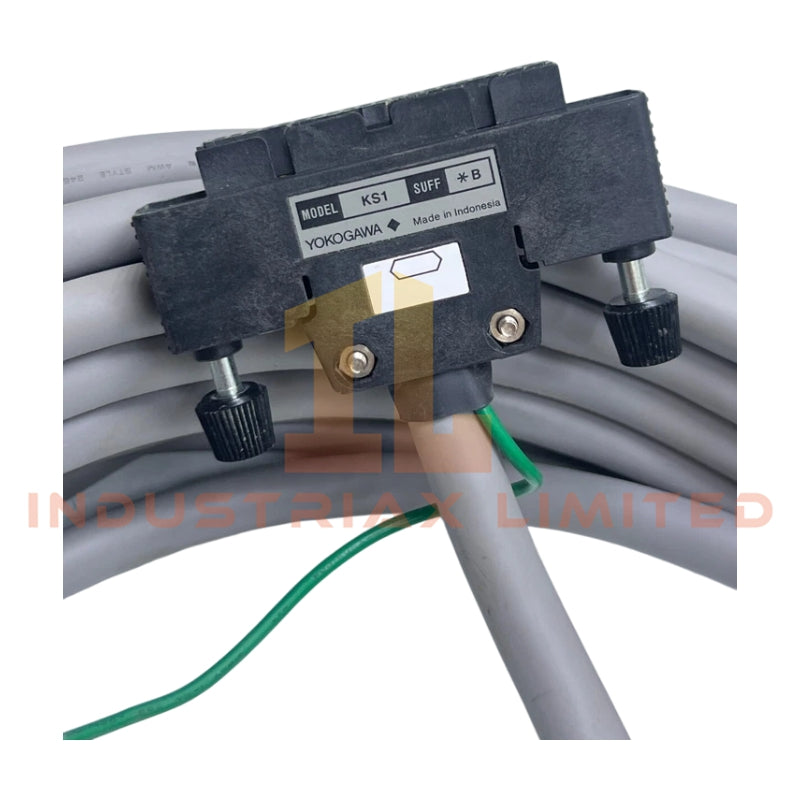

Connector Type	40-pin male to 40-pin male
Cable Structure	20-pair (40-core) shielded twisted assembly
System Compatibility	CENTUM VP, CENTUM CS 3000, ProSafe-RS
Signal Interface	Multi-channel analog/digital I/O interconnect

Process Signal Integrity Characteristics (DCS Interconnect Layer)

Within Yokogawa Electric Corporation DCS architectures, the KS1-20 cable maintains controlled impedance continuity across high-density signal lanes linking FIO modules and termination boards. Shielding architecture supports channel-to-channel isolation behavior consistent with low-level analog transmission (4-20 mA loop signals and low-voltage discrete I/O). The multi-pair layout minimizes cross-talk coupling between adjacent signal groups during extended cabinet routing, particularly in dense CENTUM I/O nests where parallel signal bundling is present. Ground reference continuity is maintained through overall braid shielding termination at cabinet entry points.

Frequently Asked Questions

Q1: Can KS1-20 be hot-swapped during system operation?
A1: No. The cable is a passive interconnect assembly without hot-swap design. System power isolation is required before connector disengagement to avoid pin-level transient coupling.

Q2: Does the 40-pin interface support mixed analog and digital signals simultaneously?
A2: Yes. The pin matrix is designed for mixed I/O allocation, provided mapping follows CENTUM I/O assignment rules at the module level.

Q3: Is shielding continuity dependent on both connector ends?
A3: Yes. Shield termination integrity depends on proper mating at both 40-pin connectors and cabinet grounding reference points.

Field Installation Guidelines

• Maintain minimum bend radius consistent with multi-pair shielded industrial cables to prevent conductor fatigue at connector neck regions
• Ensure full 40-pin connector seating before applying strain relief clamps
• Terminate shield grounding at designated cabinet earth points only; avoid multi-point grounding loops
• Route cable away from high-voltage switching lines and inverter output conductors to reduce EMI coupling
• Use dedicated cable trays or trunking systems to maintain mechanical separation from power wiring bundles

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
