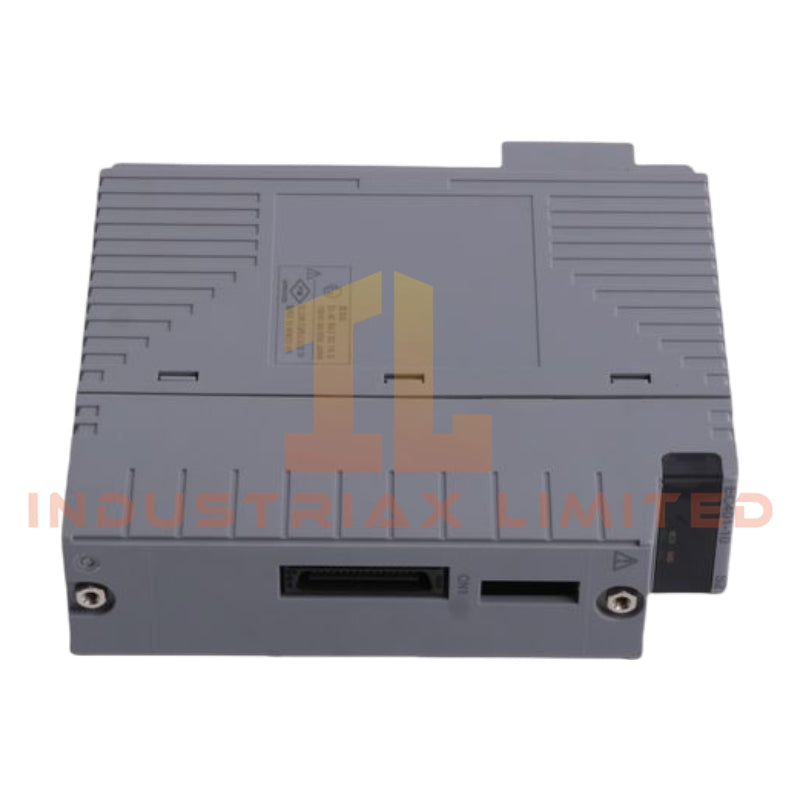

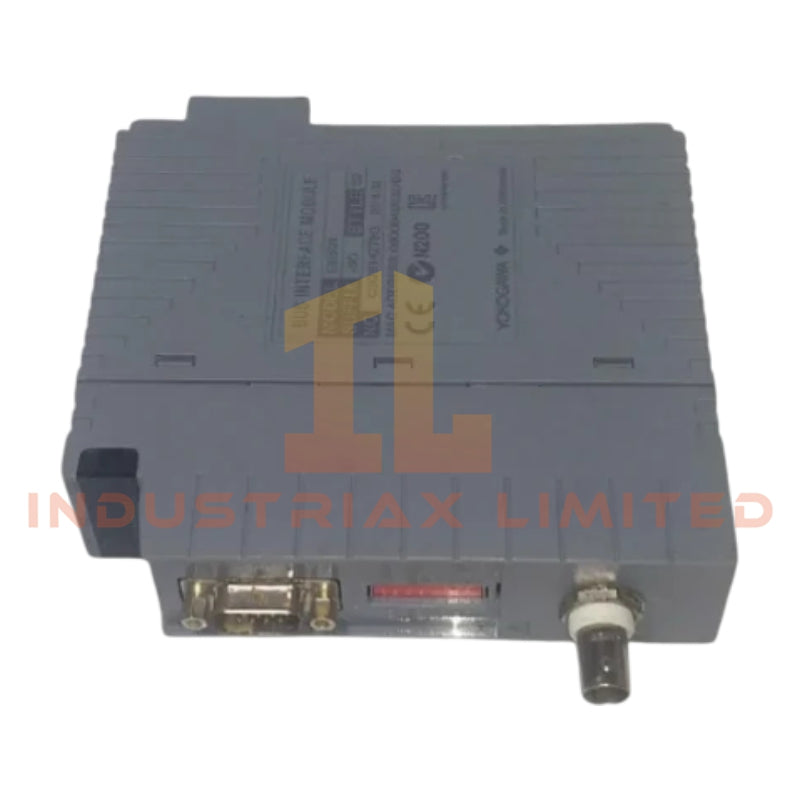

Yokogawa EB401-50 ER Bus Interface Module

The Yokogawa EB401-50, also cataloged as the EB401 ER Bus Interface Module, operates as a dedicated hardware component for high-speed data transfer between field control units and central control systems within CENTUM VP distributed control networks.

Hardware Specifications

Parameter	Specification
Model Brand	Yokogawa EB401-50
Origin	Japan
Weight	0.35 kg
Dimensions	Slot-mounted, standard FCS rack unit form factor
Operating Temp	0 to 50 degC
Power Consumption	Approx. 0.5–0.7 A at 5 V DC
Communication Protocol	Vnet/IP
Bus Type	ER (Extended Remote Bus)
Transmission Speed	10 Mbps
Maximum Transmission Distance	185 meters (coaxial cable YCB141/YCB311)
Redundant Capability	Dual-redundant configuration supported
Installation Factor	Single: 150, Dual: 450
Installation Limitations	ANB10D: Total factor <100; AFV10D/AFV30: Total factor <65

Process Control Connectivity Features

The module provides channel-to-channel isolation between ER Bus communication paths to reduce electrical interference. It supports integration with 4-20 mA HART loop protocol signals where remote I/O modules interface with analog process inputs. Cold junction compensation (CJC) routines are included when the module interfaces with thermocouple signals through connected field units, ensuring temperature measurements remain within specification limits.

Frequently Asked Questions

Q: VnA: Is the EB401-50 hot-swappable during normal system operation?
A: Yes, the module supports online replacement; the FCS manages seamless failover to the redundant module.

Q: VnA: What are the constraints for dual-redundant installation?
A: Maximum installation factor is 450 for a dual-redundant pair, ensuring bus load does not exceed specifications.

Q: VnA: Are firmware versions required to match the EB401-50 revision?
A: Firmware compatibility must be verified with the FCS to maintain bus communication integrity during operations.

Field Installation Guidelines

• Mount the EB401-50 in the designated FCS slot with proper alignment to the backplane.
• Ensure coaxial bus cables (YCB141/YCB311) maintain shielding continuity to minimize EMI.
• Maintain segment distances below 185 meters per bus section.
• Adhere to installation factors to prevent bus overload.
• Provide secure grounding for the rack and module to meet industrial EMC standards.
• Observe separation from high-power cables and avoid tight bending radii on coaxial lines.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
