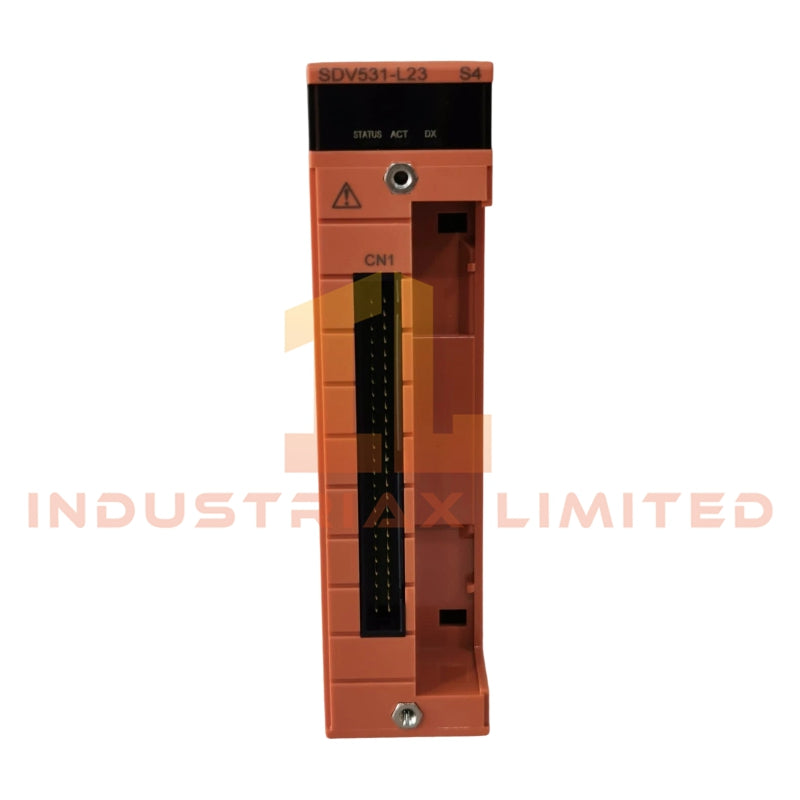

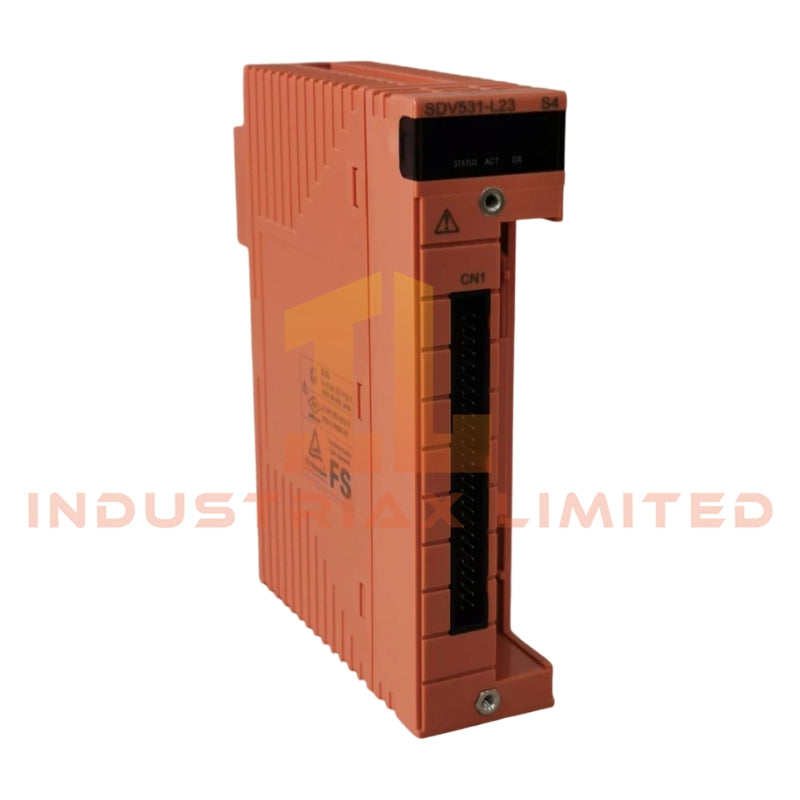

Yokogawa SDV531-L23 Digital Output Module

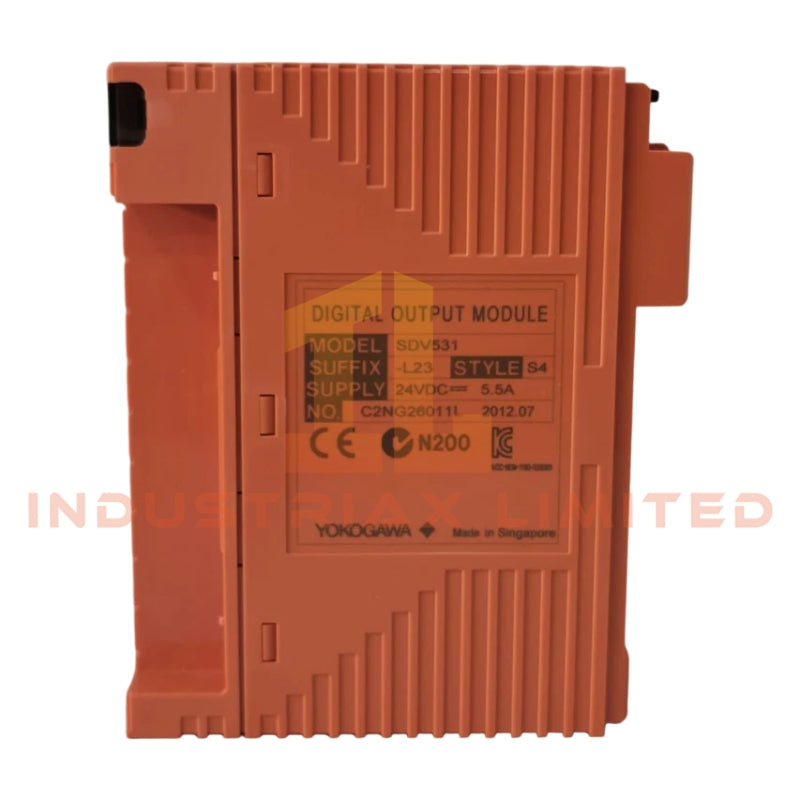

Configured for discrete signal actuation in DCS output subsystems, the Yokogawa SDV531-L23 (SDV531 Digital Output Module) provides direct physical/electrical execution within Yokogawa field I/O architectures. The module performs 24 VDC current-source switching across isolated output channels with defined load and leakage constraints, supporting rack-based control signal distribution.
Suffix Breakdown & Model Matrix
No validated manufacturer-provided suffix decoding for L23 is specified in the supplied data. SDV531 remains the base hardware identifier.
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Yokogawa SDV531-L23 |
| Origin |
Not specified |
| Weight |
Approx. 0.28 kg (terminal block), approx. 0.34 kg (with cable adapter) |
| Dimensions |
Not specified |
| OperatingTemp |
Not specified |
| PowerConsumption |
5 VDC: max 280 mA; 24 VDC: max 140 mA |
| Output Channels |
8 channels, module isolated |
| Output Type |
Current source |
| Output Voltage |
24 VDC |
| Output Voltage Drop |
Max 1 V |
| External Supply |
24 VDC (+20% / -10%), min 5 A |
| Max Load Current |
0.6 A per channel (4.8 A total) |
| Leakage Current (OFF) |
Max 1.6 mA |
| Response Time |
Max 30 ms |
| Withstand Voltage |
2 kV AC, 1 min (signal to system) |
| Load Resistance Range |
40 to 685 ohm |
Channel-to-Channel Isolation and Field Output Integrity (Yokogawa DCS Architecture)
The SDV531 output structure implements channel-to-channel isolation to reduce cross-coupling between switching elements during simultaneous actuation events. In Yokogawa DCS I/O systems, this isolation behavior is typically paired with FOUNDATION Fieldbus/Profibus PA connectivity layers, ensuring that field output switching noise does not propagate into shared communication backplanes. The current-source output topology maintains defined load current boundaries under 24 VDC field excitation conditions.
Frequently Asked Questions
Q: Can the SDV531-L23 outputs be hot-swapped during operation?
A: Hot-swap capability is determined by the system rack architecture rather than the module alone. Output wiring should be de-energized before insertion or removal.
Q: What limits the maximum simultaneous channel loading?
A: The total current capacity (4.8 A) and external 24 VDC supply rating define aggregate loading limits across active channels.
Q: Does channel isolation affect output switching delay?
A: Isolation circuitry does not directly define switching time; the module response time is specified as up to 30 ms.
Field Installation Guidelines
-
Ensure 24 VDC external supply is within specified tolerance before energizing outputs
-
Maintain separation between field wiring and high-noise power conductors
-
Use shielded cables for long output runs and terminate shields at a single-point ground
-
Verify load resistance remains within specified 40 to 685 ohm range
-
Confirm correct seating of pressure clamp terminal or MIL cable interface before commissioning
