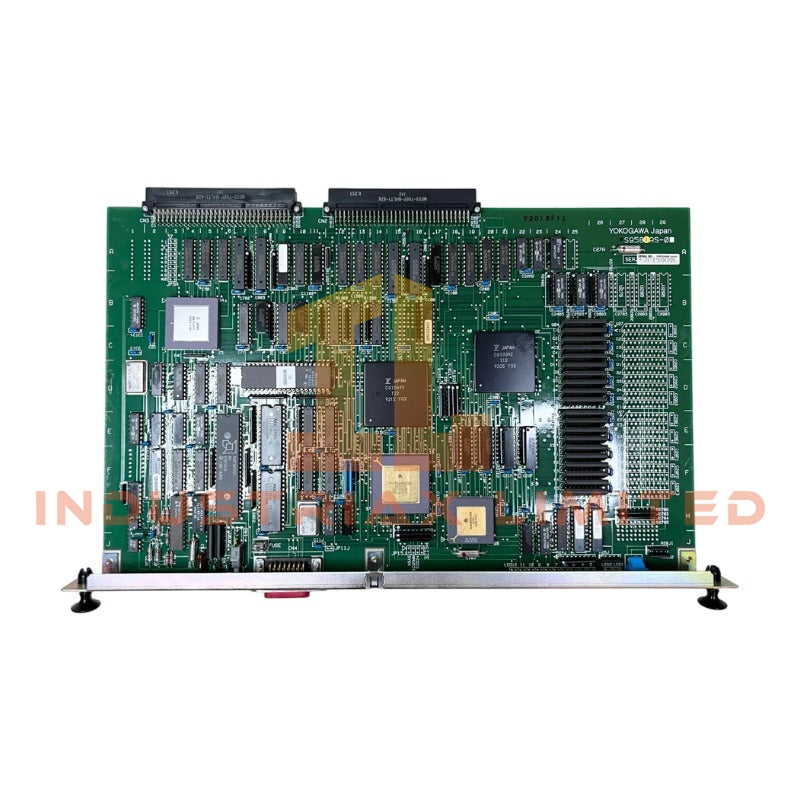

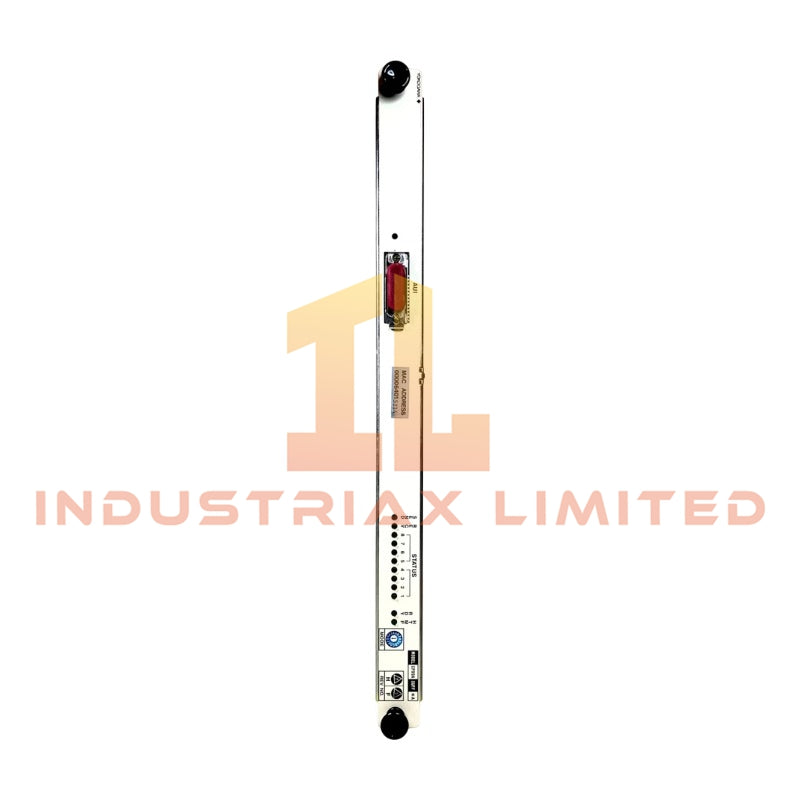

Yokogawa CP99A-A Processor Card

Configured for processor execution and interface handling in Yokogawa Centum XL and micro XL systems, the Yokogawa CP99A-A (CP99A-A Processor Card) provides direct physical and electrical execution. The Yokogawa CP99A-A processor card is installed as a dedicated control-system hardware component for procedure management, configuration functions, system monitoring, and controller-level data processing through the DCS backplane architecture.

Suffix Breakdown & Model Matrix

The supplied documentation identifies the module as CP99A-A, with associated references CP99A*A and S9581AS-0. No official suffix matrix or option-code decomposition is provided in the available source material; therefore, no further breakdown is included.

Hardware Specifications

Parameter	Specification
Model	CP99A-A
Brand	Yokogawa Electric Corporation
Product Type	Processor Card / Interface Module Card
System Compatibility	Centum XL, micro XL
Processor Speed	800 MHz
Memory Capacity	512 MB DDR4 RAM
Input Voltage	24 VDC
Power Consumption	15 W
Interface Ports	2 x Ethernet, 1 x USB, Card Edge Connector
Output Type	Digital
Cooling Method	Passive Convection
Operating Temp	0 to 50 degC
Storage Temp	-20 to 70 degC
Dimensions	Approx. 10.0 in x 2.0 in x 15.0 in (25.4 cm x 5.1 cm x 38.1 cm)
Weight	Approx. 0.74 kg
Origin	Japan

Channel Isolation and DCS Interface Characteristics

Within distributed control system architectures, processor and interface cards operate in conjunction with field I/O subsystems and communication networks where signal integrity is dependent on proper isolation practices. The CP99A-A is intended for integration within Yokogawa Centum XL and micro XL platforms through its card-edge backplane connection.

When deployed alongside analog instrumentation networks utilizing 4-20 mA signaling, HART-capable field devices, or process communication segments, installation practices should maintain separation between communication wiring, power distribution conductors, and grounding paths according to the host system engineering manual. Electrical isolation performance is determined by the complete control-system assembly rather than the processor card alone.

Frequently Asked Questions

Q: Does the CP99A-A support hot replacement while the control system remains energized?
A: The provided documentation does not explicitly specify hot-swap capability. Replacement procedures should follow the applicable Centum XL or micro XL maintenance manual and site operating procedures.

Q: What communication interfaces are available on the module?
A: The documented interfaces include 2 Ethernet ports, 1 USB port, and a card-edge connector for integration with the host backplane.

Q: What environmental limits apply during operation?
A: The specified operating temperature range is 0 to 50 degC. The specified storage temperature range is -20 to 70 degC.

Field Installation Guidelines

• Verify module part number and system compatibility before insertion into the rack or card cage.
• De-energize equipment when required by plant maintenance procedures and site safety regulations.
• Inspect card-edge contacts for contamination, oxidation, or mechanical damage prior to installation.
• Ensure the module is fully seated in the backplane connector and that all retention hardware is secured.
• Route Ethernet and auxiliary communication cables separately from high-current power conductors where practical.
• Maintain cabinet grounding and shielding practices specified by the DCS manufacturer.
• Confirm adequate enclosure ventilation to support the specified passive convection cooling method.
• After installation, verify processor recognition and diagnostic status through the host Centum XL or micro XL engineering environment.
