Description
Technical Overview

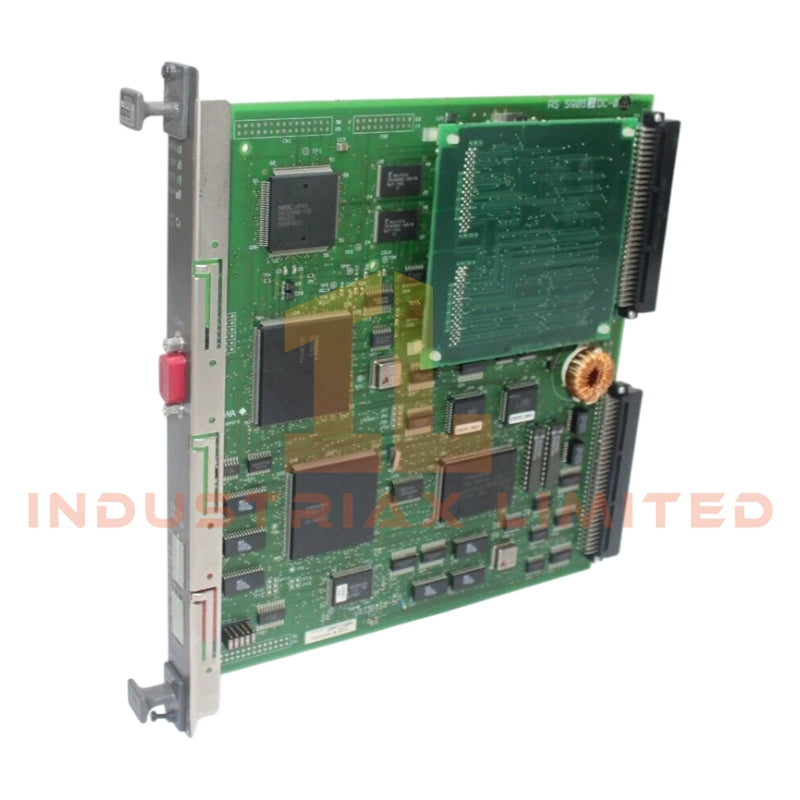

The CP701 (specifically the CP701-S1 variant) functions as the primary computational engine for Yokogawa Field Control Stations (FCS). This module is designed to execute complex control algorithms and manage real-time data processing within the CENTUM series architecture. It provides a stable environment for regulatory control and sequence logic, ensuring high reliability for critical process industries.
The hardware utilizes a dual-clock architecture to balance internal computational speed with external communication synchronization. With 8MB of onboard memory, it supports substantial configuration data and function block execution for medium-to-large scale industrial applications.
Hardware Specifications
The following data represents the core technical parameters for the CP701-S1 processor unit:
-
Manufacturer: Yokogawa
-
Model Designation: CP701
-
Order Part Number: CP701-S1
-
Memory Capacity: 8 MB (ECC supported for data integrity)
-
Internal Processor Frequency: 75 MHz
-
External Bus Clock: 25 MHz
-
Power Consumption: Approximately 5W (dependent on configuration)
-
Weight: 0.3 kg
-
Mounting Type: Rack-mounted within the FCS nest
-
System Architecture: Compatible with CENTUM CS 1000 and CS 3000 systems
Functional Comparison
Unlike higher-tier processor modules that may offer 16MB or 32MB of RAM, the CP701-S1 is optimized for standard field control tasks where memory footprint is managed efficiently. It provides a more cost-effective solution for stations that do not require extensive batch recipe storage or massive historical buffering at the controller level.
Frequently Asked Questions
Question: Is the CP701 compatible with newer CENTUM VP software?
A: Compatibility depends on the specific hardware revision and the bus interface. Generally, these modules are maintained as legacy replacements for CS 3000 systems, but they can coexist in integrated environments via specialized bus converters.
Question: What causes a 'SBY' (Standby) light to blink on this module?
A: This usually indicates a synchronization state in a redundant setup or a configuration mismatch between the primary and secondary CP701-S1 module
