Product Description

Overview

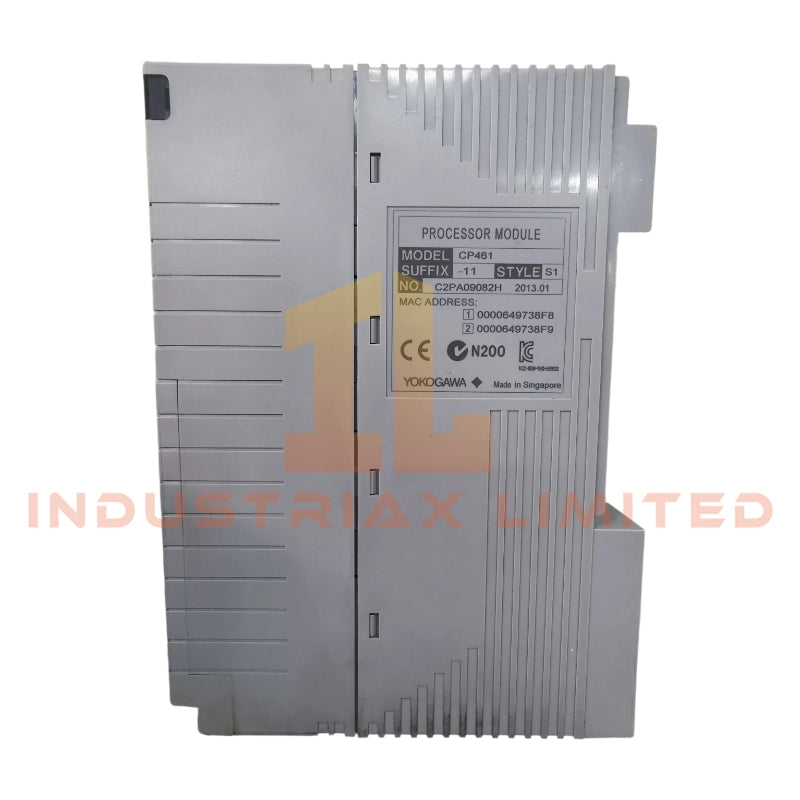

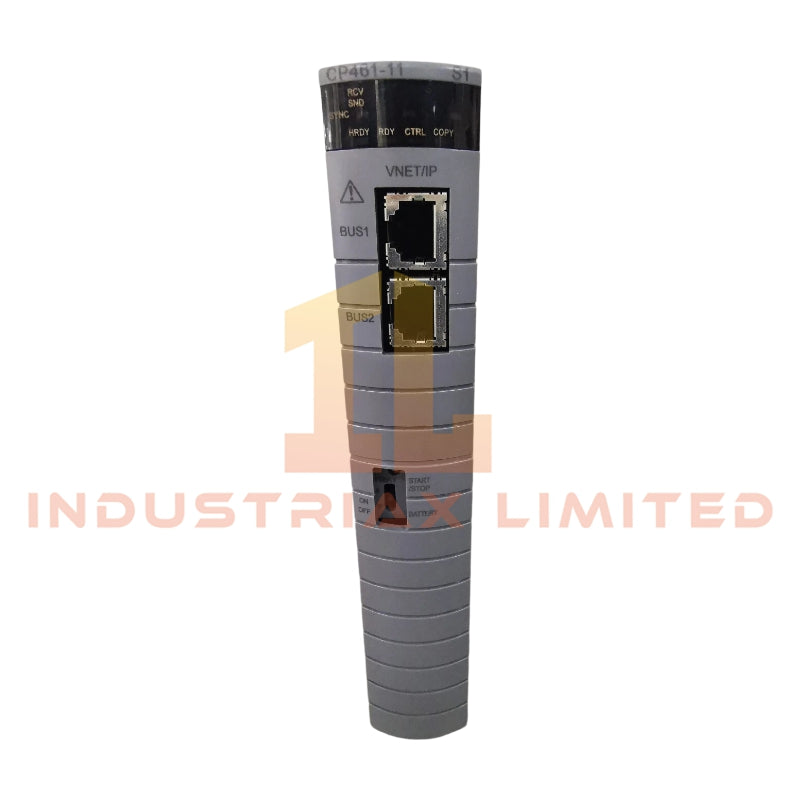

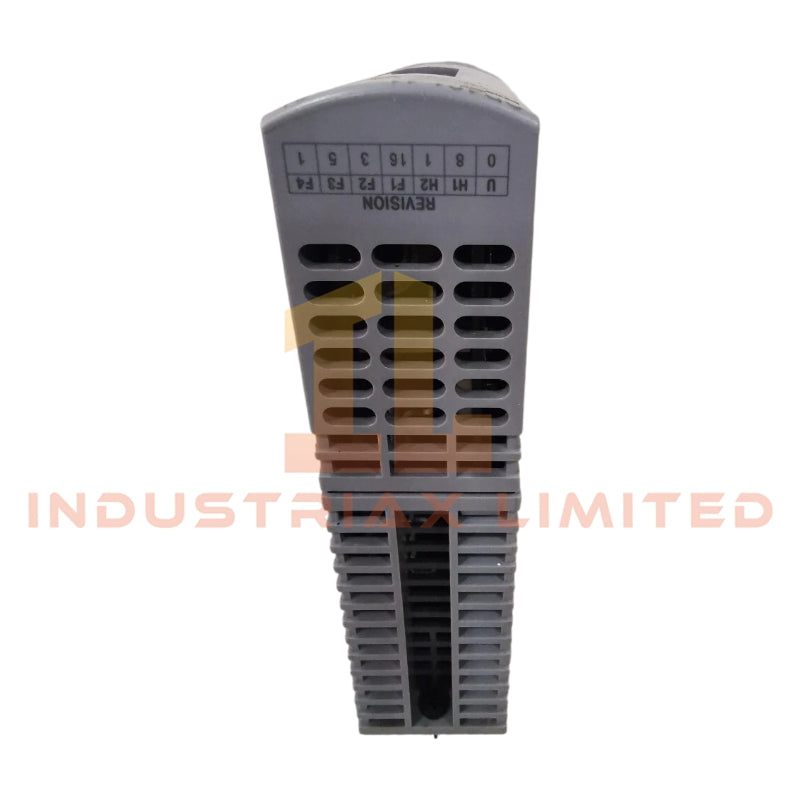

The Yokogawa CP461-11 is a robust processor module engineered for high-reliability industrial control applications. Designed with performance and efficiency in mind, it delivers precise processing capabilities suitable for advanced automation systems.

Technical Specifications

Processor

• CPU: Texas Instruments TMS320F2812 DSP Core

• Clock Speed: 400 MHz

Memory

• On-Chip SRAM: 128 KB

• External SRAM: 1 MB

Input/Output Interfaces

• Serial Ports: 2

• Parallel Port: 1

Power and Electrical

• Typical Power Consumption: 100 mW

• Operating Voltage: 3.3 V (typical for LQFP packages)

Physical Characteristics

• Package Type: 48-pin LQFP (Low-Profile Quad Flat Package)

• Dimensions: Standard 48-pin LQFP footprint

Applications

• Real-time process control in industrial automation

• Data acquisition and signal processing tasks

• Integration into embedded industrial systems

Similar Models Comparison

• CP461-12 offers extended memory options and higher I/O count for complex applications

• CP461-10 is optimized for lower power usage with slightly reduced clock speed

FAQ

Q: Is the CP461-11 compatible with existing Yokogawa control systems?
A: Yes, it integrates seamlessly with other modules in the Yokogawa CP series.

Q: Can the module operate in harsh industrial environments?
A: The module is designed for standard industrial temperature ranges and can be adapted with additional cooling for extreme conditions.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
