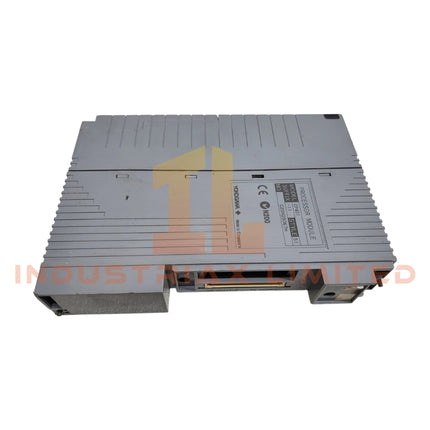

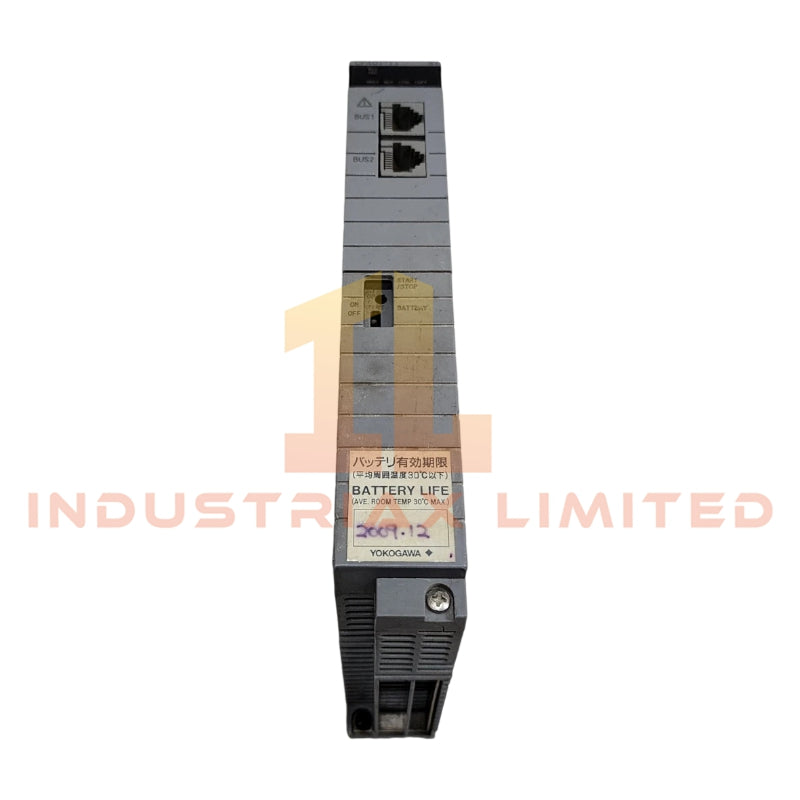

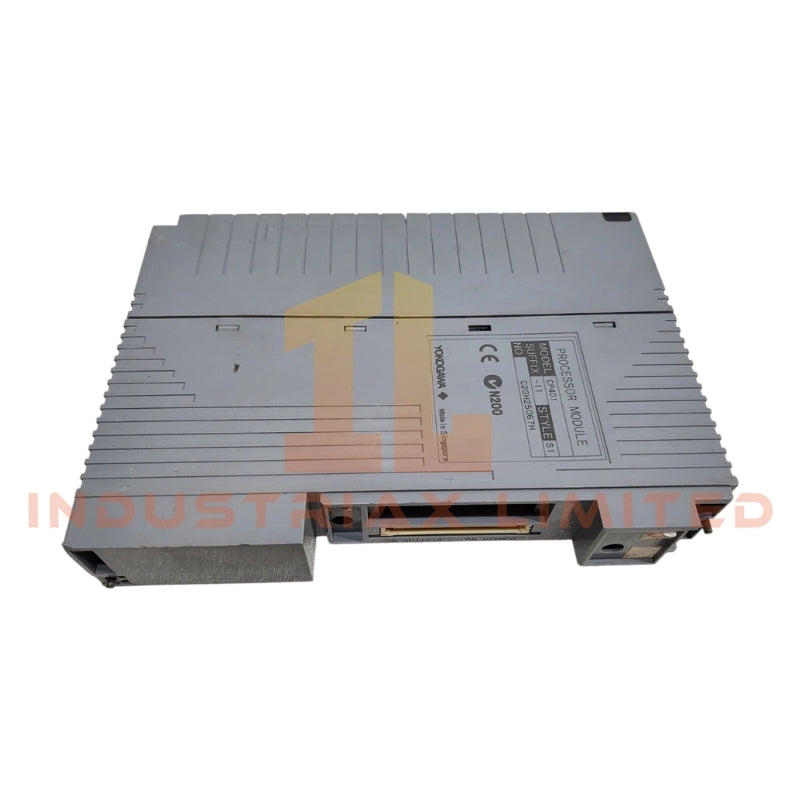

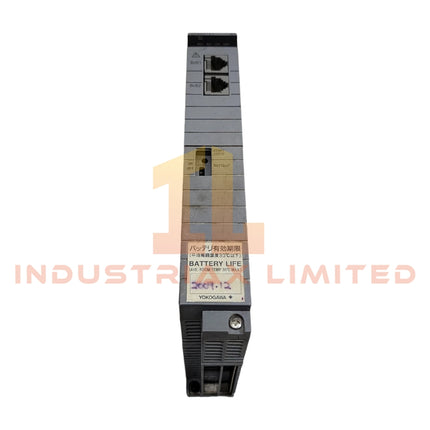

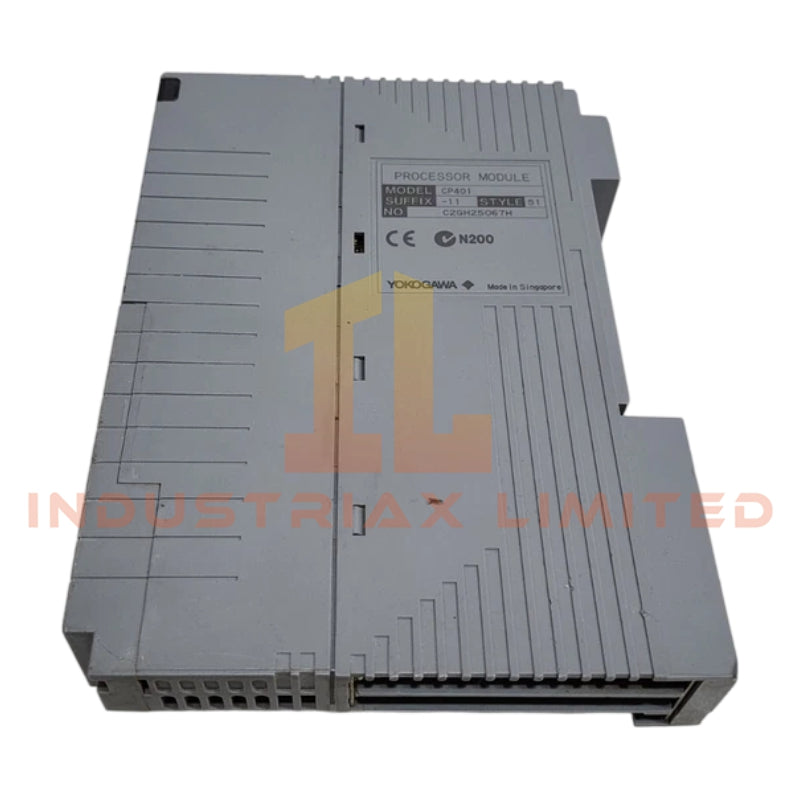

Yokogawa CP401-11 Processor Module
The CP401-11 is a core processor module for Yokogawa's CP Series of programmable logic controllers (PLCs). Designed for industrial automation applications, this module provides the central processing, memory, and fundamental I/O capabilities required for discrete and process control tasks. It forms the basis of a flexible control system that can be expanded with specialized I/O modules.
Technical Specifications
The following specifications detail the core functionality of the CP401-11 module. Note that some detailed specifications, such as exact CPU clock speed and non-volatile memory capacity, are dependent on the specific firmware and application configuration. Please consult the official Yokogawa technical manual for the most precise application-specific details.
-
Manufacturer and Model: Yokogawa CP401-11
-
Physical Dimensions: 60 mm (W) x 210 mm (H) x 160 mm (D)
-
Processing Unit: Integrated CPU for program execution and logic solving. The architecture is optimized for deterministic scan cycles in industrial control environments.
-
Memory: Includes both user-accessible work memory for ladder logic and data storage, as well as system ROM for firmware and boot functions. The available capacity for user programs is application-dependent.
-
Integrated I/O: This base unit provides a standard complement of built-in digital input and output points for direct device connection. The exact number and type (sinking/sourcing) are defined in the hardware manual.
-
Expansion Capability: Supports the connection of modular I/O units via a proprietary expansion bus, allowing for the addition of digital, analog, and special function modules.
-
Communication Protocols: Supports standard industrial communication protocols for network integration. Typical interfaces may include a serial port for legacy device connections (e.g., Modbus RTU) and provisions for network adapter modules (e.g., Ethernet/IP or Modbus TCP/IP) for integration with HMIs and SCADA systems.
-
Status Indicators: Includes LED indicators for power, run status, errors, and I/O activity for at-a-glance diagnostics.
Application Scenarios
The CP401-11 processor is suited for a range of small to medium-scale automation projects. Common applications include:
-
Machinery Control: Management of conveyors, packaging lines, or assembly stations.
-
Basic Process Control: Application in water treatment, HVAC, and building management systems.
-
Distributed Architecture: Acting as a localized controller within a larger distributed control system (DCS) architecture.
Frequently Asked Questions
Q: What programming software is used for the CP401-11?
A: Yokogawa CP Series controllers are typically programmed using proprietary control design software, such as an older version of PRM or the current CP-Programmer, which supports ladder logic (LD) and other IEC 61131-3 standard languages.
Q: Can I connect analog devices directly to this module?
A: The base CP401-11 module primarily provides digital I/O. To interface with analog signals (e.g., 4-20mA, 0-10V), you will need to add appropriate analog input and output expansion modules to the system.
Q: How do I communicate with this PLC over Ethernet?
A: Direct Ethernet communication typically requires an optional Ethernet communication module that attaches to the main processor unit. The serial port on the base unit can be used for other protocol communications or programming.
