Description
Product Overview

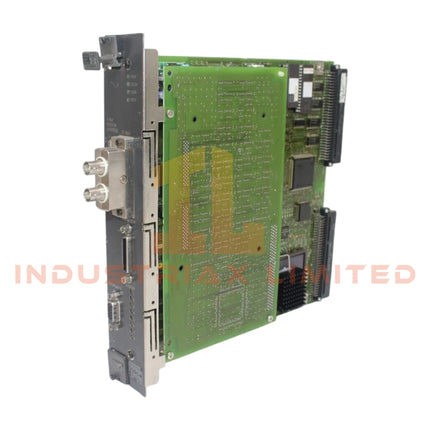

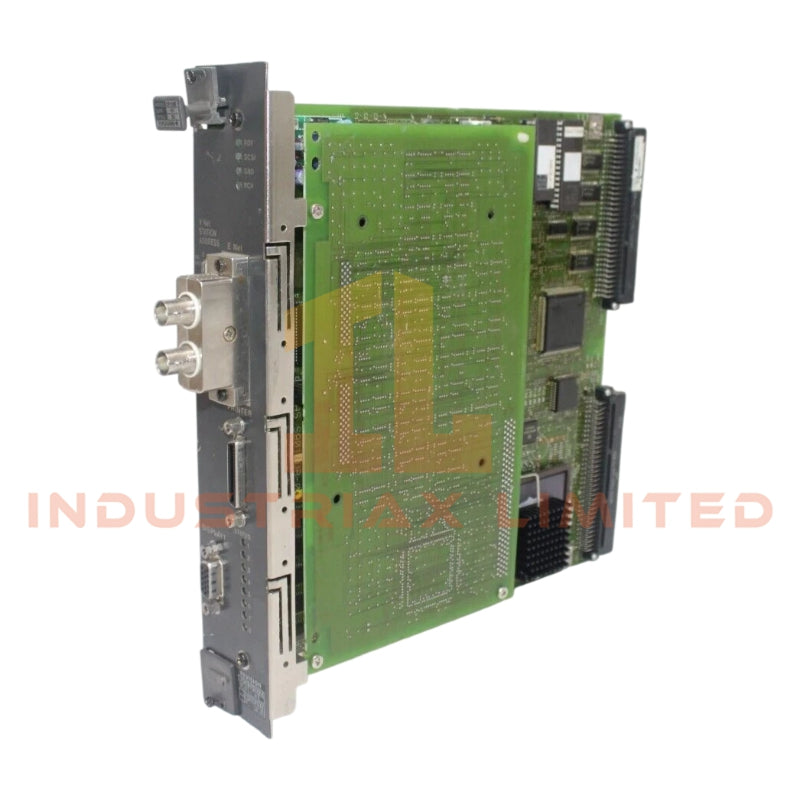

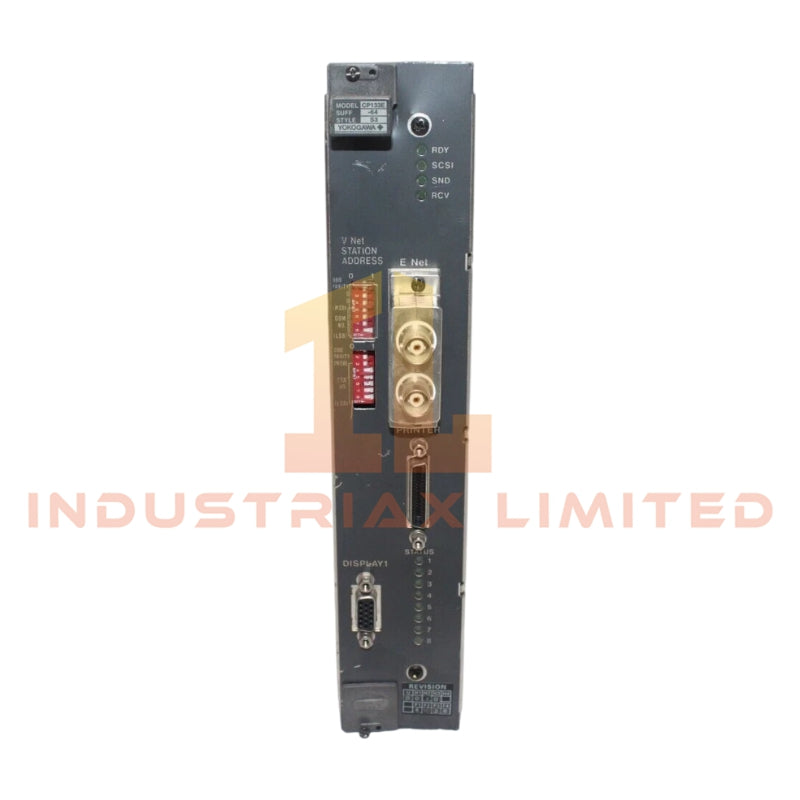

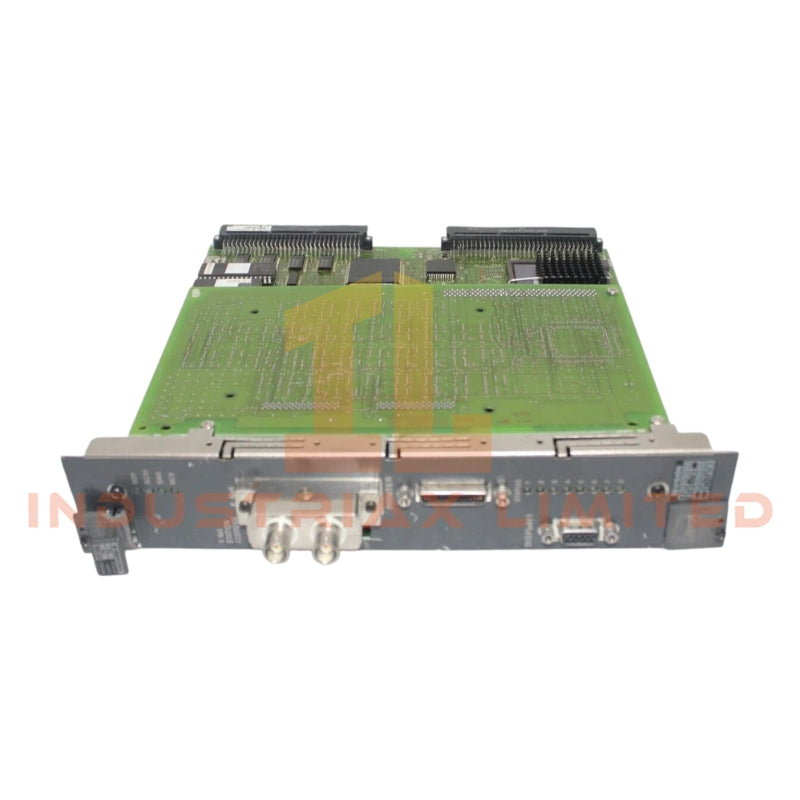

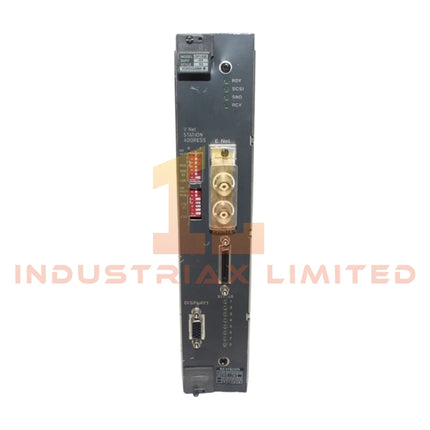

The CP133E-64S3 serves as the primary computational engine for Yokogawa CENTUM VP integrated control systems. This field control station (FCS) module is engineered to execute sophisticated control logic, manage extensive real-time databases, and facilitate high-speed data exchange across the Vnet/IP network. By leveraging a dual-core architecture, it provides the deterministic processing required for large-scale industrial automation tasks.
Technical Core Specifications
-
Model Number: CP133E-64S3
-
System Compatibility: CENTUM VP, CENTUM CS 3000
-
Processor Architecture: Dual-core Intel Xeon Processor
-
Volatile Memory: 4GB DDR3 SDRAM
-
Error Correction: ECC (Error Correction Code) supported
-
Network Interface: Dual-redundant 1Gbps Vnet/IP Ethernet ports
-
Power Configuration: Supports redundant power supply modules
-
Module Dimensions: 51mm x 229mm x 51mm
-
Physical Weight: Approximately 1.11 kg (2.45 lbs)
-
Country of Origin: Japan
-
Mounting Type: Rack-mounted within FCS enclosure
Operational Capabilities and Reliability
The CP133E-64S3 is specifically hardened for continuous operation in environments where system downtime is not an option. Unlike standard computing hardware, this module utilizes a real-time operating system (RTOS) to ensure that control cycles are executed with millisecond precision. The integration of the Intel Xeon chipset allows for advanced diagnostics and higher calculation density compared to previous generation RISC-based modules.
FAQ
Does the CP133E-64S3 support online maintenance?
Yes, when configured in a redundant pair, this module allows for hot-swapping and firmware updates without interrupting the controlled process.
What is the primary difference between the CP133E and earlier CP133 models?
The CP133E-64S3 features optimized memory management and enhanced heat dissipation capabilities, making it more suitable for high-density I/O configurations in CENTUM VP R6 and above.
