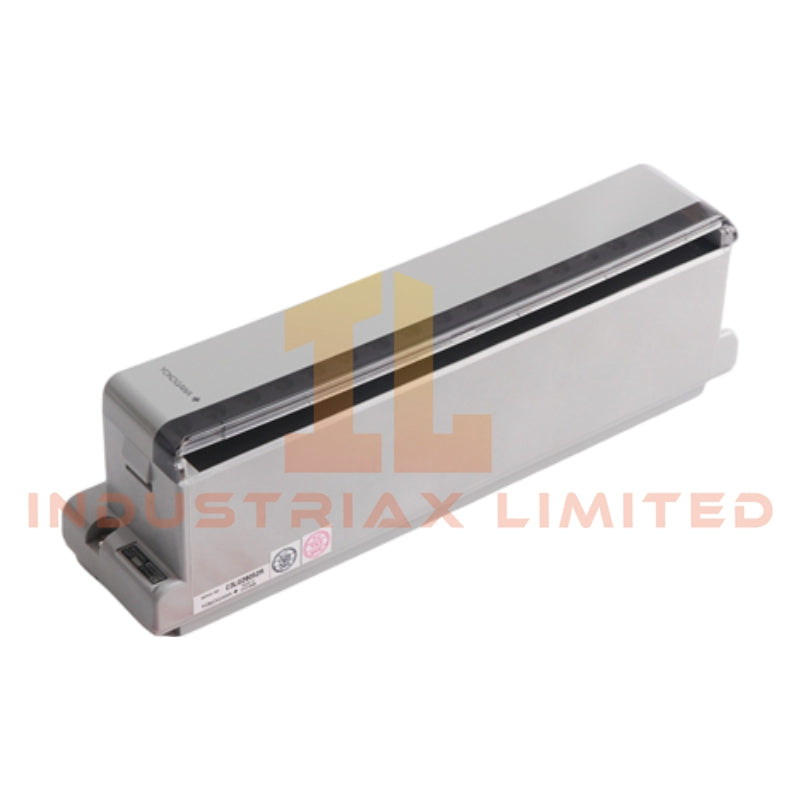

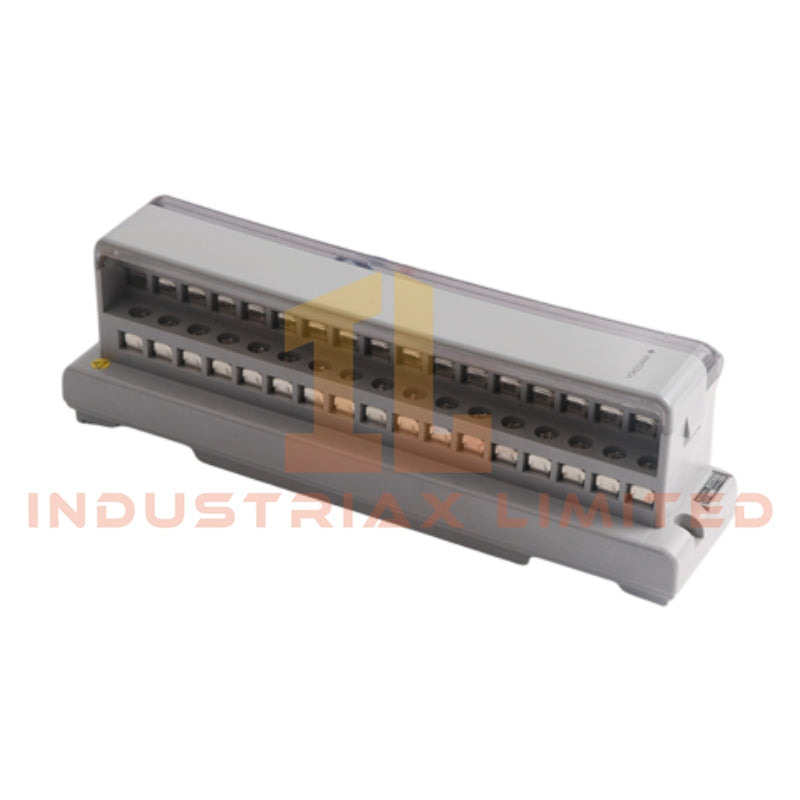

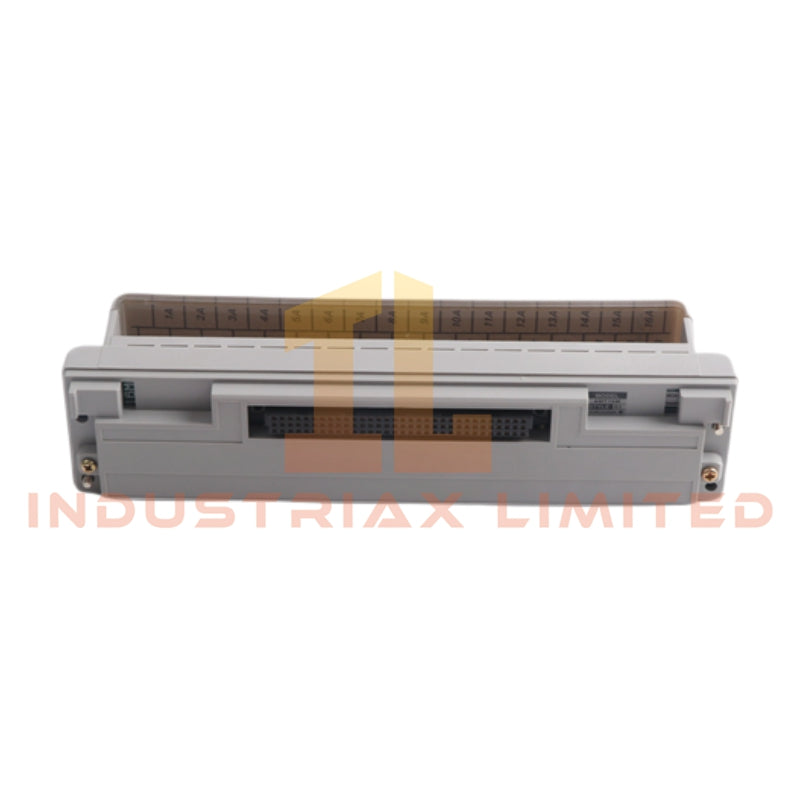

Yokogawa AMN12T Interface Module

Configured for deterministic communication interface bridging in Yokogawa V net control network within CENTUM DCS, the Yokogawa AMN12T (AMN12T Interface Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

No formal suffix segmentation or functional sub-variant decoding is defined for AMN12T in the provided specification set. The module designation is treated as a single fixed hardware identifier.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AMN12T
Origin	Japan
OperatingTemp	0 to 50 degC
PowerConsumption	Low power, supplied via system backplane (exact value not specified)
Communication Protocol	V net token-passing network
Network Topology	Dual redundant ring support
Isolation	Galvanic isolation between network and internal circuitry
Installation Slot	Yokogawa FCS / control station baseplate compatible
Diagnostic Interface	Onboard LED status indicators

V net Communication and Channel Isolation Characteristics

The AMN12T implements deterministic token-passing communication within the V net architecture used in Yokogawa distributed control systems. Frame arbitration is managed via sequential token circulation, preventing bus contention under multi-node loading conditions. Channel-to-channel separation is maintained through internal galvanic isolation barriers, reducing noise coupling between communication lanes and control backplane logic domains.

Redundant network operation is supported through dual-port physical connectivity, allowing continuous data propagation in the event of a single media path interruption. Module-level diagnostics are exposed through status LEDs and system-level engineering tools within CENTUM configuration environments.

Frequently Asked Questions

Q: Can the AMN12T be hot-swapped during runtime operation?
A: Hot-swap capability depends on the host FCS architecture. In supported baseplate configurations, replacement is permitted under controlled maintenance mode with network redundancy active.

Q: What is the effect of removing one network channel in redundant mode?
A: The module continues communication via the remaining channel without protocol interruption, provided redundancy configuration is enabled at system level.

Q: Does the module require external termination for V net wiring?
A: Termination requirements are defined by the overall V net segment topology rather than the module itself and must follow Yokogawa network installation rules.

Field Installation Guidelines

Ensure installation is performed with system power isolated unless the baseplate supports live insertion. Insert the AMN12T module fully into the designated communication slot until mechanical latch engagement is confirmed.

Maintain separation between V net communication cabling and high-voltage or high-noise power conductors. Shielding continuity must be preserved and grounded at a single reference point per network segment to avoid ground loop formation.

Verify redundant network cabling polarity and continuity prior to commissioning. Use only approved Yokogawa baseplate connectors to ensure backplane alignment integrity.
