Product Description
Overview

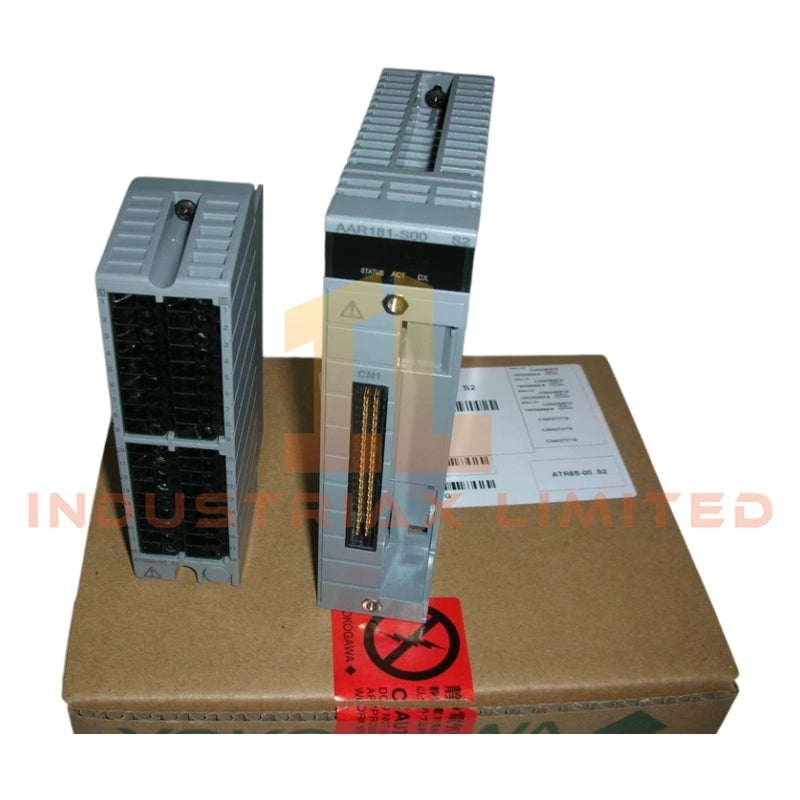

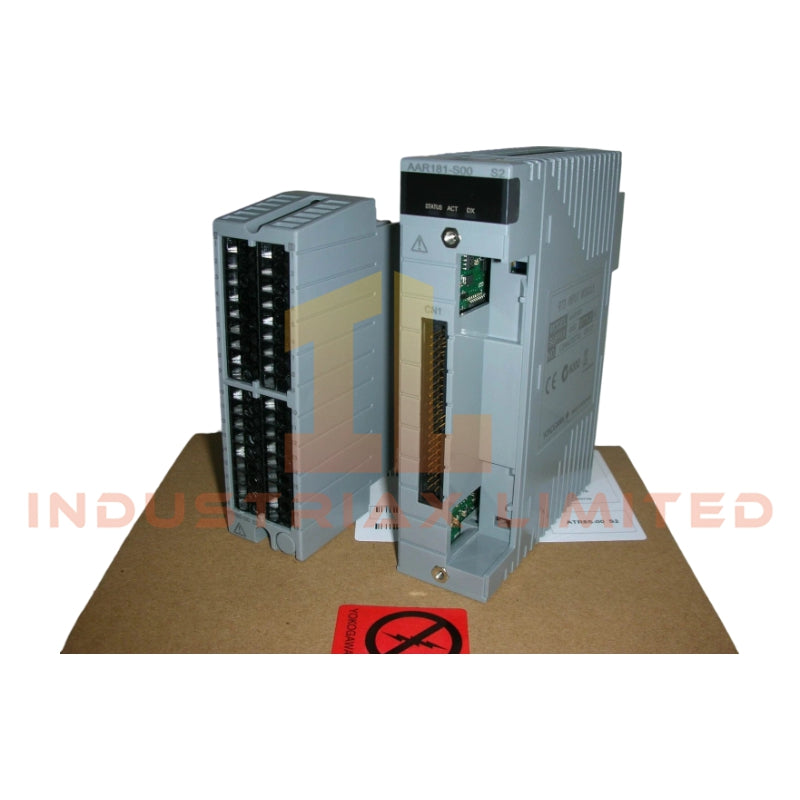

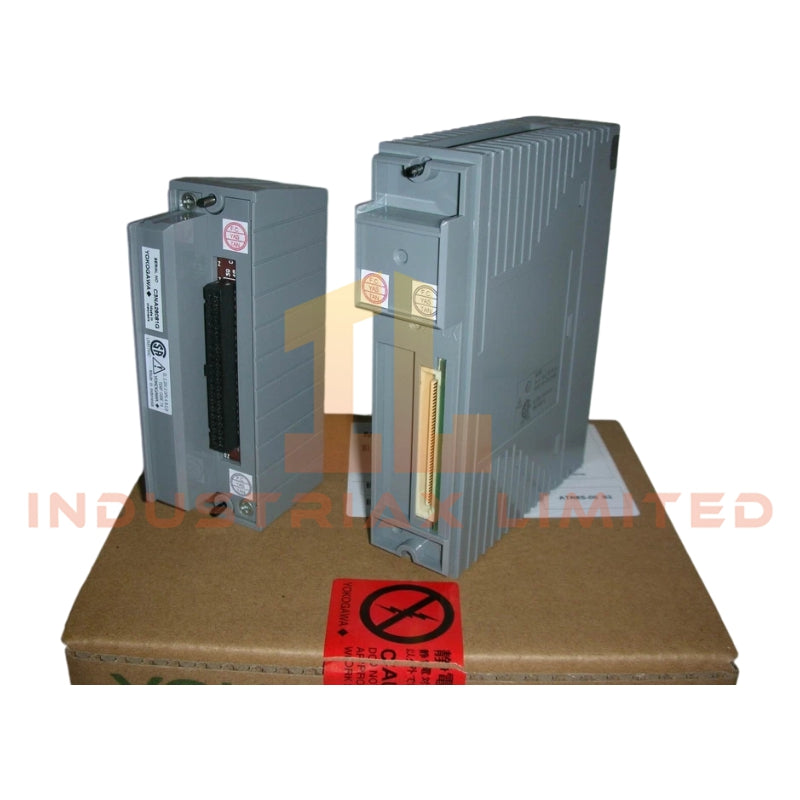

The ATR8S-00 S2 from Yokogawa is a precision-engineered pressure clamp terminal block designed for industrial automation systems. It ensures secure and reliable connections for pressure sensors and transmitters, delivering stable and accurate pressure measurement data. The device is built to integrate seamlessly with systems utilizing HART communication protocol, providing robust performance even in challenging industrial environments.
Technical Specifications
-
Model Number: ATR8S-00 S2
-
Manufacturer: Yokogawa
-
Type: Pressure Clamp Terminal Block
-
Dimensions: 5 cm x 13 cm x 15 cm
-
Weight: 0.6 kg
-
Communication Mode: Serial half-duplex, start-stop synchronization, 8-bit data, odd parity, standard termination protocol
-
Supported Protocol: HART Protocol Revision 5.7
-
Operating Temperature Range: -20 to 70 degrees Celsius
-
Storage Temperature Range: -25 to 85 degrees Celsius
-
Mounting: DIN rail compatible
-
Material: High-strength insulating polymer with corrosion-resistant terminals
-
Application: Suitable for integration with industrial process control systems requiring high-reliability pressure measurements
Applications
Ideal for process monitoring in chemical plants, water treatment facilities, and manufacturing systems requiring precision pressure control. Designed to maintain accurate readings in redundant sensor setups.
FAQ
Q: Can this terminal block work with non-Yokogawa pressure transmitters?
A: Yes, as long as the transmitters comply with HART Protocol Revision 5.7 and meet voltage and signal specifications.
Q: What kind of communication interface does ATR8S-00 S2 support?
A: It supports serial half-duplex communication with start-stop synchronization, 8-bit data length, and odd parity.
Q: Is it suitable for harsh environmental conditions?
A: Yes, the device operates reliably between -20 and 70 degrees Celsius and can be stored safely between -25 and 85 degrees Celsius.
