Product Description
Overview

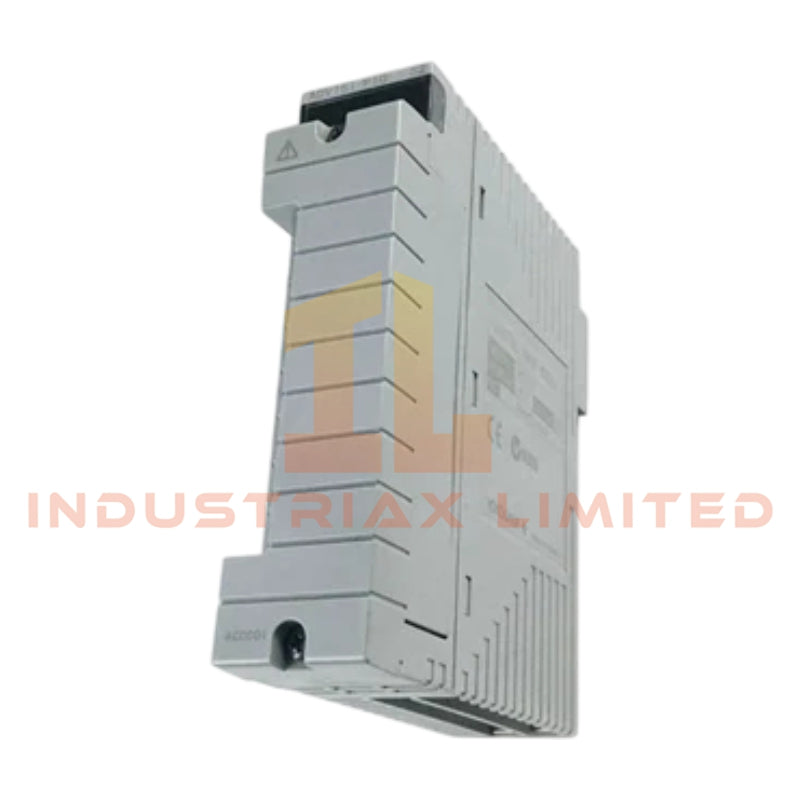

The ATR8D-00 by Yokogawa is a precision-engineered pressure clamp terminal block designed for dependable signal transmission. It is optimized for integration with Yokogawa Field Input/Output (FIO) modules and supports pressure sensors and RTD inputs within CENTUM VP systems. Its compact design and versatile connection options make it ideal for industrial automation and process control applications.
Technical Specifications
| Specification |
Details |
| Model Number |
ATR8D-00 |
| Manufacturer |
Yokogawa |
| Product Type |
Pressure Clamp Terminal Block |
| Connection Points |
12 Isolated Channels |
| Channels |
2 |
| Cable Interface |
KS Cable Interface |
| Connection Type |
Pressure Clamp for Easy Wiring |
| Dimensions |
144 mm x 144 mm x 185 mm |
| Weight |
0.3 kg |
| Mounting |
DIN Rail or Suitable Flat Surfaces |
| Operating Temperature Range |
-20 C to +70 C |
| Humidity |
5 to 95 Percent RH Non-Condensing |
| Material (Housing) |
High-Grade Insulating Polymer |
| Compatible Systems |
CENTUM VP FIO Modules |
Applications
The ATR8D-00 is suitable for installation in process control panels, distributed control systems, and sensor integration setups. It ensures reliable signal acquisition from pressure transducers and RTD devices and can be applied in both new system builds and retrofits.
FAQ
Q: How many sensors can be connected simultaneously?
A: The terminal block provides 12 isolated channels and supports 2 primary input channels.
Q: Is it compatible with other Yokogawa FIO modules?
A: Yes, it is fully compatible with CENTUM VP FIO modules and supports pressure sensor and RTD signal types.
