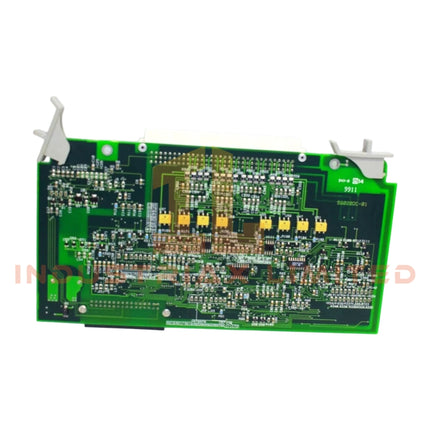

Yokogawa AMM32 Analog Input Module
Configured for converting analog sensor signals to digital data acquisition in DCS input channels, the Yokogawa AMM32 (AMM32 Analog Input Module) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
No explicit suffix segmentation data is defined for AMM32 in the provided material. Model interpretation is limited to base module designation only.
Hardware Specifications
Parameter
Specification
ModelBrand
Yokogawa AMM32
Origin
Japan
Weight
0.2 kg (6.1 oz)
Dimensions
5.0 x 1.0 x 8.0 in (12.7 x 2.5 x 20.3 cm)
Input Types
Thermocouple, RTD, voltage, current sensors
Conversion
Analog-to-digital conversion for PLC/DCS acquisition
Signal Conditioning
Amplification, filtering, linearization
Cold Junction Compensation and Channel Isolation Architecture
The AMM32 input architecture supports cold junction compensation (CJC) for thermocouple measurement stabilization at terminal reference points. Channel-to-channel isolation is typically implemented at the module level to reduce interference between adjacent analog input channels. Signal conditioning stages include filtering and linearization prior to digitization. Integration is aligned with Yokogawa DCS input scanning cycles and process data acquisition structures, including support for standardized industrial loop interfaces such as 4-20 mA and system-level fieldbus coupling depending on backplane configuration.
Frequently Asked Questions
Q: Does the AMM32 support hot-swap insertion on live backplane systems? A: Hot-swap capability is dependent on the host DCS rack design; AMM32 itself does not define switching control logic.
Q: Is channel-to-channel isolation physically implemented or software-based? A: Isolation is implemented at hardware level within the input circuitry, not through software configuration.
Q: Can thermocouple inputs operate without cold junction compensation? A: Thermocouple measurement requires CJC for accurate temperature reference compensation; disabling CJC affects measurement accuracy.
Field Installation Guidelines
Ensure module is fully seated into compatible Yokogawa backplane slot before applying system power.
Maintain proper shielding termination at both signal source and cabinet grounding point to reduce EMI coupling.
Route thermocouple and low-level analog wiring separately from high-voltage and switching conductors.
Verify correct sensor type configuration prior to commissioning (RTD, thermocouple, voltage, current loop).
Observe torque and connector seating standards specified for terminal block assemblies.
