Description

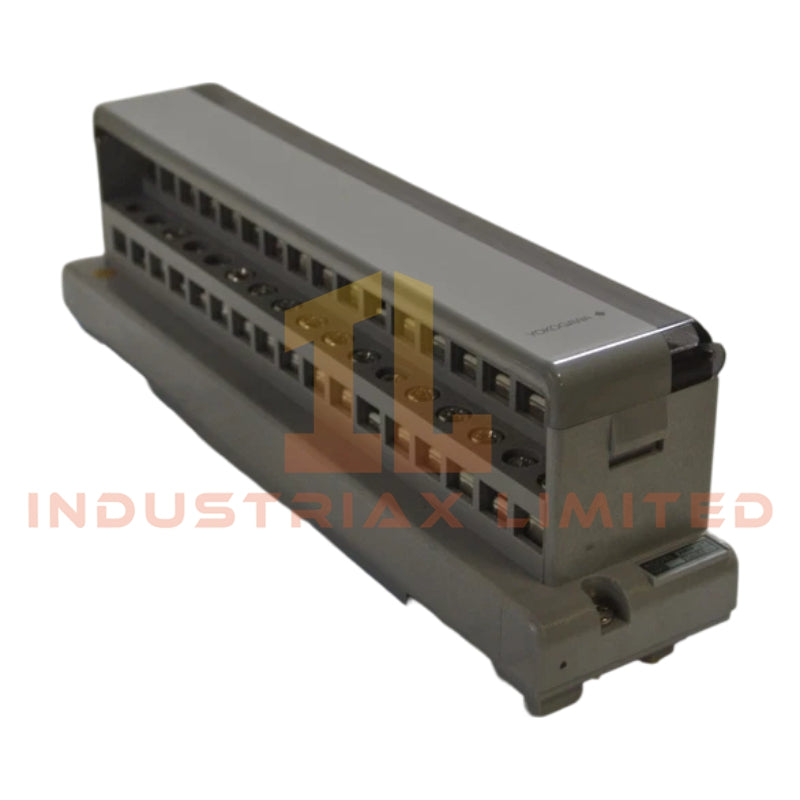

Yokogawa AMM12T Voltage Input Multiplexer Module

Configured for voltage signal acquisition and channel scanning in CENTUM CS and CENTUM VP control systems, the Yokogawa AMM12T (AMM12T Voltage Input Multiplexer Module) provides direct physical/electrical execution of 16-channel analog voltage multiplexing with backplane-controlled switching and -10 VDC to +10 VDC signal routing.

Suffix Breakdown & Model Matrix

No formal suffix segmentation or option code structure is defined for the AMM12T base model in the provided technical dataset. Configuration is fixed at module level without documented variant suffix expansion.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AMM12T
Origin	Japan
InputChannels	16 channels
InputSignalType	Voltage input multiplexing
InputCurrent	20 mA max
OutputVoltageRange	-10 VDC to +10 VDC
OutputCurrent	20 mA max
SwitchingTime	10 ms max
SystemCompatibility	CENTUM CS / CENTUM VP

Channel-to-Channel Multiplexing Architecture (DCS Signal Handling)

The module operates within Yokogawa DCS environments using sequential channel switching logic controlled via system backplane timing. In typical CENTUM architectures, voltage input channels are scanned through time-sliced multiplexing, ensuring deterministic acquisition intervals with switching latency bounded by 10 ms maximum.

Channel separation is implemented at the switching matrix level, reducing inter-channel electrical interaction during sampling windows. The input stage supports direct voltage acquisition with constrained current loading up to 20 mA, enabling interface with standard industrial analog signal sources.

Integration within CENTUM CS/VP systems aligns the module with backplane communication cycles, where scan sequencing is synchronized to controller task execution intervals rather than asynchronous polling.

Frequently Asked Questions

Q: Can the AMM12T be hot-swapped during system operation?
A: Hot-swap capability depends on the system rack architecture. Electrical isolation is handled at backplane level; removal during active scan cycles may interrupt channel sampling.

Q: What is the effective channel scan delay across all 16 inputs?
A: The switching time is specified up to 10 ms per channel. Total scan cycle time scales with system configuration and controller scan scheduling.

Q: Does the module support electrical isolation between channels?
A: Channel separation is implemented through internal multiplex switching; isolation characteristics are defined at system rack design level rather than per input channel.

Field Installation Guidelines

• Install module into compatible Yokogawa CENTUM CS/VP I/O rack slot with secure backplane engagement.
• Ensure all analog voltage inputs remain within -10 VDC to +10 VDC range prior to termination.
• Use shielded twisted pair wiring for analog signal lines and terminate shields at designated system ground point.
• Maintain separation between high-noise power conductors and low-level analog input wiring.
• Verify backplane connector seating integrity to ensure stable multiplex timing and scan synchronization.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
