Description
Overview

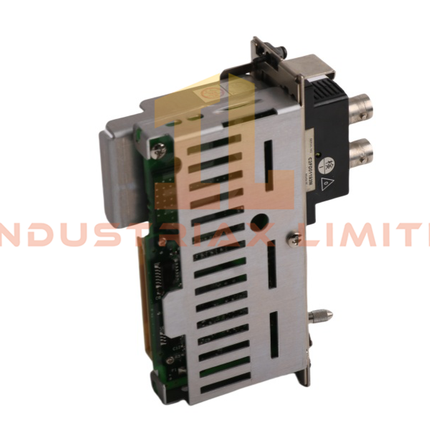

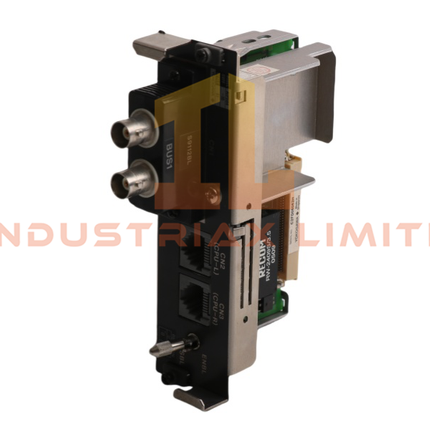

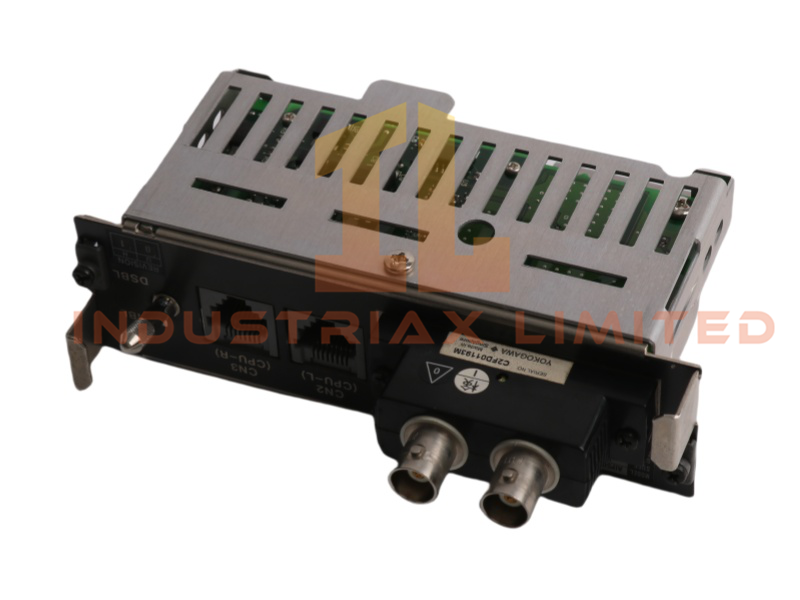

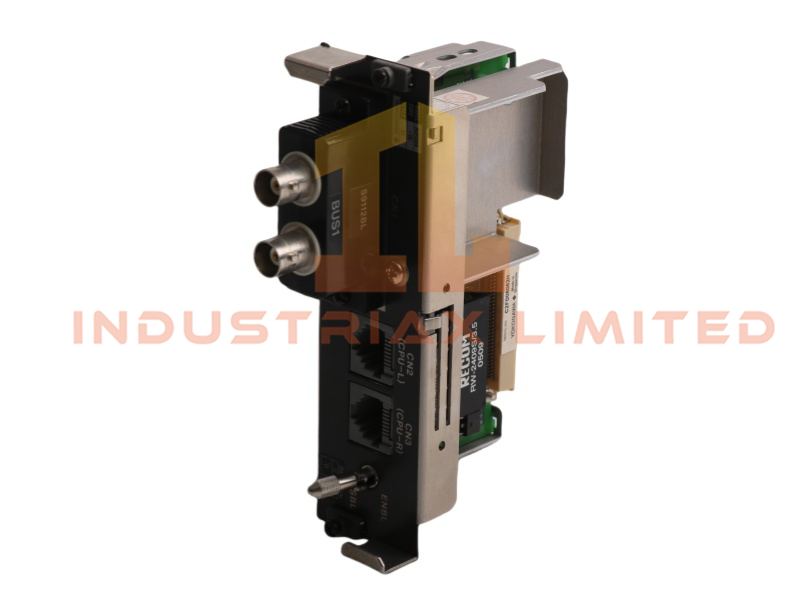

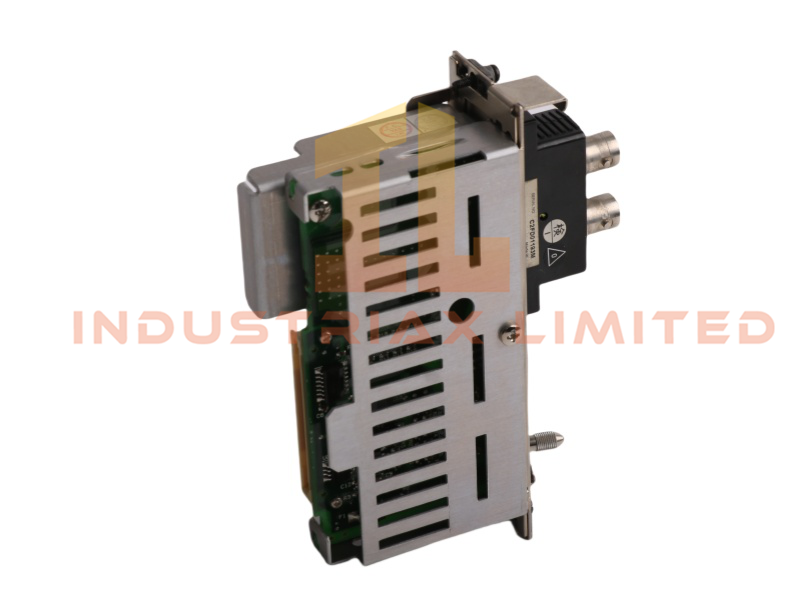

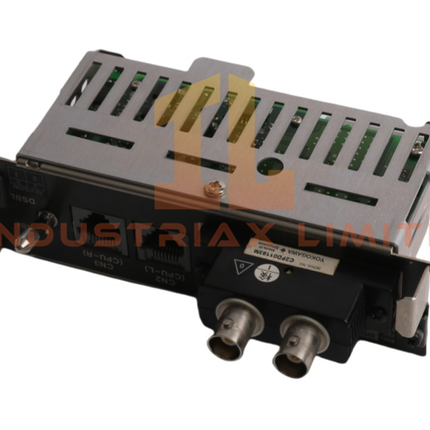

The AIP504-10 V-NET Coupler Module from Yokogawa ensures high-accuracy analog signal processing in distributed control systems. Its compact 2.1×10.2×15.2cm design and 0.3kg weight support efficient installation in industrial control cabinets.
Yokogawa engineered the AIP504-10 with 16 isolated input channels and 16-bit precision, making it ideal for critical process monitoring. Clean power infrastructure is essential to maintain its performance, especially in environments with harmonic distortion risks.
Technical Specifications
| Specification |
Details |
| Model Number |
AIP504-10 |
| Manufacturer |
Yokogawa |
| Module Type |
V-NET Coupler Module |
| Product Range |
Yokogawa |
| Dimensions |
2.1 × 10.2 × 15.2 cm |
| Weight |
0.3 kg |
| Input Channels |
16 isolated |
| Measurement Precision |
16-bit |
| Power Quality Requirement |
Harmonic suppression recommended |
| Communication Interface |
Ethernet router |
| System Compatibility |
DCS |
| HS Code |
8537101190 |
| Product Origin |
Japan |
| Condition |
Brand New |
| Minimum Order Quantity |
1 |
| Lead Time |
In Stock |
| Discontinued Status |
Active |
Features & Performance
The AIP504-10 supports stable analog input processing when paired with harmonic filters or high power factor UPS units. Its signal conditioning circuitry ensures accurate data acquisition across diverse industrial applications.
Yokogawa included channel-to-channel isolation to prevent interference and maintain measurement integrity. The module complies with EMC Directive standards for European installations.
