Description
Product Description:

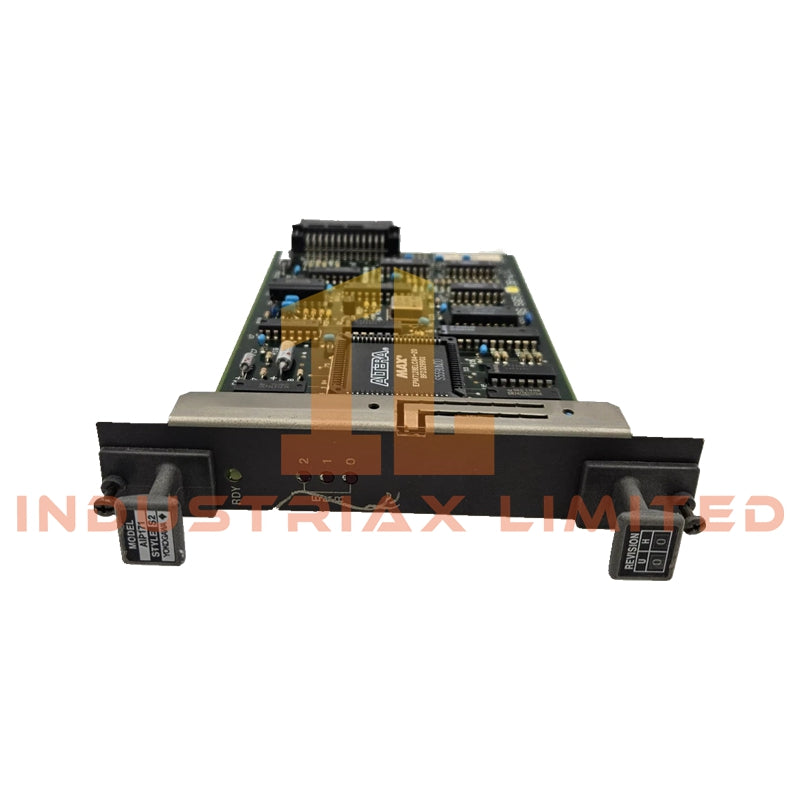

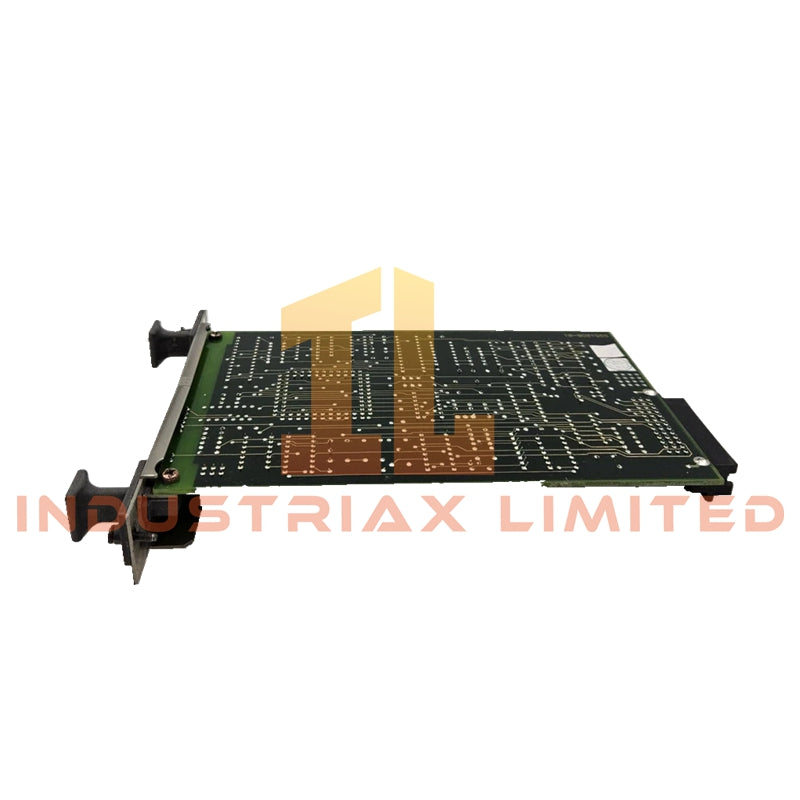

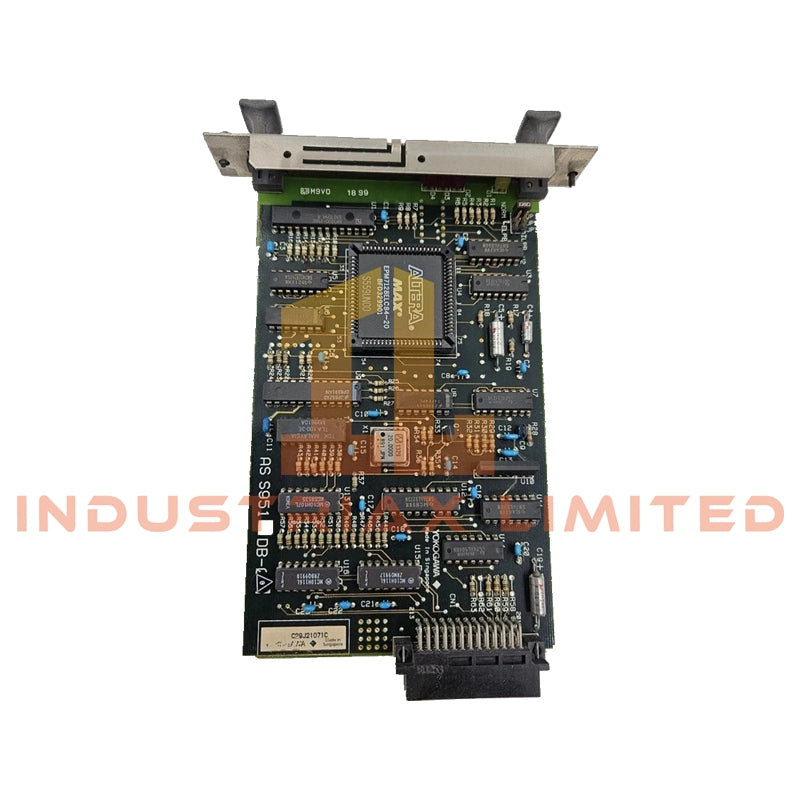

The Yokogawa AIP171 is an advanced analog input module designed to seamlessly integrate with the Yokogawa CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). This high-density module is engineered to handle current input signals, typically from 2-wire or 4-wire transmitters, ensuring precise data conversion for use in demanding industrial applications. As a part of the Field Input/Output (FIO) system, it transforms 4 to 20 mA field signals into reliable digital data for process control, offering high accuracy and system reliability.
This module supports up to 16 input channels, each non-isolated from the others, and provides a 250 Ω internal shunt resistor to accurately measure current. With system isolation of 1500 V AC, it protects the system from electrical interference, ensuring stable operation in complex control environments.
The AIP171 module operates with a data refresh cycle of just 10 ms per channel and has a max current consumption of 450 mA (at 5V DC from the backplane), making it a suitable solution for high-speed, high-reliability requirements.
Key Features:
-
Model Number: AIP171
-
Module Type: Analog Input Module (Current Input)
-
Number of Channels: 16 Channels (Non-isolated between channels)
-
Input Signal Range: 4 to 20 mA DC
-
Input Impedance: 250 Ω (Internal shunt resistor)
-
Accuracy: ±0.1% of full span
-
System Isolation: 1500 V AC (Between field and system bus)
-
Data Refresh Cycle: 10 ms
-
Current Consumption: Max. 450 mA (5 V DC from backplane)
-
Mounting: Compatible with ANB10, ANB11, or ANT10 FIO units
