Description

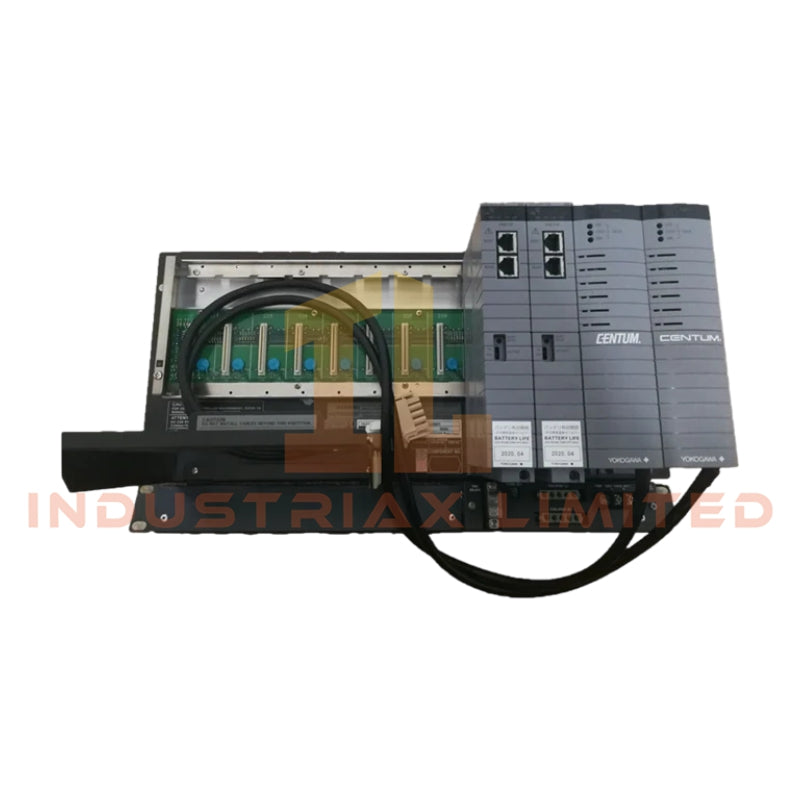

Yokogawa AFV30S-S41151 Field Control Unit

Configured for deterministic control execution in CENTUM VP Vnet/IP architecture, the Yokogawa AFV30S-S41151 (AFV30S-S41151 Field Control Unit) provides direct physical/electrical execution of control logic, sequence processing, and I/O coordination within a Field Control Station environment.

Suffix Breakdown & Model Matrix

No formally disclosed internal suffix decoding matrix is provided in the supplied documentation for AFV30S-S41151. The unit is identified as a single-type Field Control Unit within the AFV30S platform family for CENTUM VP systems.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AFV30S-S41151
Origin	Not specified
Weight	7 kg
Dimensions	482 mm x 210 mm x 220 mm
OperatingTemp	0 degC to 55 degC
PowerConsumption	200-300 VA (AC), 9 A (DC)
Control System	CENTUM VP
Network Interface	Vnet/IP real-time control
Mounting	19-inch rack mount
Memory Backup	Battery backup up to 72 hours

Vnet/IP Process Control & Field Interface Execution Layer

The AFV30S-S41151 FCU operates as a Vnet/IP node executing cyclic control tasks with deterministic scheduling across CENTUM VP field control stations. Signal acquisition and output processing are handled through distributed I/O coupling via ESB backplane architecture.

The control layer supports 4-20 mA HART field device integration through associated I/O modules, enabling analog loop supervision and digital overlay communication on standard instrumentation channels. Channel-to-channel isolation is implemented at I/O subsystem level to minimize cross-loop interference in high-density control racks.

FOUNDATION Fieldbus and Profibus PA gateway integration is supported via external interface modules, allowing hybrid analog-digital process topology within the same control network segment.

Frequently Asked Questions

Q: Does the AFV30S-S41151 support hot-swap of CPU or control modules?
A: The FCU architecture is single CPU without duplexing. Module replacement requires controlled shutdown; hot-swap capability is dependent on external I/O node configuration rather than the FCU core.

Q: What is the Vnet/IP role in scan cycle execution?
A: Vnet/IP provides deterministic Ethernet-based synchronization for control task distribution and inter-node communication, ensuring aligned scan execution across Field Control Stations.

Q: Can firmware updates be applied without affecting I/O loops?
A: Firmware updates typically require controlled maintenance windows. I/O loop continuity depends on system redundancy at the FCS and field device level rather than FCU isolation alone.

Field Installation Guidelines

Install the FCU in a standard 19-inch industrial rack with verified grounding to the system protective earth busbar. Maintain separation between control network cabling and power lines to reduce electromagnetic coupling on Vnet/IP communication pairs.

Ensure airflow clearance for natural convection cooling; do not obstruct top and bottom ventilation paths. Battery backup systems should be fully charged for a minimum of 48 hours before commissioning to guarantee memory retention capability during initial power loss conditions.

Shielded Ethernet cabling for Vnet/IP must be terminated according to industrial EMC grounding practice, with single-point shield grounding at cabinet entry only.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
