Description

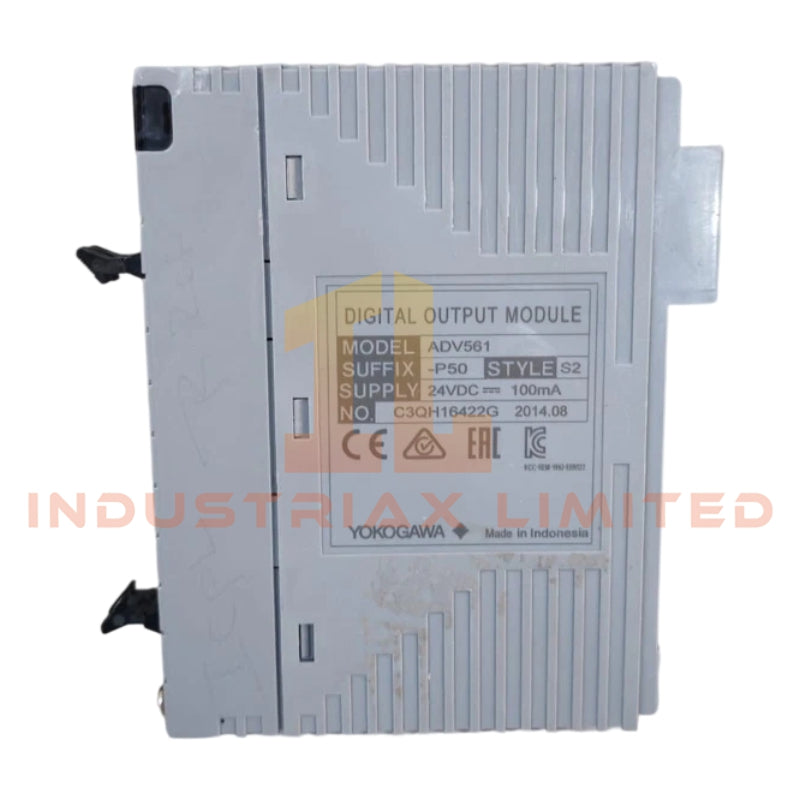

Yokogawa ADV561-P50 Digital Output Module

Configured for isolated 24 VDC discrete signal execution in CENTUM and related Yokogawa control architectures, the Yokogawa ADV561-P50 (ADV561 Digital Output Module) provides direct physical/electrical execution. The module supports 64-channel digital output handling with pulse width output and time-proportional output functionality integrated into the output control structure.

Suffix Breakdown & Model Matrix

Suffix Code	Specification
-P	With pulse width output function and time-proportional output function
5	Without status display; no explosion protection
0	Basic type

Hardware Specifications

Parameter	Specification
Model	ADV561-P50
Brand	Yokogawa
Product Type	Digital Output Module
Base Model	ADV561
Output Channels	64-channel
Output Signal Type	Digital output
Rated Output Voltage	24 VDC
Isolation	Isolated channels
Pulse Width Output	Supported
Time-Proportional Output	Supported
Status Display	Not included
Explosion Protection	Not included
Mounting Type	System rack/backplane installation
Origin	Japan

Channel-to-Channel Isolation Characteristics

The ADV561-P50 implements isolated digital output channel architecture for separation of field-side switching circuits from the control backplane interface. Isolation design reduces transient propagation between adjacent output circuits during inductive load switching and minimizes common return interference within multi-channel discrete output assemblies.

The integrated pulse width output function supports duty-cycle based discrete actuation, while the time-proportional output mode permits direct modulation of externally connected solenoids, relays, and proportional control elements operating on 24 VDC field power distribution networks.

Output routing is handled through Yokogawa DCS I/O carrier structures with controlled backplane communication timing between processor and field output stages.

Frequently Asked Questions

Q: Does the ADV561-P50 support hot swapping during operation?
A: Module replacement capability depends on the installed Yokogawa control station architecture and active controller redundancy configuration. Field output state behavior during insertion/removal must be validated against the applicable system manual before live replacement.

Q: What type of field loads can be connected to the digital outputs?
A: The module is intended for 24 VDC discrete field devices such as interposing relays, solenoid valves, annunciators, and discrete actuator interfaces compatible with the module output rating.

Q: Are output channels electrically isolated from each other?
A: The module is specified as an isolated digital output module. Isolation is implemented to reduce electrical interference transfer between field-side output circuits and internal system electronics.

Field Installation Guidelines

• Verify external field voltage polarity before energizing output terminals.
• Separate digital output wiring from analog signal cabling to reduce switching noise coupling.
• Use shield grounding at a single designated grounding point within the control cabinet.
• Confirm inductive suppression devices are installed across relay coils and solenoid loads where applicable.
• Maintain terminal tightening torque according to Yokogawa cabinet installation procedures.
• Confirm backplane connector alignment before module insertion into the I/O rack assembly.
• Perform loop verification of all output channels after commissioning or module replacement.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
