Description

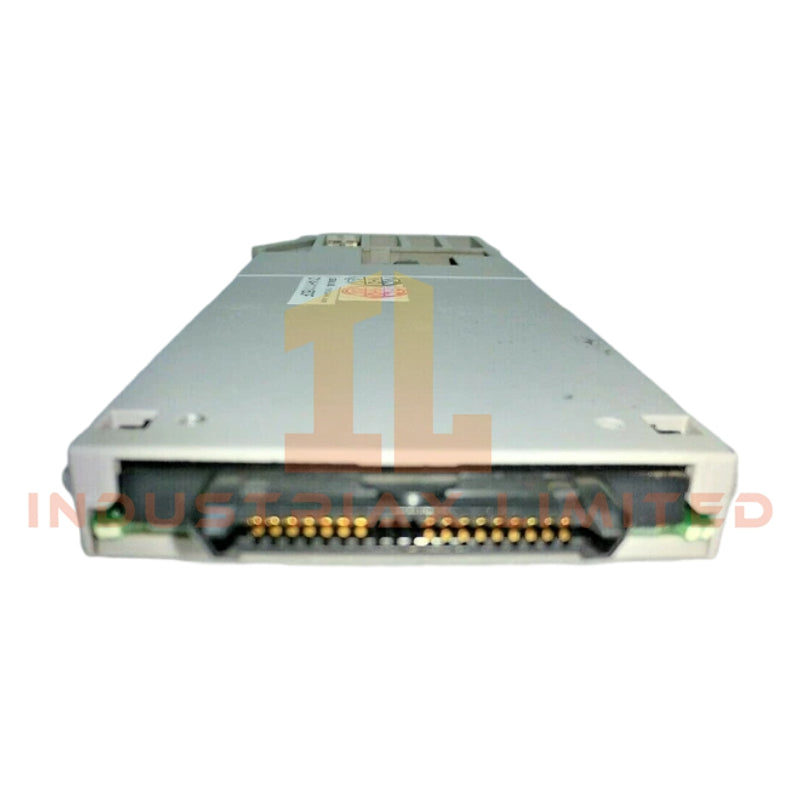

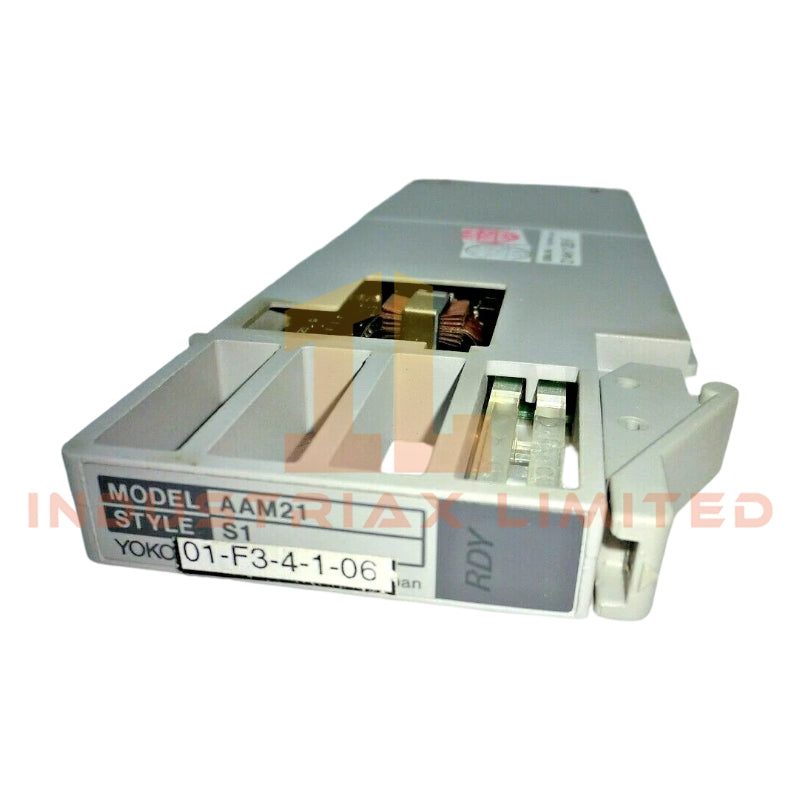

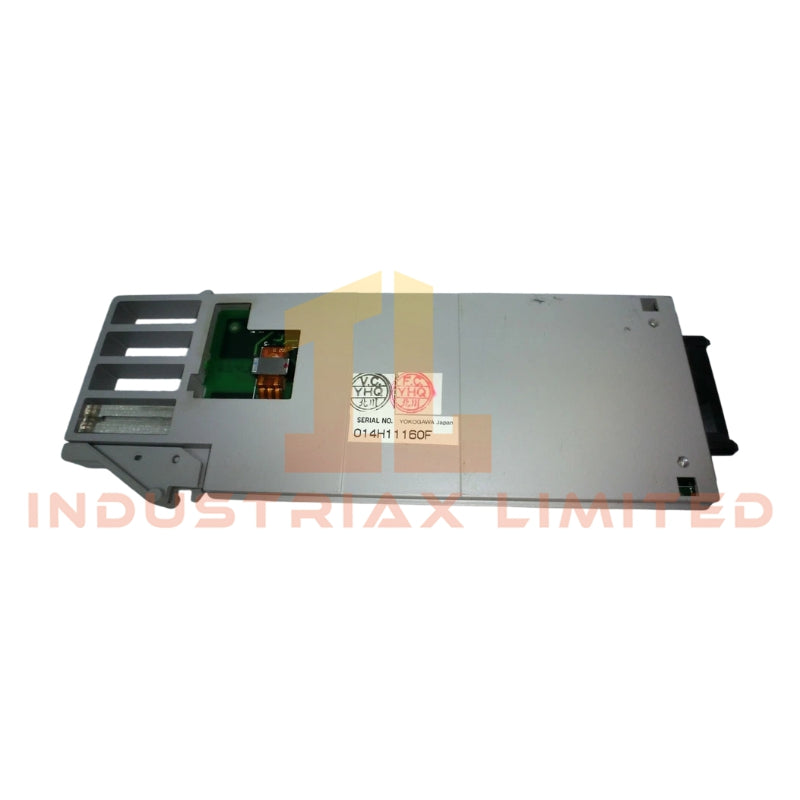

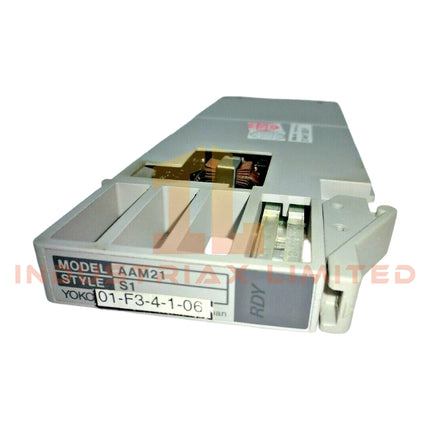

Yokogawa AAM21 Analog Input Module

Configured for analog signal acquisition in CENTUM VP and ProSafe-RS systems, the Yokogawa AAM21 (AAM21 Analog Input Module) provides direct physical/electrical execution of 4-20 mA and voltage-based process signal conversion across CENTUM VP and ProSafe-RS platforms.

Suffix Breakdown & Model Matrix

No suffix or variant segmentation is specified in the provided source data for AAM21. The module is treated as a single hardware configuration entity without documented ordering-code subdivisions.

Hardware Specifications

Parameter	Specification
ModelBrand	Yokogawa AAM21
Origin	Japan
Weight	1.5 kg
Dimensions	144 mm x 144 mm x 150 mm
OperatingTemp	0 degC to 50 degC
PowerConsumption	24 VDC
Input Channels	8 channels
Input Types	0-20 mA, 4-20 mA, 0-5 V, 1-5 V
Isolation	Channel-to-channel isolation

Channel-to-channel isolation and 4-20 mA loop integrity

The AAM21 architecture implements galvanic separation between input channels to reduce inter-channel coupling under mixed-signal loading conditions. In 4-20 mA loop operation, the module maintains stable loop impedance behavior to avoid transmitter current distortion during multiplexed sampling. This isolation structure is aligned with DCS input conditioning requirements for CENTUM VP and ProSafe-RS analog acquisition nodes, where multi-channel density can introduce cross-channel electrical interaction if not segmented at the hardware level. The analog front-end conditioning ensures consistent signal translation into the system backplane without shared reference contamination between channels.

Frequently Asked Questions

Q: Does the AAM21 support hot-swap operation in CENTUM VP nodes?
A: Hot-swap capability is system-dependent. In supported I/O nests, removal and insertion are managed at the node level with backplane isolation to prevent signal corruption.

Q: What happens if an input loop becomes open-circuit on a 4-20 mA channel?
A: The channel detects abnormal current discontinuity and reports diagnostic status to the system processor for alarm or fallback logic execution.

Q: Is channel-to-channel isolation maintained under full channel loading?
A: Yes. Isolation barriers are implemented per channel to prevent cross-coupling under simultaneous multi-channel excitation.

Field Installation Guidelines

Ensure 24 VDC supply integrity is verified before module insertion into the I/O node. Shielded signal cables should be grounded at a single-point earth reference to minimize ground loop formation across 4-20 mA loops. Maintain separation between analog input wiring and high-voltage switching conductors to reduce induced noise. Module seating must be fully engaged into the backplane connector to guarantee stable communication with the CENTUM VP or ProSafe-RS I/O subsystem.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
