Product Description

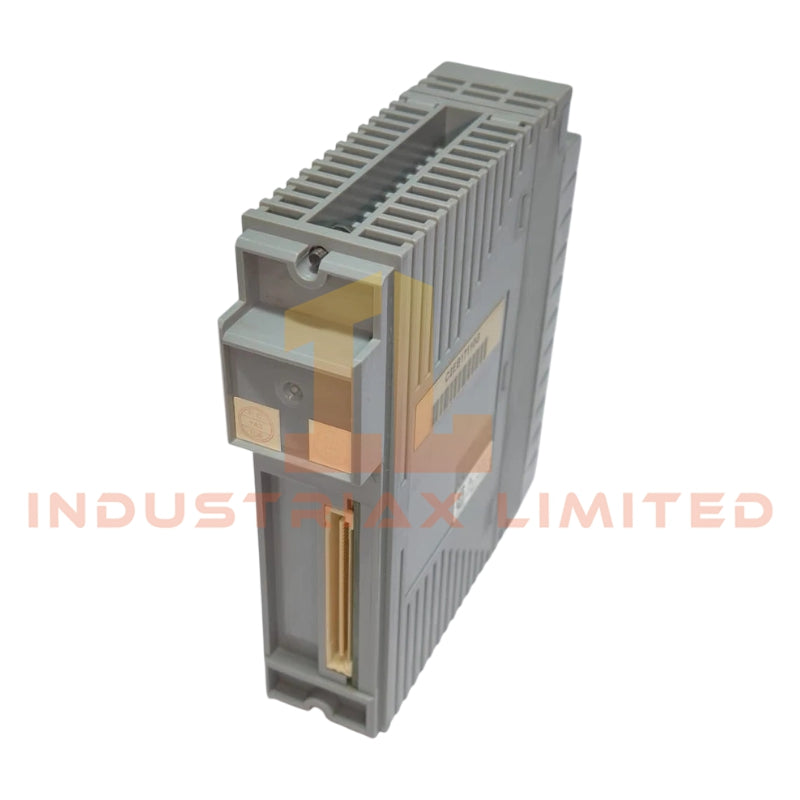

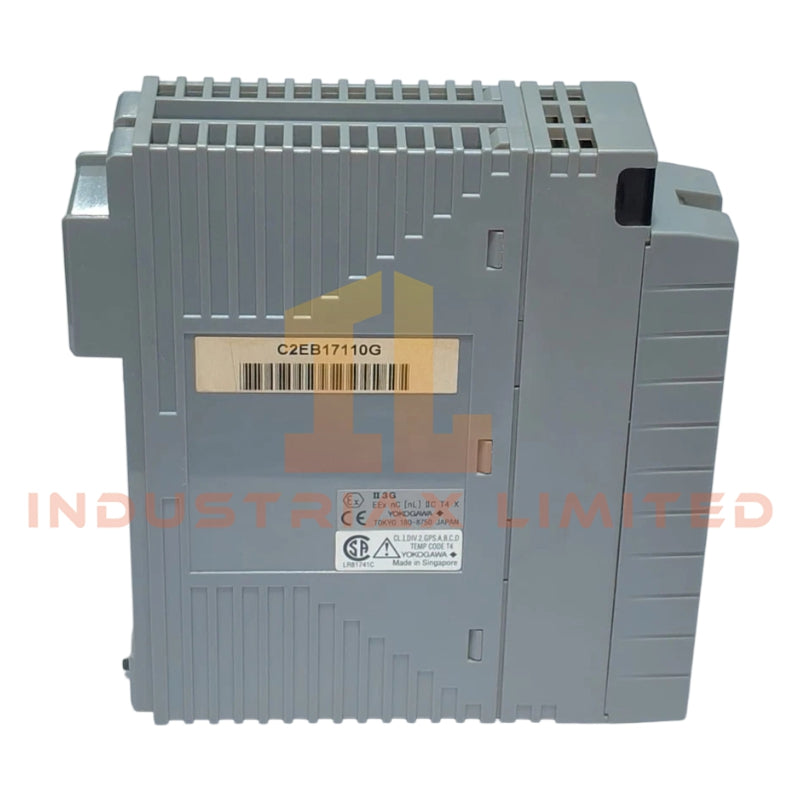

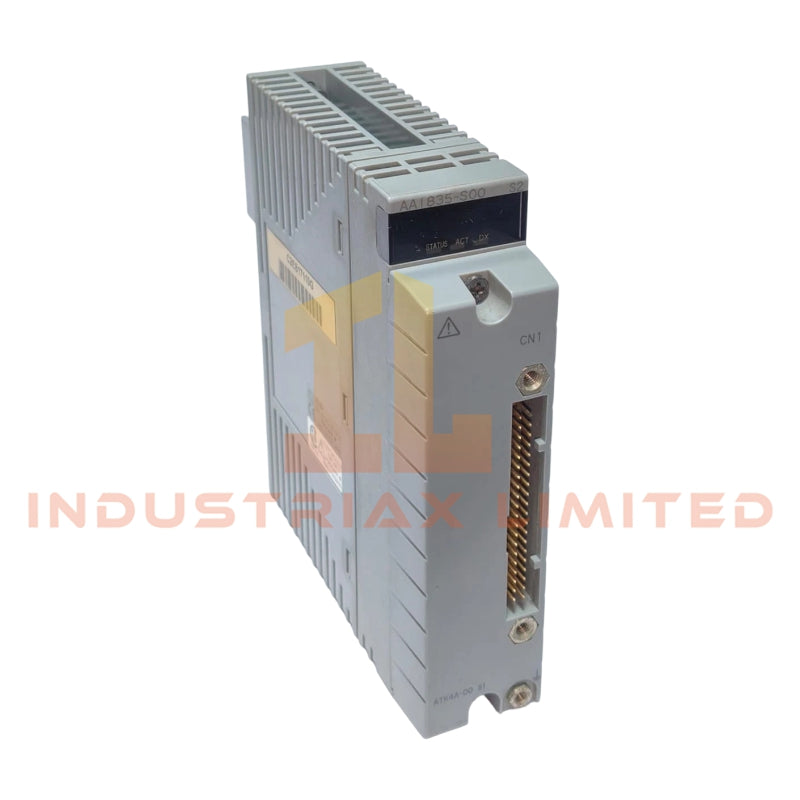

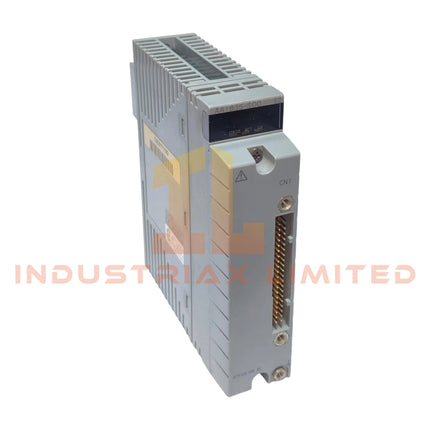

The Yokogawa AAI835-S00 is a precision AC current converter designed for robust signal isolation and standardized current conversion in demanding industrial environments. It delivers reliable conversion from AC inputs to DC current outputs, making it ideal for process monitoring, power analysis, and motor testing. Its compact design and high accuracy make it suitable for both energy monitoring systems and heavy industrial equipment.
Key Technical Specifications:
-
Input Range: AC 0-5A, 50/60Hz
-
Output Signal: DC 4-20mA, 2-wire
-
Accuracy: ±0.1 percent of full scale at 23 degrees C ±5 degrees C
-
Isolation Voltage: 2500V AC for 1 minute between Input, Output, and Power
-
Operating Temperature: -10 degrees C to +55 degrees C
-
Response Time: Less than or equal to 250 milliseconds for 0 to 90 percent step change
-
Power Supply: 20-130V AC/DC or 15-30V DC
-
Compliance Voltage: Minimum 7.5V DC at 20mA output
-
Frequency Characteristics: 45-65Hz with additional error within ±0.1 percent
-
Weight: 1.00 lbs
Applications:
The AAI835-S00 is suited for:
-
Industrial motor drive testing and diagnostics
-
Renewable energy power generation monitoring
-
Heavy machinery energy consumption measurement
-
Process control and automation requiring high-precision AC to DC conversion
FAQ:
Q: Can this converter handle both 50Hz and 60Hz inputs?
A: Yes, the AAI835-S00 supports AC input frequency ranges from 50Hz to 60Hz.
Q: Is the output compatible with standard 4-20mA systems?
A: Yes, the device provides a 2-wire DC 4-20mA output fully compatible with standard industrial control systems.
Q: What is the isolation voltage rating?
A: It provides 2500V AC isolation between input, output, and power terminals for one minute.
Similar Models Comparison:
Compared with AAI835-S01, the S00 model has a slightly faster response time and broader power supply tolerance, making it preferable for applications with variable voltage inputs.
