Overview

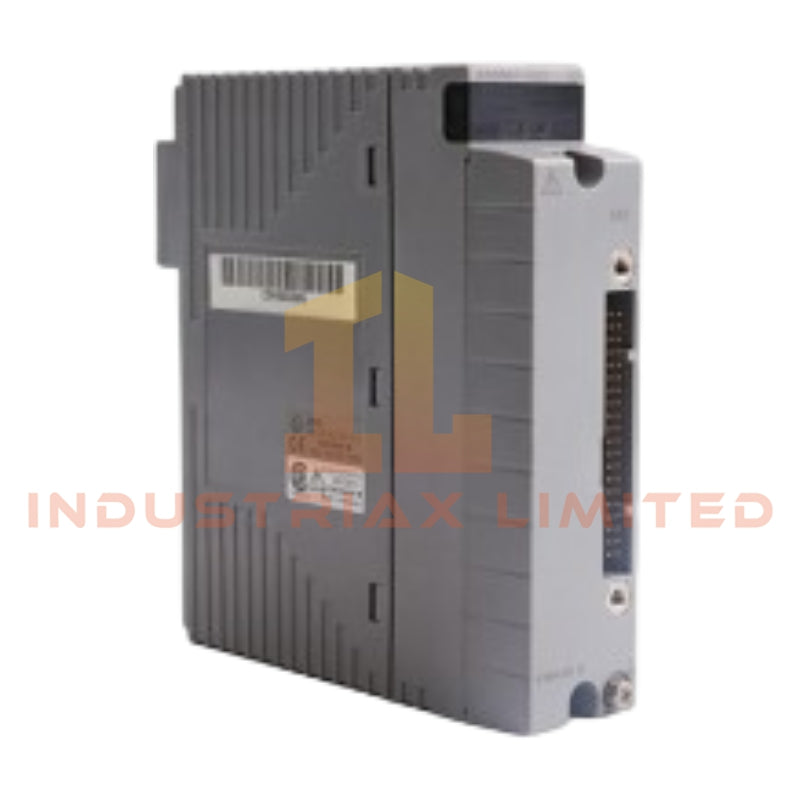

The Yokogawa AAI835-H50/13S00 is a versatile analog input/output module designed to deliver precise and reliable signal processing for industrial automation and process control systems. Its robust design and configurable channels make it suitable for a wide range of applications requiring high accuracy and stable operation.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
Yokogawa |
| Model |
AAI835-H50/13S00 |
| Module Type |
Analog Input/Output Module |
| Channels |
16 Configurable Analog Input/Output |
| Input/Output Signal |
4-20 mA DC |
| Resolution |
12 Bit |
| Accuracy |
±0.1 Percent of Span |
| Power Supply |
24 V DC Nominal |
| Dimensions |
Standard PLC Rack Module Size |
| Weight |
Approximately 0.6 kg |
| Isolation |
500 V DC Channel-to-Channel (typical) |
| Response Time |
Less than 10 ms per channel |
| Operating Temperature |
0 to 55 Degree Celsius |
| Storage Temperature |
-20 to 70 Degree Celsius |
| Mounting |
DIN Rail or Rack Installation |
Applications
-
Process control in chemical, oil & gas, and water treatment plants
-
High-precision signal acquisition in factory automation
-
Integration with PLC and DCS systems for real-time monitoring
-
Multi-channel analog control for research or production facilities
FAQ
Q: Can this module handle both input and output signals simultaneously?
A: Yes, the AAI835-H50/13S00 supports 16 channels configurable for either analog input or output.
Q: What is the typical installation environment?
A: Designed for industrial control racks, it operates reliably in temperatures from 0 to 55 degree Celsius and can withstand standard industrial electrical noise.
Q: How does it compare to similar Yokogawa modules?
A: Compared to the AAI835-H50 series variants, this model offers 12-bit resolution with enhanced channel-to-channel isolation, providing higher precision and safety in dense signal environments.
