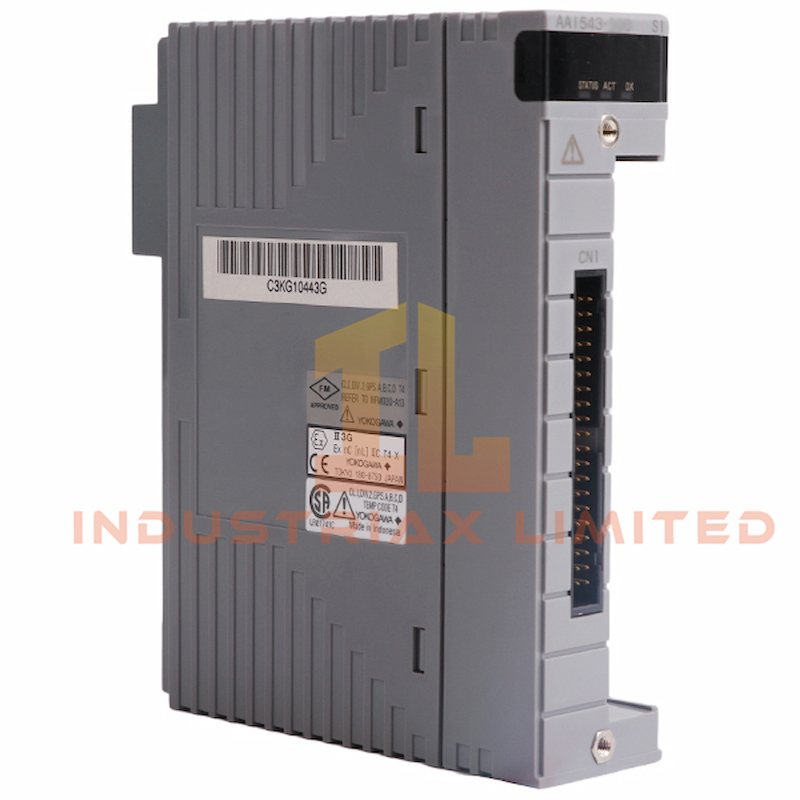

Yokogawa AAI543-H50 Analog Output Module

Yokogawa AAI543-H50 Analog Output Module

Product form

Product Overview The Yokogawa AAI543-H50 is a high-integrity analog output module engineered for use in CENTUM VP and CENTUM CS... Read more

SKU: AAI543-H50
Country of origin: Indonesia

      100% Original and Authentic

    Do you need a large stock? Contact us.

      100% Brand New，Ready to ship

    Do you need a large stock? Contact us.

      Support Refund,7X24h Service

    Support Refund,7X24h Service , Contact us.

      Call us: +86 135 995 07613

    Available on working days between 9:00 am to 6:00 pm

      Email us: sales2@industriaxplc.com

    Available 24/7 for inquiries and support

    Description

    Product Overview

    The Yokogawa AAI543-H50 is a high-integrity analog output module engineered for use in CENTUM VP and CENTUM CS distributed control systems. Featuring 16 isolated output channels, it supports 4–20 mA analog signals and integrates HART digital communication, enabling enhanced diagnostics and remote configuration of field devices such as valve positioners and smart transmitters.

    Applications

    • Distributed Control Systems (DCS)

    • Valve positioner control and diagnostics

    • Smart transmitter configuration via HART

    • Process automation in oil & gas, chemical, and power sectors

    • Redundant control architectures requiring stable analog output

    Technical Specifications

    Attribute Details
    Manufacturer Yokogawa
    Product Number AAI543-H50
    Product Type Analog Output Module
    Output Signal Range 4–20 mA DC
    Channels 16 (individually isolated)
    Communication Protocol HART (digital communication)
    Output Resolution 16-bit
    Accuracy ±0.1% FS @ 25 °C
    Output Load Resistance 250–600 Ω
    Transmitter Power 19–25.5 V DC (max 25 mA/channel)
    Power Supply 24 V DC ±10%
    Operating Temp. -20 °C to +70 °C
    Dimensions Approx. 100 mm × 100 mm × 40 mm
    Weight Approx. 0.3 kg
    Suffix Code -H HART protocol enabled
    Suffix Code -5 No explosion protection, redundant-ready
    Suffix Code -0 Basic type

    Specifications

    • Dimensions: 100 mm × 100 mm × 40 mm
    • Brand: Yokogawa

    Advantages

    • High reliability in industrial environments
    • Supports continuous operation
    • Compatible with major PLC/DCS systems
