Description

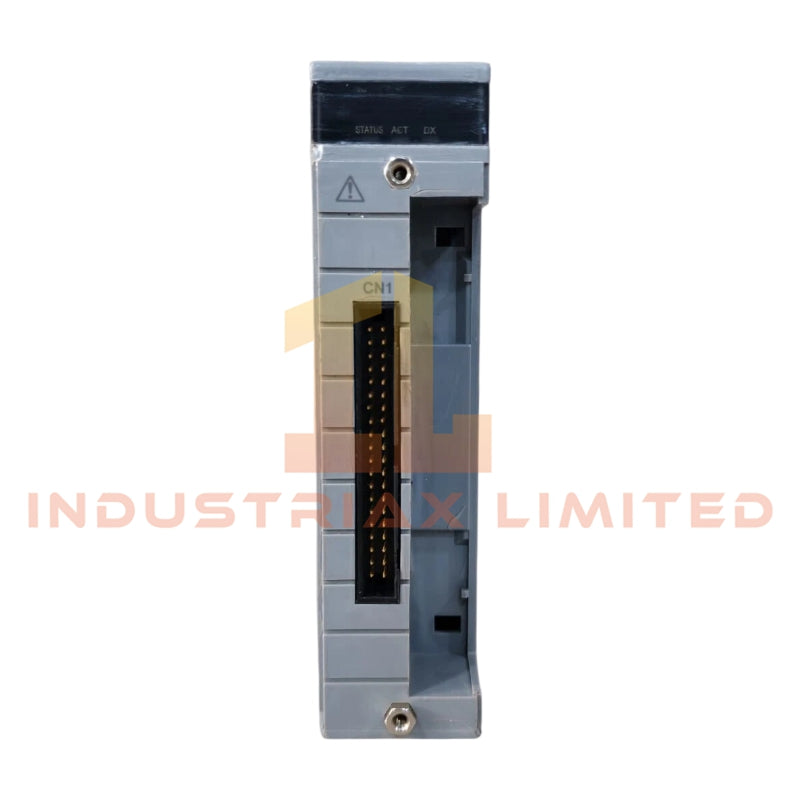

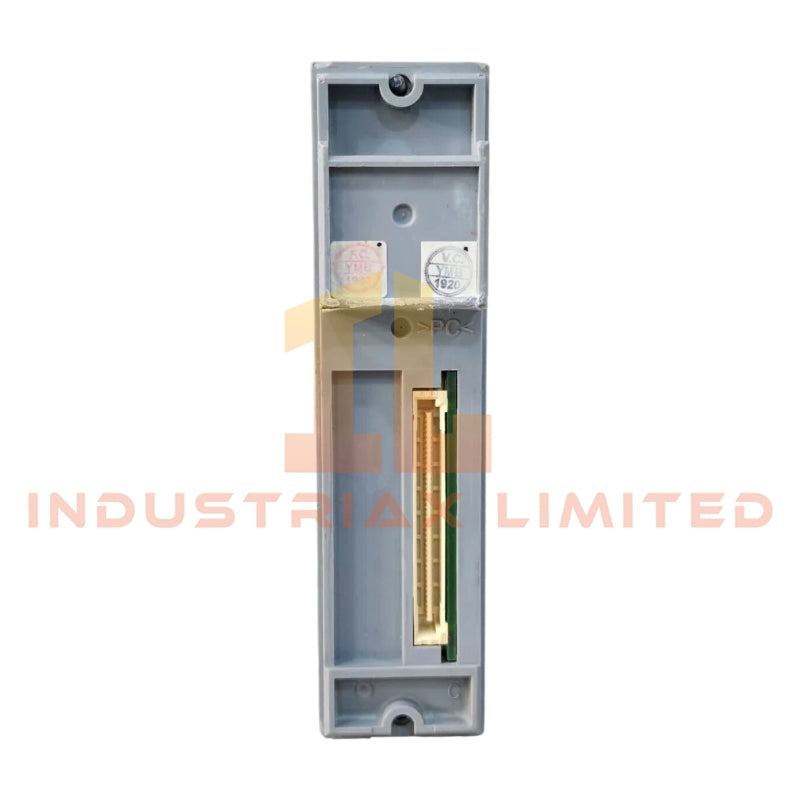

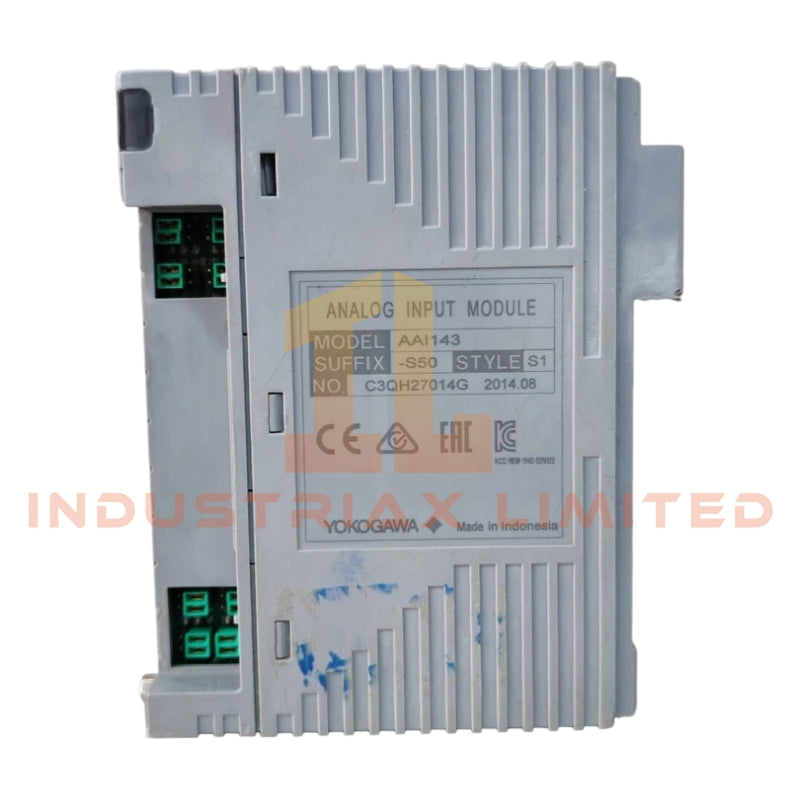

Yokogawa AAI143-S50/A4S00 Analog Input Module

Configured for analog current acquisition in CENTUM VP signal conditioning architecture, the Yokogawa AAI143-S50/A4S00 (AAI143 Analog Input Module) provides direct physical/electrical execution for 4-20 mA field signal conversion into isolated DCS input channels.

Hardware Specifications

Parameter	Specification
Model	AAI143-S50/A4S00
Brand	Yokogawa
Origin	Japan
Input Type	4-20 mA Analog Current
Channel Count	16 channels
Isolation	Channel-to-channel isolated inputs
System Compatibility	Yokogawa CENTUM VP

Process Control Signal Acquisition Characteristics

The Yokogawa AAI143 series is architected for distributed process signal acquisition within DCS environments, with emphasis on channel separation integrity. The module implements channel-to-channel electrical isolation to reduce ground loop interaction in multi-loop analog field wiring. 4-20 mA loop interfaces are terminated at the input stage and digitized for backplane transmission into the control system processing layer. Signal conditioning supports stable conversion behavior under standard industrial current loop loading conditions.

Frequently Asked Questions

Q: Does the AAI143-S50/A4S00 support hot-swap replacement in a live rack?
A: Hot-swap capability depends on system rack design and backplane configuration. Electrical loop interruption behavior must be evaluated at cabinet level.

Q: Are all input channels galvanically isolated from each other?
A: The module is designed with channel-to-channel isolation architecture to minimize interference between individual 4-20 mA loops.

Q: What is the backplane communication method used?
A: Signal data is transmitted through the Yokogawa DCS backplane to the CPU/communication module according to system bus architecture.

Field Installation Guidelines

Maintain correct polarity for all 4-20 mA loop terminations at the ATA4S-00 terminal block interface. Shielded twisted pair wiring is recommended for all analog input loops, with shield termination performed at a single cabinet ground reference point to avoid circulating currents. Ensure adequate torque is applied to pressure clamp terminals to maintain stable low-impedance contact. Avoid routing analog input wiring parallel to high-voltage or switching load conductors to minimize induced noise coupling.

Specifications

• Brand: Yokogawa

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
