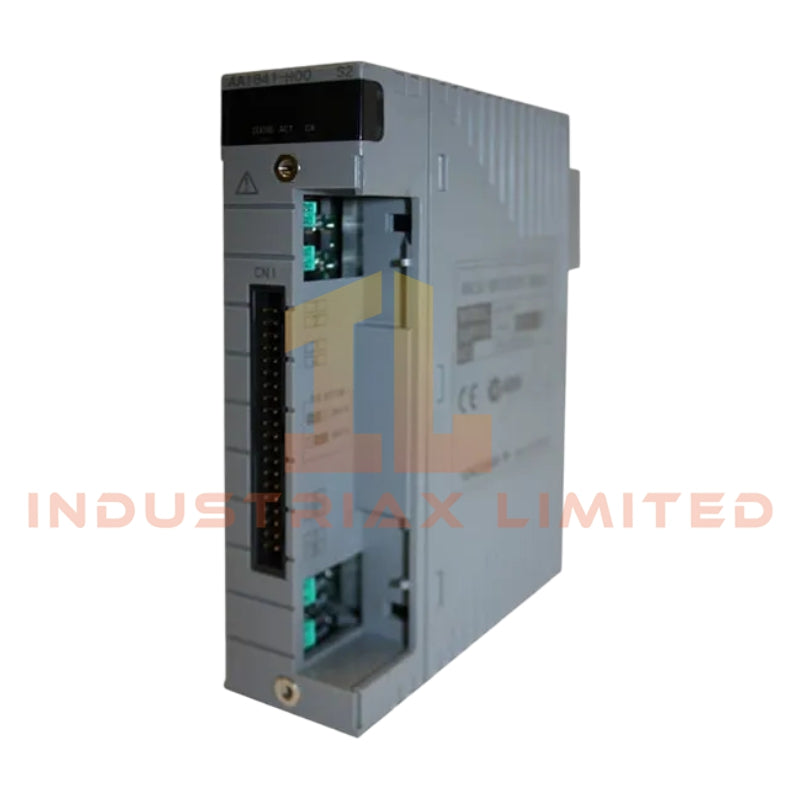

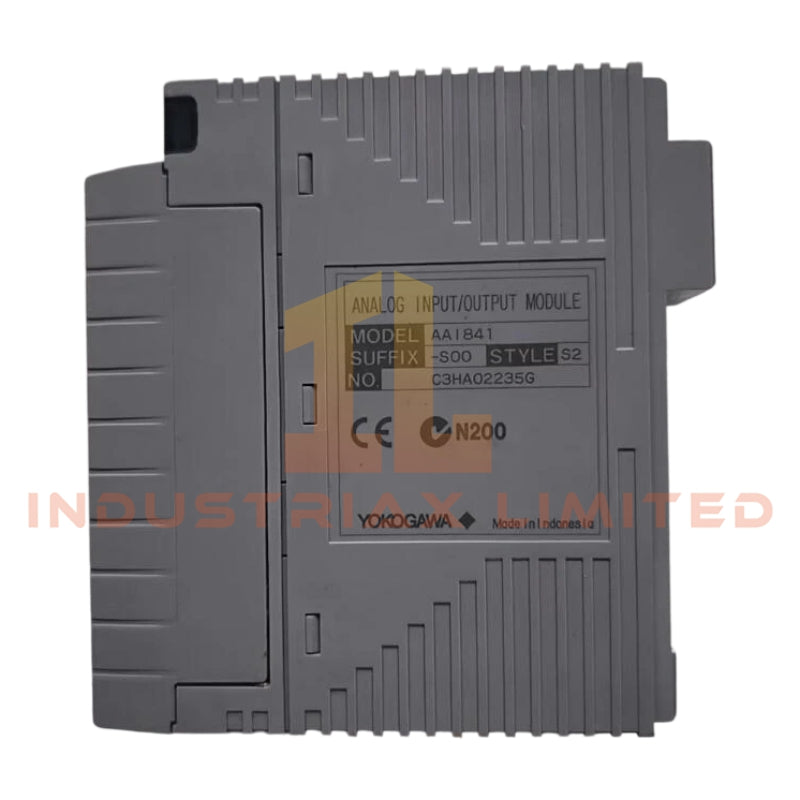

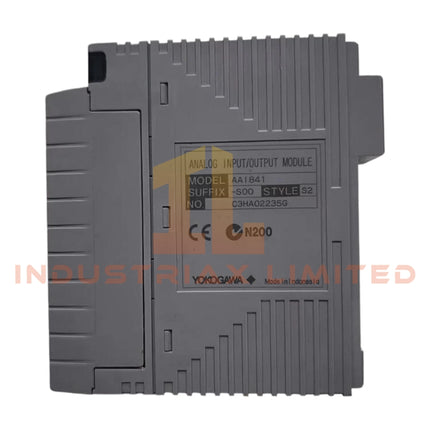

The Yokogawa AA1841-S50 is a high-performance analog I/O module designed for industrial control systems. It supports up to eight input and eight output channels, allowing precise current and voltage measurement and control. The module is non-isolated but can be deployed in dual redundant configurations for enhanced system reliability.
Key Features
-
Eight input channels and eight output channels
-
Supports 4 to 20 mA current input and output
-
Non-isolated differential input for voltage and current signals
-
Compatible with dual redundant configurations
-
High-speed data update and fast response times
Technical Specifications
Input/Output Characteristics
-
Input Channels: 8
-
Output Channels: 8
-
Input Signal: 4-20 mA or 1-5 VDC
-
Output Signal: 4-20 mA
-
Voltage Input Allowable Range: ±1 V or more common-mode voltage
-
Input Resistance: 400 Ohm at 20 mA, 1 MOhm or more for voltage input
-
Output Load Resistance: 0 to 750 Ohm
Accuracy and Performance
-
Input Accuracy: ±16 μA for current, ±4 mV for voltage
-
Output Accuracy: ±48 μA
-
Circuit-Open Detection: Less than 0.65 mA
-
Data Update Period: 10 ms
-
Input Step Response Time: 100 ms
-
Output Step Response Time: 40 ms
Power and Protection
Applications
-
Industrial process monitoring and control
-
Distributed control systems
-
Redundant loop configurations for critical applications
-
Signal conversion and I/O expansion in automation networks
