Product Description
Overview

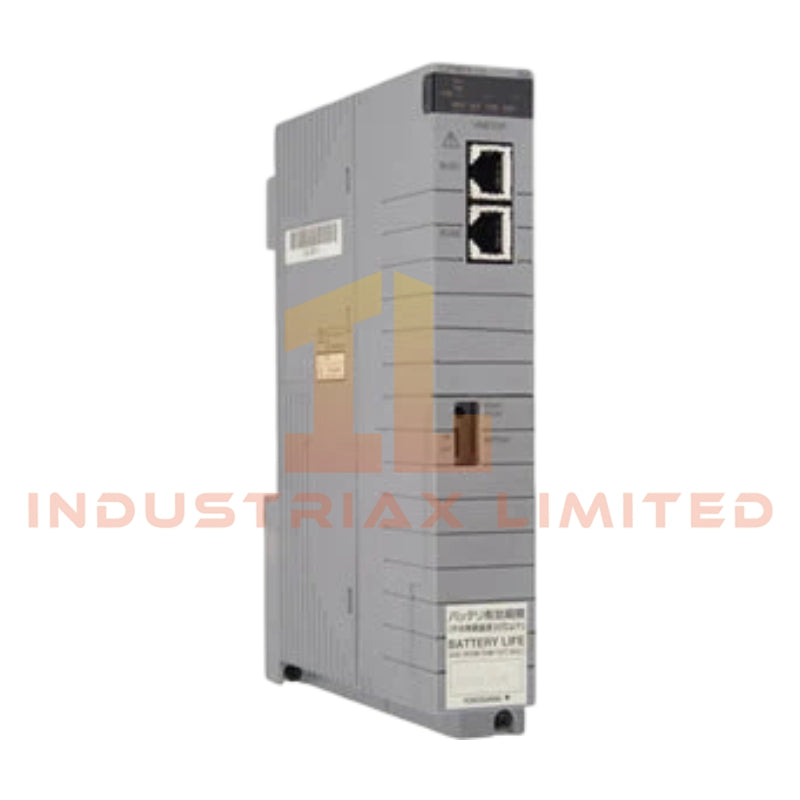

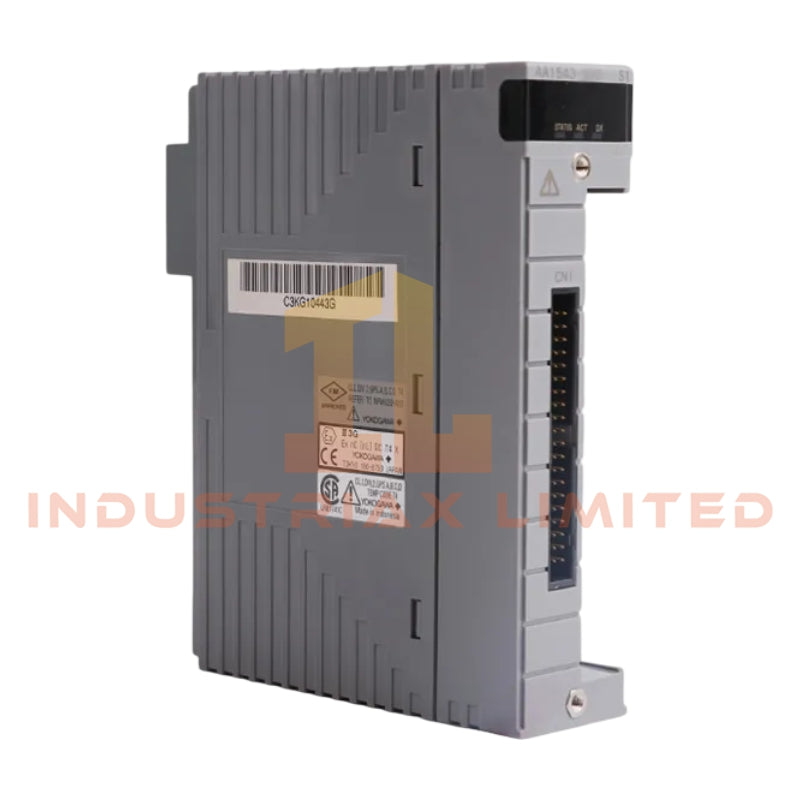

The Yokogawa AA1543-H60 is a high-performance analog output module designed for precision control and process automation. This module delivers reliable signal output, making it ideal for integration into industrial control systems to drive actuators, valves, and control loops.
Key Technical Specifications
-
Model: AA1543-H60
-
Manufacturer: Yokogawa
-
Product Type: Analog Output Module
-
Output Channels: 4 channels
-
Output Type: Configurable 0-20 mA / 4-20 mA
-
Resolution: 16 bit
-
Accuracy: ±0.1% FS
-
Response Time: < 1 ms
-
Load Capacity: Up to 600 ohm
-
Power Supply: 24 VDC ±10%
-
Operating Temperature: -10°C to 55°C
-
Mounting: DIN rail or panel mount
-
Communication Interface: Compatible with standard DCS or PLC systems
-
Dimensions: 100 mm x 50 mm x 120 mm
Applications
Ideal for use in chemical, pharmaceutical, power, and manufacturing automation industries where precise analog signal output is required. Common applications include valve control, process variable regulation, and multi-channel signal distribution.
FAQ
Q: What output types does the AA1543-H60 support?
A: It can be configured for 0-20 mA or 4-20 mA analog output, compatible with a wide range of industrial control systems.
Q: What is the maximum load capacity of the module?
A: It can drive loads up to 600 ohm, ensuring stable signal output.
Q: Does it support DIN rail mounting?
A: Yes, it supports standard DIN rail and panel mounting for easy system integration.
Similar Model Comparison
Compared to AA1543-H61, the AA1543-H60 offers higher output accuracy and faster response, suitable for applications requiring stricter control precision.
