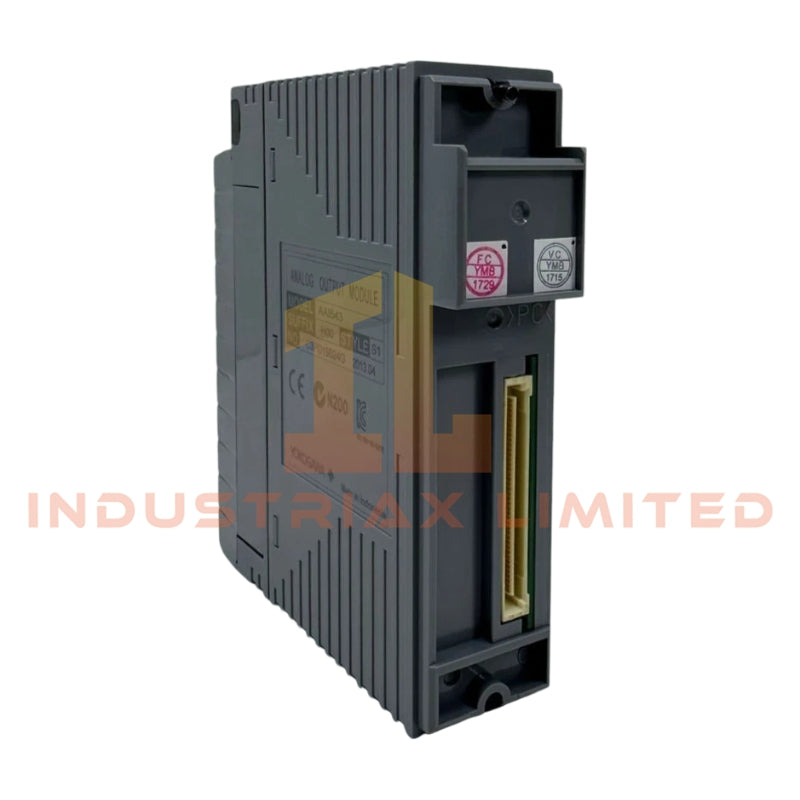

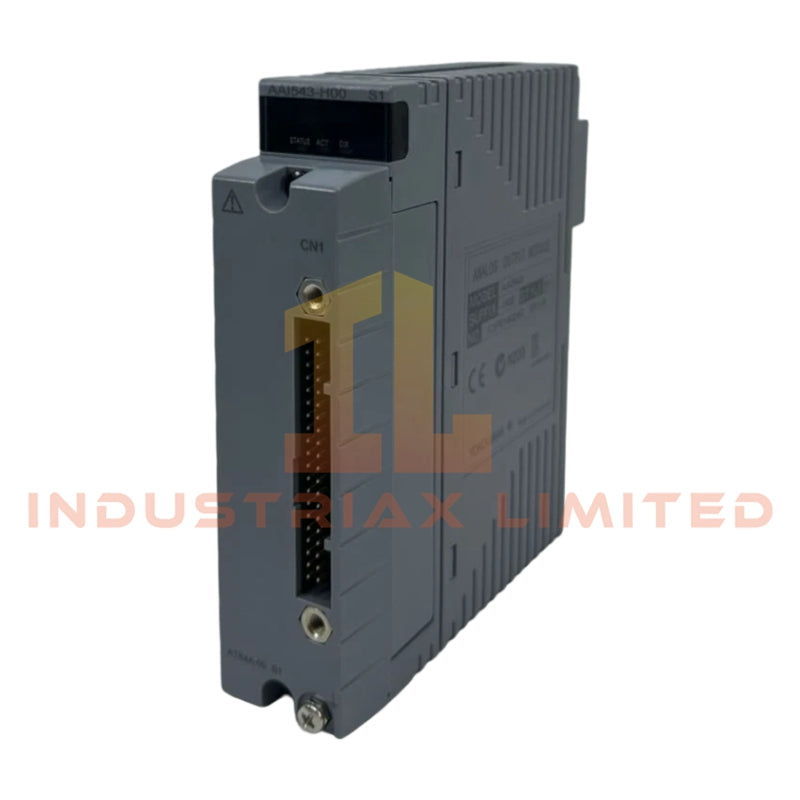

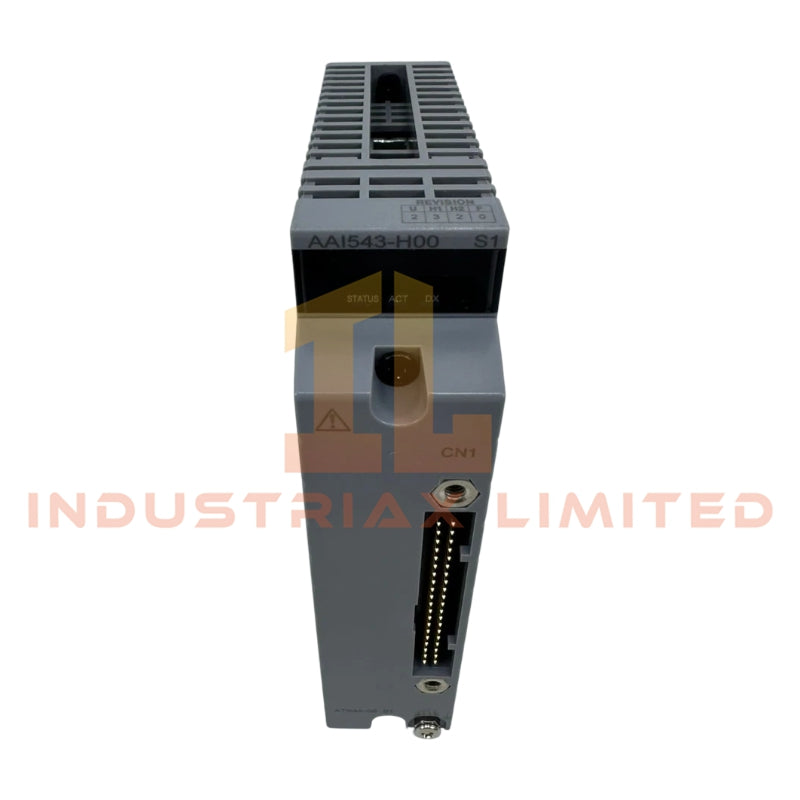

The Yokogawa AA1543-H00/K4A00 is a 16-channel analog output module engineered for high-reliability industrial automation systems. It provides accurate 4-20 mA output signals and includes HART communication support for configuration, diagnostics, and advanced monitoring. The module comes with a KS Cable Interface Adapter for seamless connection to the AEA4D Terminal Board, enabling flexible system integration.
Key Features
-
Model: AA1543-H00/K4A00
-
Brand: Yokogawa
-
Product Type: Analog Output Module
-
Output Channels: 16 isolated channels
-
Output Signal: 4 to 20 mA
-
Maximum Allowable Load Resistance: 0 to 750 ohms
-
Circuit-Open Detection: Less than 0.65 mA
-
Accuracy: ±48 microamps
-
Data Update Period: 10 milliseconds
-
Temperature Drift: ±16 microamps per 10 degree Celsius
-
Withstanding Voltage: 1500 V AC between output and system for 1 minute
-
Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)
-
HART Communication: Supported
-
KS Cable Interface Adapter: Included for connection to AEA4D Terminal Board
-
External Communication: Pressure clamp terminal, MIL connector cable, dedicated KS1 cable
-
Weight: Approximately 0.4 kg
Applications
The AA1543-H00/K4A00 is ideal for process control applications requiring high reliability and precision. Commonly used in distributed control systems (DCS), chemical plants, and manufacturing lines, it supports redundant configurations for enhanced operational safety.
FAQ
Q: Can this module detect open circuit conditions?
A: Yes, it detects open circuits at less than 0.65 mA output.
Q: What communication protocols are supported?
A: The module supports HART communication for transmitter configuration and diagnostics.
Q: Does it include the cable interface adapter?
A: Yes, the KS Cable Interface Adapter is included for connection to the AEA4D Terminal Board.
