Description

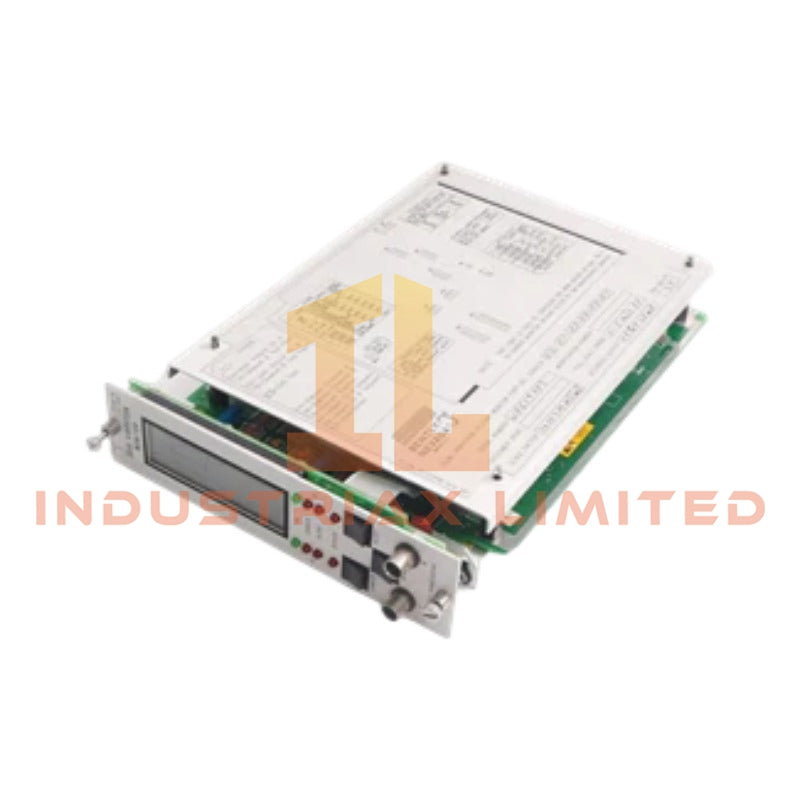

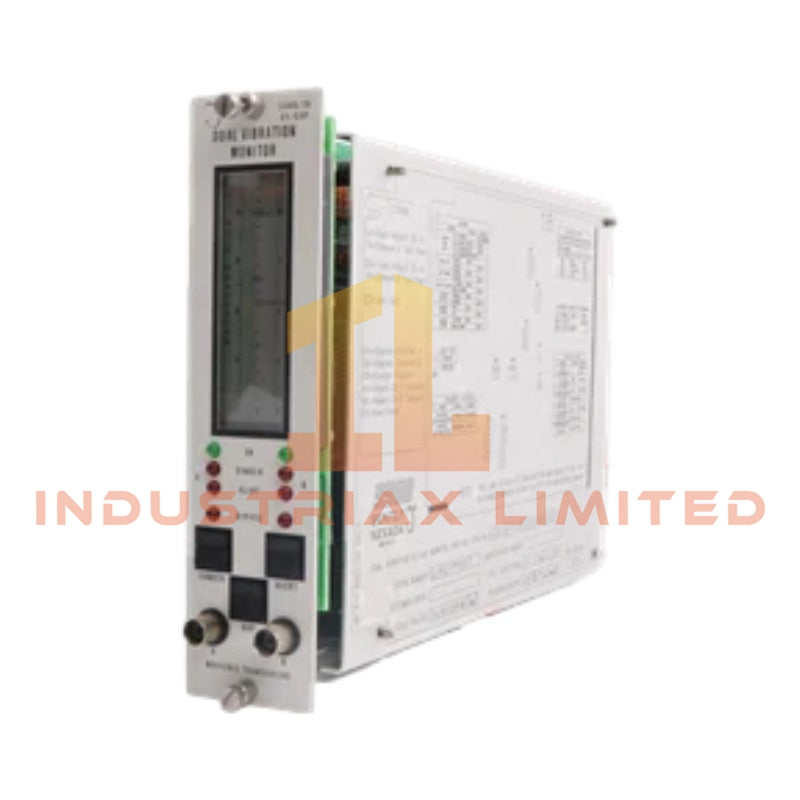

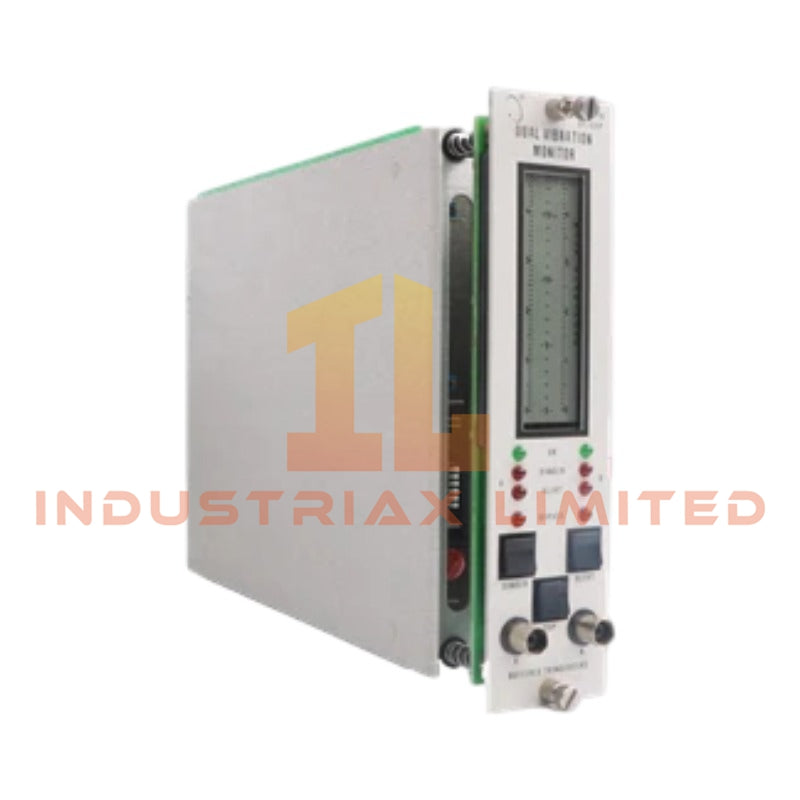

Bently Nevada 3300/16 XY/Gap Dual Vibration Monitor
Configured for radial vibration and shaft gap acquisition in Bently Nevada 3300 machinery protection system, the Bently Nevada 3300/16-12-01-01-00-00-00 (3300/16 XY/Gap Dual Vibration Monitor) provides direct physical/electrical execution of dual-channel proximity probe signal conditioning, supporting simultaneous vibration and average shaft position measurement.
Suffix Breakdown & Model Matrix
-
3300/16: XY/Gap Dual Vibration Monitor base module
-
-12: Full-scale range 0 - 150 um peak-to-peak
-
-01: 3300 / 7200 / 3300XL 8 mm proximity probe input compatibility (200 mV/mil)
-
-01: Epoxy-sealed relay configuration
-
-00: No agency approval
-
-00: No internal safety barriers
-
-00: No trip multiply function
-
-00: Factory default reserved option
Hardware Specifications
| Parameter |
Specification |
| ModelBrand |
Bently Nevada 3300/16-12-01-01-00-00-00 |
| Origin |
USA |
| OperatingTemp |
0 degC to +65 degC |
| PowerConsumption |
2 W nominal |
| Channels |
2 (XY radial vibration + gap) |
| Input Type |
3300 / 7200 / 3300XL 8 mm proximity probes |
| Sensitivity |
200 mV/mil |
| Vibration Range |
0 - 150 um pp |
| Outputs |
4-20 mA, 0 to -10 VDC, 1-5 VDC |
| Relay Type |
Epoxy-sealed mechanical relays |
Eddy-Current Probe Scaling and Gap Voltage Validation
The module processes eddy-current probe inputs using calibrated 200 mV/mil scaling for displacement reconstruction. Gap voltage validation is referenced against nominal -10 VDC center position behavior, enabling stable shaft centerline tracking. Cross-channel comparison logic is applied to reduce measurement drift between X and Y vibration planes while maintaining separation of radial vibration and DC gap components.
Frequently Asked Questions
Q: Does the module support hot-swap replacement in a live rack?
A: Hot-swap is dependent on backplane design. Electrical insertion is allowed only when rack supports live module exchange; field terminals must remain isolated during removal.
Q: What is the backplane loading impact per module?
A: The module draws approximately 2 W nominal power; backplane loading is determined by total rack configuration and power supply capacity.
Q: Can firmware or configuration be migrated between identical units?
A: Configuration parameters can be replicated, but calibration must be verified due to probe scaling and channel-to-channel alignment requirements.
Field Installation Guidelines
-
Install only in compatible Bently Nevada 3300 rack chassis
-
Maintain continuous coaxial shielding from probe to monitor input terminal
-
Ensure probe gap voltage stabilizes near calibrated center (-10 VDC reference region) before enabling alarms
-
Avoid routing proximity probe wiring alongside VFD or high voltage conductors
-
Verify XY channel polarity alignment before enabling vibration logic
-
Confirm relay configuration state (Alert/Danger) prior to operational service
-
Ensure proper grounding of rack chassis to reduce signal noise coupling
