Description

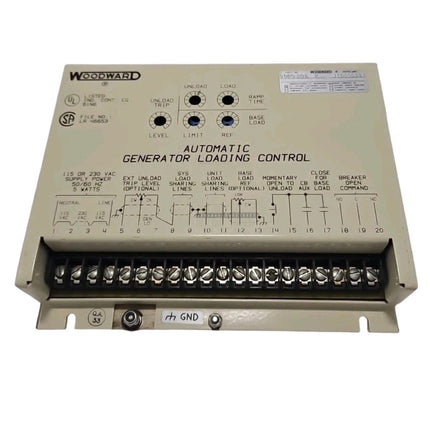

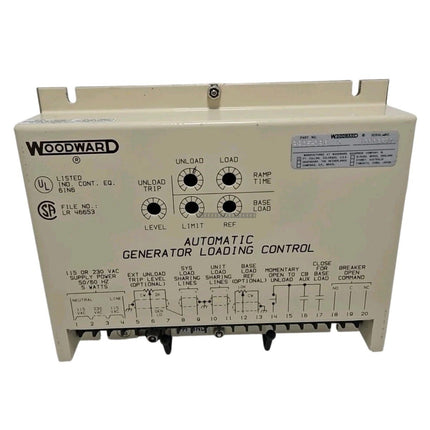

The Woodward 9905-096 is a precision-engineered Automatic Generator Loading Control designed for seamless integration into industrial power systems. This module provides critical control over generator loading and unloading processes, ensuring grid stability and synchronized transitions. Primarily deployed in power generation plants, refineries, and heavy mining operations, the 9905-096 optimizes engine performance and protects equipment from thermal stress. Its high-reliability circuitry is essential for minimizing downtime and maintaining continuous power supply in mission-critical environments.
Technical Architecture and Functional Logic
The 9905-096 utilizes an advanced analog-to-digital processing framework to manage ramp rates and load limits with extreme accuracy. It features integrated synchronization logic that monitors bus voltage and frequency, allowing for smooth loading sequences without manual intervention. The hardware is housed in a ruggedized chassis designed to withstand high-vibration industrial settings. The control logic includes built-in safeguards for reverse power protection and overload scenarios, ensuring the generator operates within its defined thermal and mechanical envelopes.
Technical Specifications
| Model |
9905-096 |
| Brand |
Woodward |
| Function |
Automatic Generator Loading Control |
| Input Voltage |
24 VDC |
| Operating Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module from the rack or panel.
- Mount the unit in a location that provides adequate ventilation and keeps the device clear of high-EMI sources such as large contactors or high-voltage cabling.
- Use shielded cables for all I/O connections to minimize signal interference.
- Ensure proper chassis grounding to the common plant ground to maintain signal integrity and protect against surge events.
- Handle the module using standard ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
FAQ
What is the primary function of the Woodward 9905-096?
The 9905-096 is designed to automate the loading and unloading of generators, ensuring synchronized transitions and grid stability in industrial power applications.
What environmental conditions can this module withstand?
The unit is designed for rugged industrial environments with an operating temperature range of -40 to 70 deg C and a chassis built to withstand high-vibration settings.
