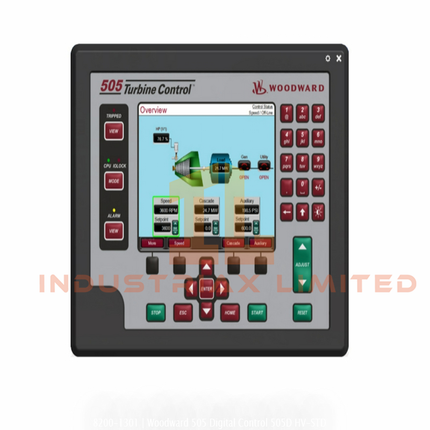

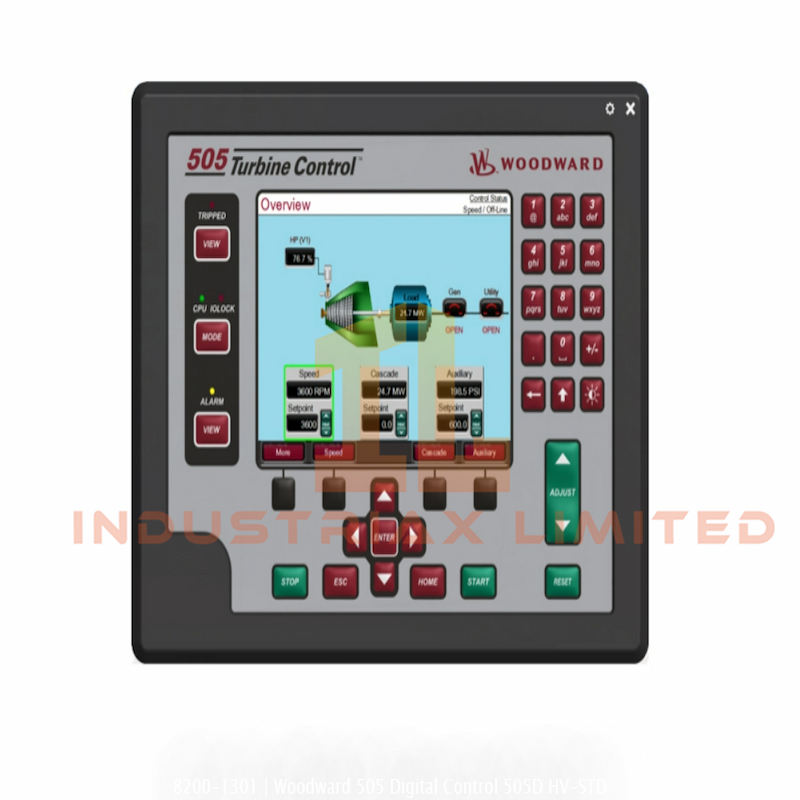

The Woodward 8200-1301 Turbine Control Panel, powered by the advanced 505D controller, delivers precision control for single or dual actuator steam turbines. Fully field-programmable, it adapts to a wide range of generator and mechanical drive applications, reducing engineering time and cost. Whether operating stand-alone or integrated into a Distributed Control System (DCS), this panel offers robust turbine management with dynamic PID coordination and extensive safety features.

Applications

• Steam turbine control in industrial plants

• Generator load and speed regulation

• Mechanical drive systems

• Ancillary process control (seal gas, lube oil, gland seals)

• Import/export balancing, frequency control, and power optimization

Additional Capabilities

• 10 DI trip inputs & 10 alarm inputs

• Auto Start Sequence (hot/cold start)

• Critical Speed Avoidance (3 bands)

• Remote droop and frequency deadband

• Isochronous load sharing with DSLC-2

• Peak speed indication and zero speed detection

Technical Specifications

Specifications

• Dimensions: 38 cm × 36 cm × 10 cm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
