Description

Product Overview

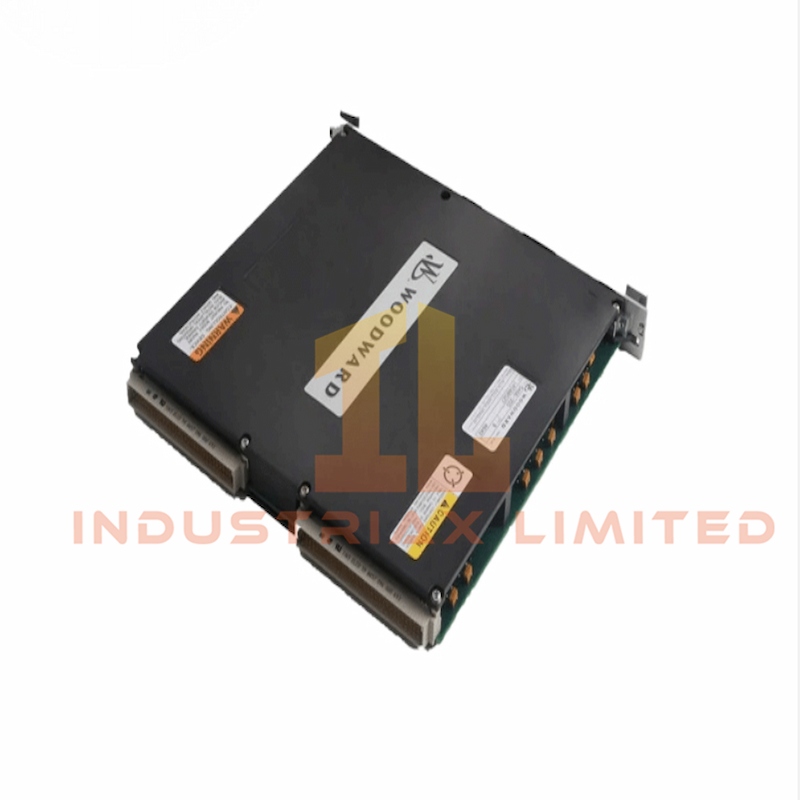

The Woodward 5466-355 NetCon Remote Chassis Transceiver is a high-speed communication module designed for MicroNet Digital Control Systems using CPU 68040 architecture. Engineered for robust data exchange across remote I/O chassis, this transceiver ensures reliable transmission of control, data, and address signals via differential line drivers operating at VME bus speeds.

Key Features

• Model: 5466-355

• Series: MicroNet Digital Control

• System Compatibility: CPU 68040 only

• Interface:

  • High-speed differential line drivers

  • VME transmission rate

  • Parallel bus communication

• Connectors:

  • Dual 100-pin Micro-D metal shell connectors

  • Robust cable interface for reliable signal integrity

• Installation Notes:

  • No switches or LEDs

  • Must be installed in Slot 1 of each expansion chassis

  • Use termination resistor variant only in the last chassis

• Signal Safety:

  • Prevents signal distortion and reflection

  • Supports IOLOCK logic via chassis decoder activation

• Cable Guidelines:

  • 0.9 m cables for T-Module connections

  • 3 m cables for Main Chassis and final expansion links

• Troubleshooting:

  • Check and replace cables if module malfunctions

  • Replace module if issues persist

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 120 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
