Description
Product Overview

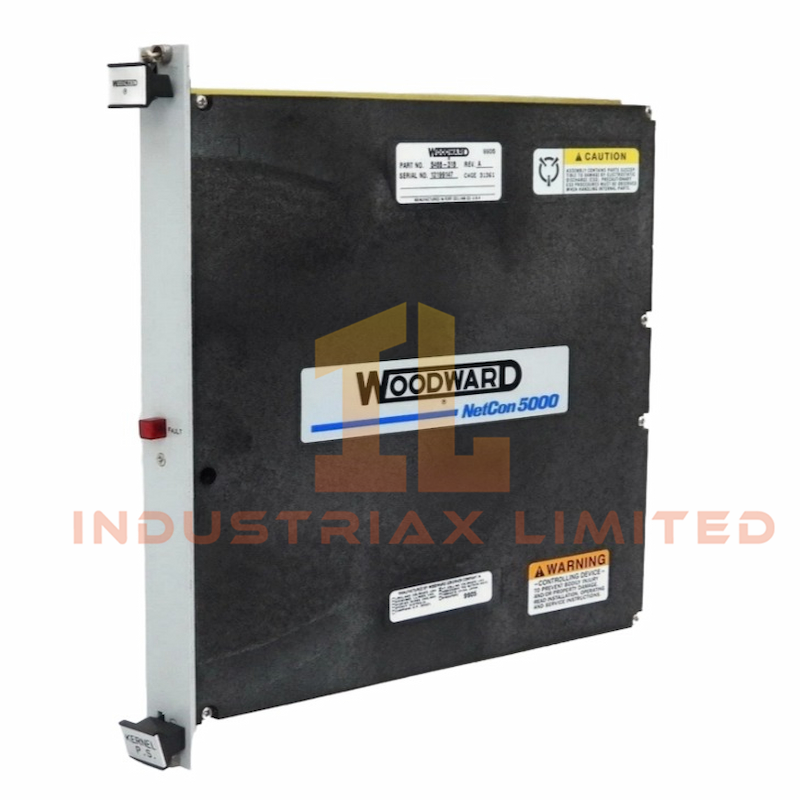

The Woodward 5466-346 NetCon Module converts digital CPU commands into four proportional actuator signals. Each channel delivers either 0–25 mAdc or 0–200 mAdc, depending on system configuration. The module uses dual-port memory via VME-bus for output scheduling and data exchange.
A dedicated microcontroller scales outputs using EEPROM calibration constants and monitors voltage and current levels. It detects channel faults and load anomalies, triggering the FAULT LED when necessary. The system can disable individual drivers to isolate issues without halting operation.
Installation Notes
Slide the 5466-346 module into card guides and secure it with two front-panel screws. Use the top and bottom handles to disengage the board from the motherboard connectors safely.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
Woodward |
| Model Number |
5466-346 |
| Series |
MicroNet Digital Control |
| Input Voltage |
24 Vdc |
| Operating Current |
4 mA |
| Output Channels |
4 (Proportional Actuator Signals) |
| Output Range |
0–25 mAdc or 0–200 mAdc |
| Dimensions |
16 cm × 16 cm × 12 cm |
| Weight |
0.8 kg |
| Memory Interface |
VME-bus, dual-port memory |
| Calibration Storage |
EEPROM |
| Fault Indicator |
FAULT LED |
Application & Compatibility
The Woodward 5466-346 module suits actuator control in high-reliability automation systems. It integrates seamlessly with MicroNet Digital Control platforms and supports proportional output for turbine governors, industrial drives, and process actuators.
Its fault detection and channel isolation features make it ideal for aerospace, energy, and safety-critical environments. Use part number 5466-346 when ordering from authorized Woodward distributors.
