Description

Product Overview

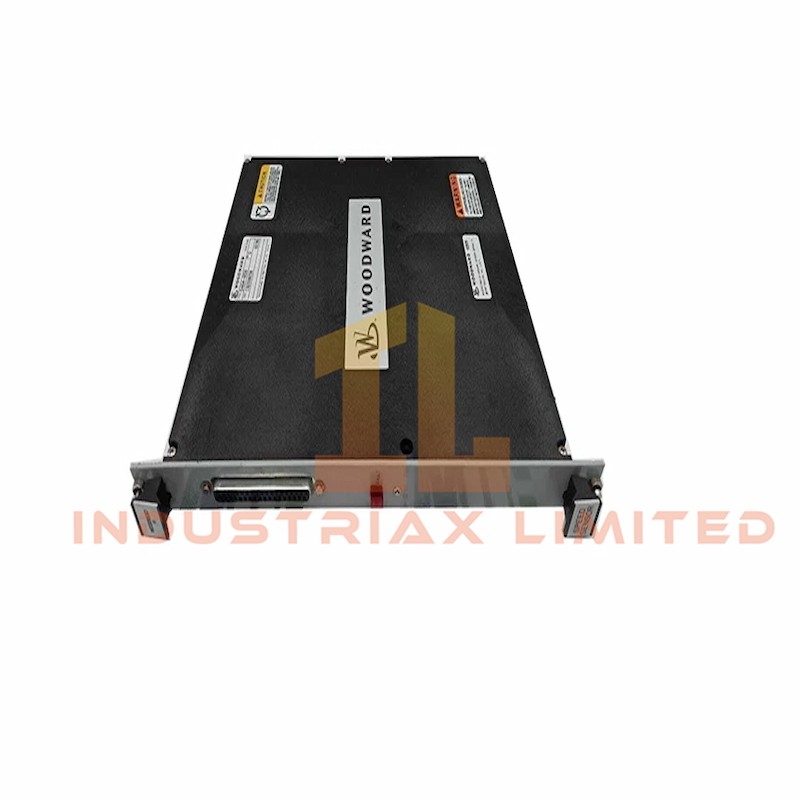

The Woodward 5464-654 is a high-density 64-channel discrete output module designed for MicroNet™ Digital Control Systems. It delivers non-isolated relay driver signals in response to CPU commands, enabling precise control of field-connected devices such as prime movers.

Key Features

• Model: 5464-654

• Series: MicroNet Digital Control

• Output Channels: 64 discrete outputs

• Signal Type: Relay driver signals (non-isolated)

• Calibration: No potentiometers or calibration required

• Hot-Swap Ready: Plug-and-play replacement with same part number

• FTM Configurations:

  • Dual FTM I/O options

  • Daisy-chained relay module connectivity

• Installation:

  • Card guide chassis mounting

  • Dual screw retention

  • Toggle handles for safe disengagement

• Power Requirements: External 24 Vdc power for relay modules

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 12 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
