Description

Product Overview

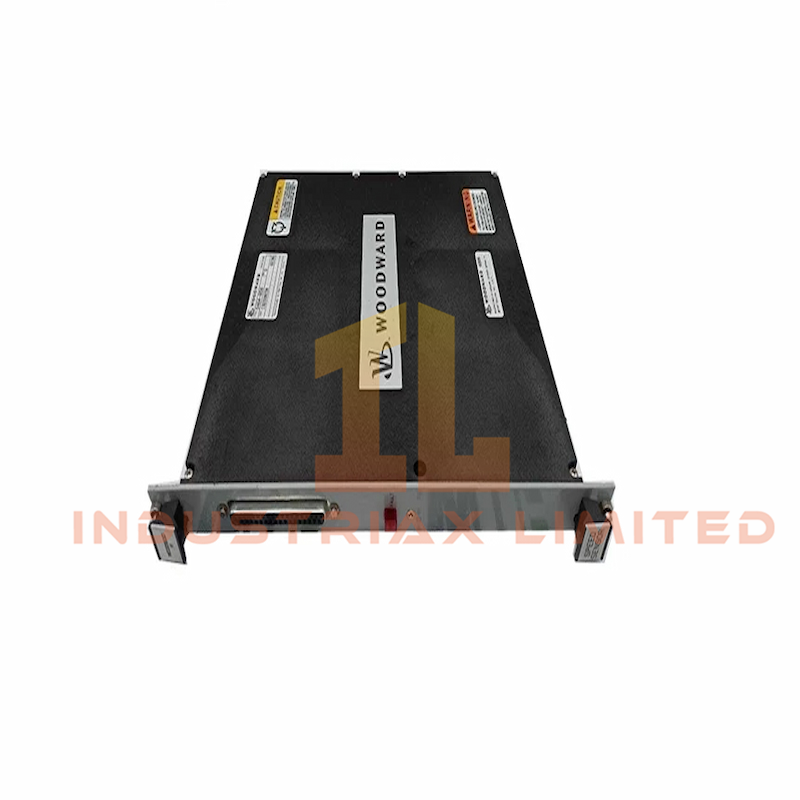

The Woodward 5464-648 is a precision-engineered 8-channel analog output module designed for MicroNet™ Digital Control Systems, specifically in gas turbine applications. It delivers configurable analog signals—voltage or current—to control external devices and processes with high accuracy and reliability.

Key Features

• Model: 5464-648

• Series: MicroNet Digital Control

• Output Channels: 8 independent analog outputs

• Signal Type: Configurable voltage (e.g., 0–10V) or current (4–20mA)

• Resolution & Accuracy: High-resolution output with tight tolerance control

• Communication Protocols: Compatible with Modbus, Profibus, EtherCAT (system dependent)

• Configuration: Programmable output ranges, scaling factors, and signal parameters

• Diagnostics:

  • Signal quality monitoring

  • Fault detection and reporting

  • LED indicators for status and error conditions

• Electrical Isolation: Protects control system from voltage spikes and ground loops

• Integration: Interfaces with PLCs and DCS for turbine and industrial automation

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 12 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
