Description

Product Overview

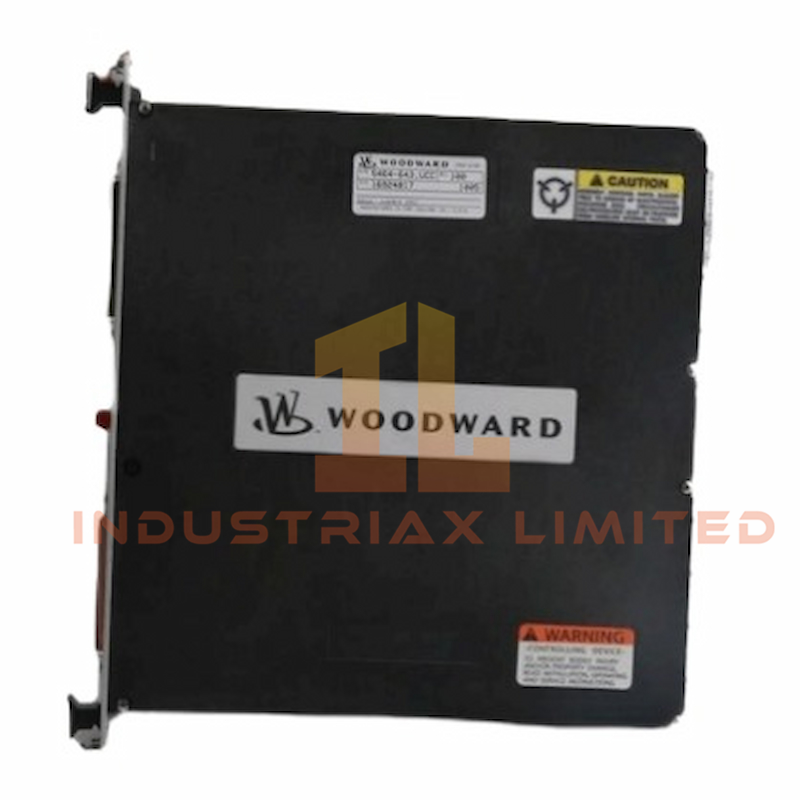

The Woodward 5464-545 NetCon Module is a four-channel actuator driver designed for MicroNet™ Simplex Digital Control Systems. It receives digital commands from the CPU and outputs precise, proportional actuator signals with ranges of 0–25 mAdc or 0–200 mAdc, ideal for turbine and industrial automation control.

Key Features

• Model: 5464-545

• Series: MicroNet Digital Control

• Actuator Channels: 4 proportional outputs

• Signal Range: 0–25 mAdc / 0–200 mAdc

• Interface: VME-bus dual-port memory

• Calibration: EEPROM-based scaling

• Fault Monitoring: Voltage/current diagnostics per channel

• LED Indicators: FAULT LED for system or microcontroller-detected issues

• Driver Control: Individual channel disable capability

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 12 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
