Description

Product Overview

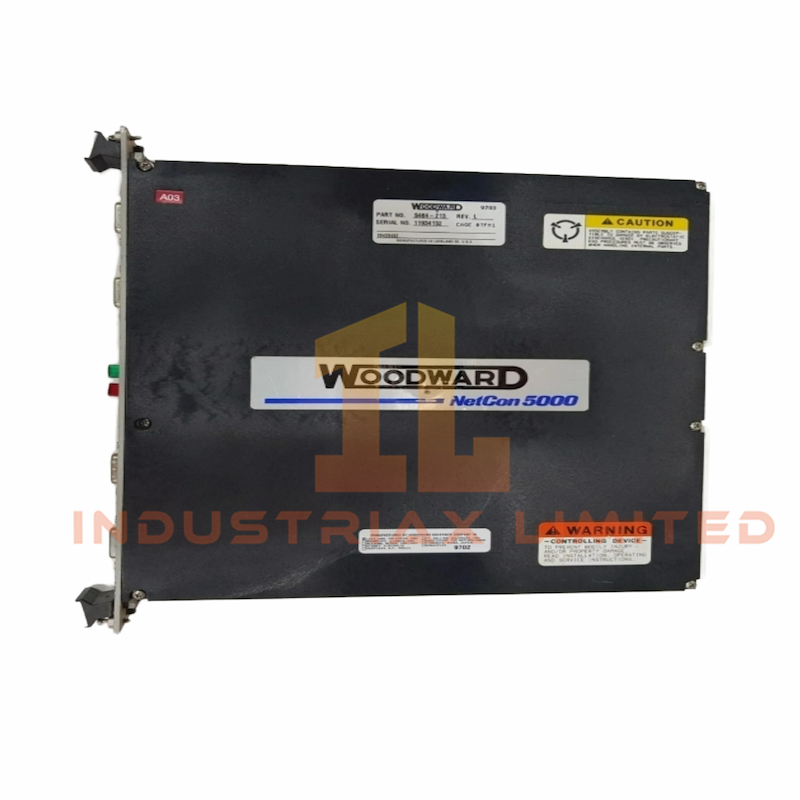

The Woodward 5464-213 Netcon Serial I/O Card is a smart module designed for MicroNet Digital Control systems. It features onboard microcontrollers that manage rate-group scheduling, fault detection, and automatic calibration with minimal CPU intervention. During initialization, the module performs self-tests and signals operational status via LED indicators.

Key Features

• Model: 5464-213

• Manufacturer: Woodward

• Series: MicroNet Digital Control

• Smart I/O Functionality:

  • Onboard microcontroller

  • Rate-group scheduling via CPU broadcast

  • Automatic calibration and fault detection

• LED Indicators:

  • Off = Initialized

  • On = I/O fault

• Input Monitoring: Precision voltage reference per channel

• Output Monitoring: Voltage/current fault detection

• Fuse Access: Replaceable via housing cutout

Technical Specifications

Specifications

• Dimensions: 160 mm × 160 mm × 12 mm
• Brand: Woodward

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
