Description

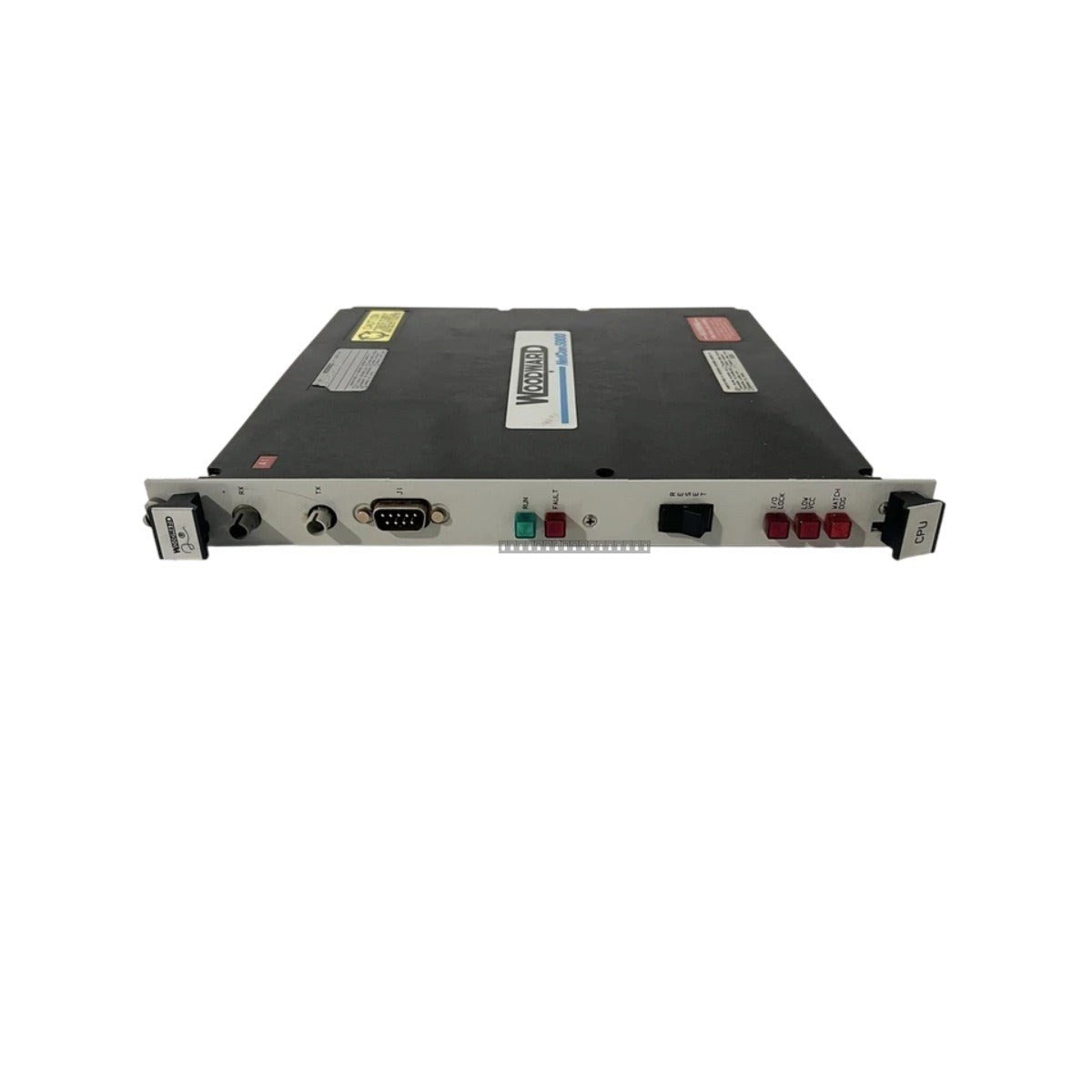

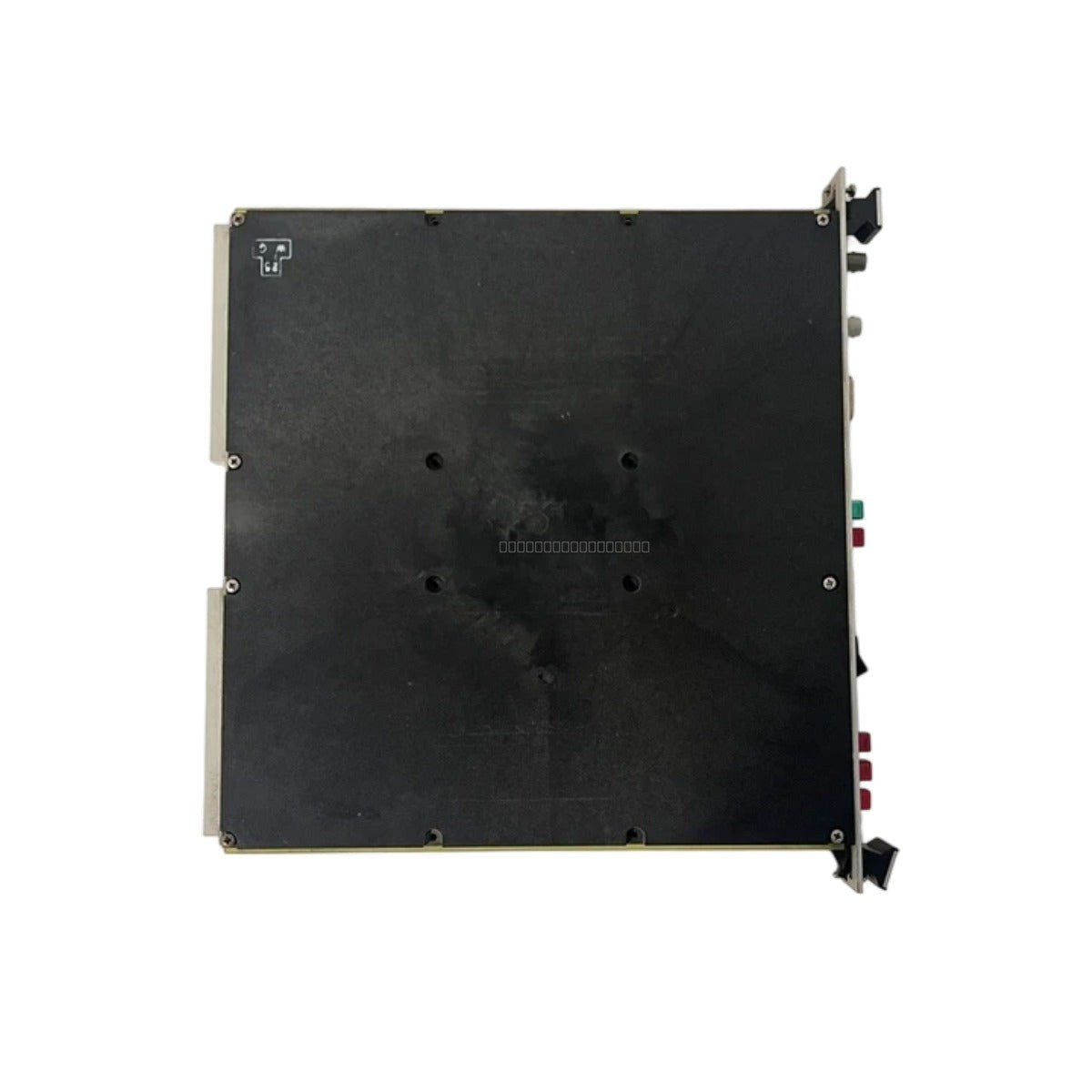

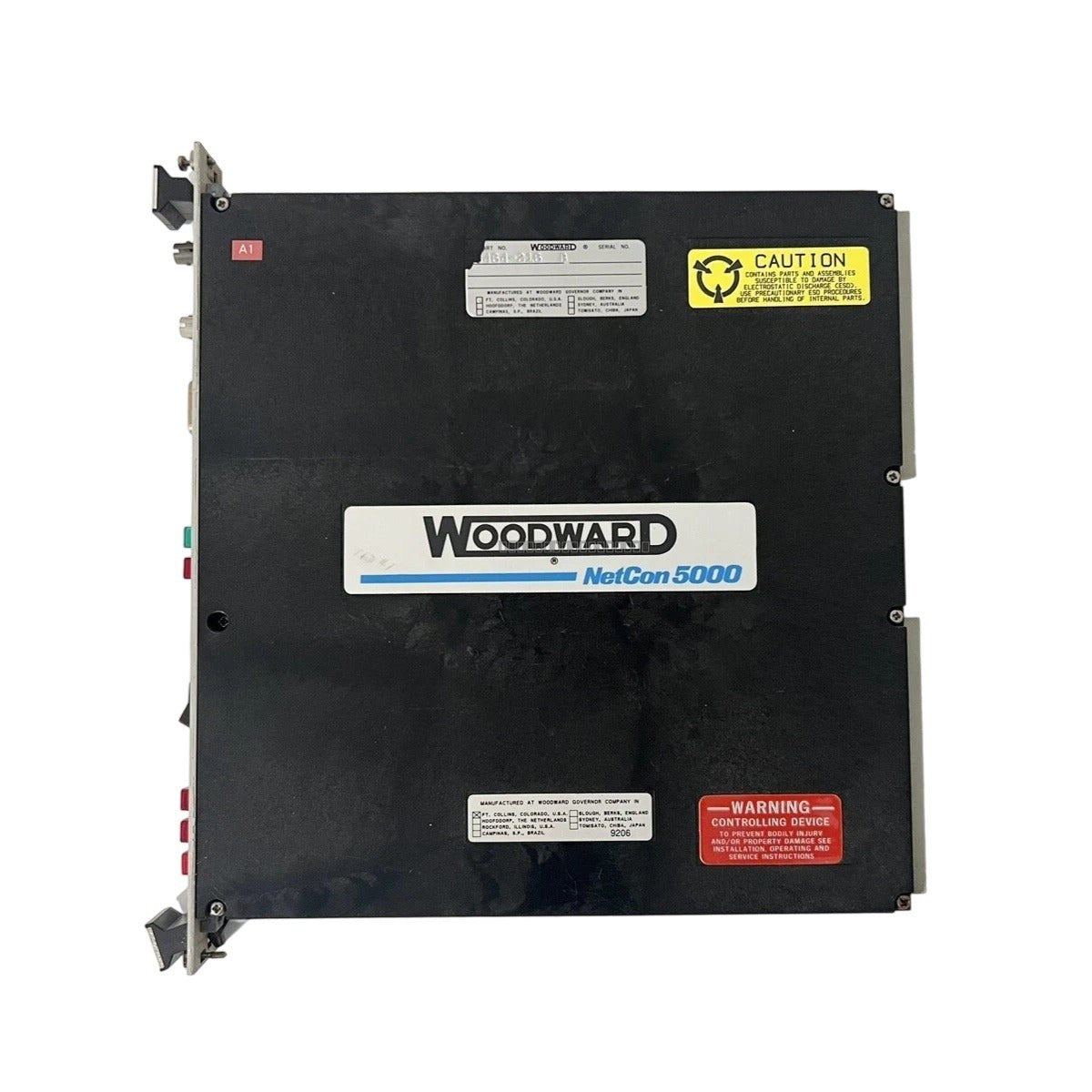

The Woodward 5464-210 is a high-precision Actuator Driver module engineered for integration with Woodward MicroNet and NetCon control systems. This module serves as the critical interface between digital control logic and mechanical actuators, providing the high-current drive necessary for precise control of fuel valves and steam turbine nozzles. By facilitating rapid and accurate positioning of final control elements, the 5464-210 maintains tight closed-loop control, minimizes system oscillations, and prevents unplanned shutdowns in critical turbomachinery applications.
Features
- High-bandwidth output stage for driving proportional actuators with minimal thermal drift.
- Supports LVDT and RVDT feedback configurations for precise position verification.
- Integrated onboard diagnostics for monitoring open circuits, short circuits, and over-temperature conditions.
- Robust, vibration-resistant architecture suitable for high-density industrial control cabinets.
- Designed for low electromagnetic interference (EMI) to ensure signal integrity.
Applications
The 5464-210 is widely deployed in power generation, oil and gas refineries, and large-scale mining operations. It is specifically utilized in governor systems requiring high-power amplification for industrial valve regulation and turbine control.
Technical Specifications
| Model |
5464-210 |
| Brand |
Woodward |
| Module Type |
Actuator Driver |
| Operating Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the control system is powered down before inserting or removing the module from the rack.
- Handle the module using proper ESD (Electrostatic Discharge) prevention protocols to protect sensitive internal circuitry.
- Verify that all field wiring for LVDT/RVDT feedback is properly shielded to minimize noise interference.
- Ensure the module is securely seated in the designated MicroNet or NetCon chassis slot to maintain proper backplane communication.
- Maintain adequate ventilation in the control cabinet to ensure ambient temperatures remain within the specified -40 to 70 deg C range.
FAQ
What systems is the 5464-210 compatible with?
The 5464-210 is designed for use with Woodward MicroNet and NetCon control platforms.
Does this module support position feedback?
Yes, the module supports feedback configurations including LVDT and RVDT inputs for accurate position monitoring.
What should I do if the module reports a fault?
The 5464-210 includes onboard diagnostics. Check the system logs for specific error codes related to open circuits, short circuits, or thermal conditions as indicated by the module's diagnostic status.
